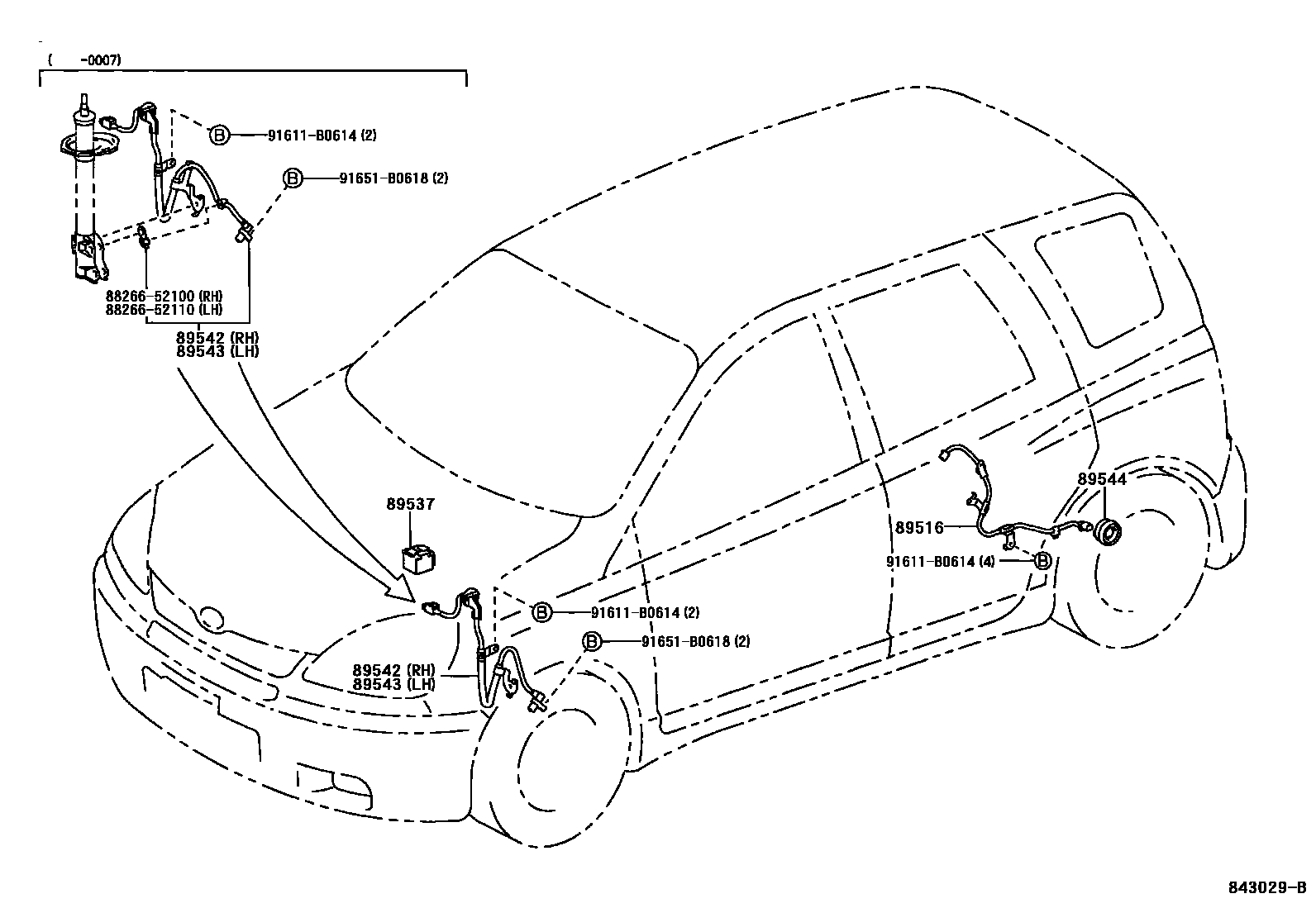

ABS & VSC

0001 1 0002 1

89516WIRE, SKID CONTROL SENSOR

main89516-52010iNCP2#,NLP2#199908-200509

RH

main89516-52020iNCP2#,NLP2#199908-200509

LH

89537RELAY, ACTIVE LAMP

main89537-52020iNCP2#199908-200211

89542SENSOR, SPEED, FRONT RH

main04895-52010iNCP2#199908-200007

main89542-52010iNCP2#,NLP2#200007-200509

89543SENSOR, SPEED, FRONT LH

main04895-52020iNCP2#199908-200007

main89543-52010iNCP2#,NLP2#200007-200509

89544SENSOR, SKID CONTROL

main89544-12010iNCP2#,NLP2#200301-200509

KOYO,*369

main89544-52010iNCP2#,NLP2#200004-200301

KOYO,*369

main89544-52010iNCP2#199908-200004

main89544-52020iNCP2#,NLP2#200004-200301

NSK,*369

sub89544-52030

main89544-52030iNCP2#,NLP2#200301-200509

NSK,*369

8826652100CLAMP, AIR SUSPENSION SENSOR, NO.1

main88266-52100

8826652110CLAMP, AIR SUSPENSION SENSOR, NO.1

main88266-52110

91611B0614

main91611-B0614

91651B0618

main91651-B0618

9 parts on this diagram · 2 diagrams in section
