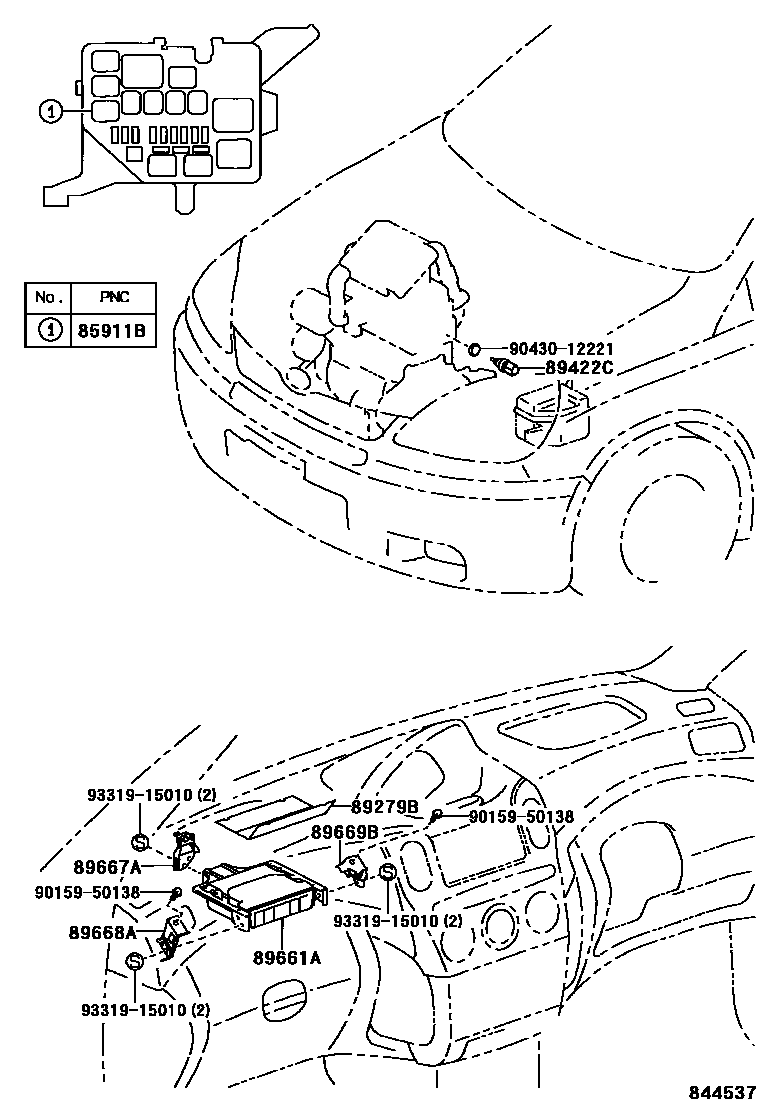

ELECTRONIC CONTROLED DIESEL (ECD)

0001 1 0002 1

85911BRELAY, COMPUTER (FOR DIESEL TURBO)

main90987-02012iNLP2#200110-200112

main90987-02022iNLP2#200112-200212

main90987-02027iNLP2#200212-200509

89279BCOVER, DIESEL ENGINE CONTROL COMPUTOR

main89279-52050iNLP2#200110-200509

89422CSENSOR, DIESEL ENGINE WATER TEMPERATURE

main89422-16010iNLP2#200110-200211

main89422-35010iNLP2#200211-200509

89661ACOMPUTER, ENGINE CONTROL

main89661-52250iNLP2#200110-200211

main89666-52210iNLP2#200211-200312

sub89666-52212

main89666-52211iNLP2#200312-200509

sub89661-52K40

89667ABRACKET, ENGINE CONTROL COMPUTER, NO.1

main89667-52030iNLP2#..RHD200110-200509

main89667-52100iNLP2#..LHD200110-200509

89668ABRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-52030iNLP2#..RHD200110-200509

main89668-52110iNLP2#..LHD200110-200509

89669BBRACKET, ENGINE CONTROL COMPUTER, NO.3

main89669-52030iNLP2#..RHD200110-200509

main89669-52060iNLP2#..LHD200110-200509

9015950138

main90159-50138

9043012221

main90430-12221

9331915010

main93319-15010

10 parts on this diagram · 2 diagrams in section
