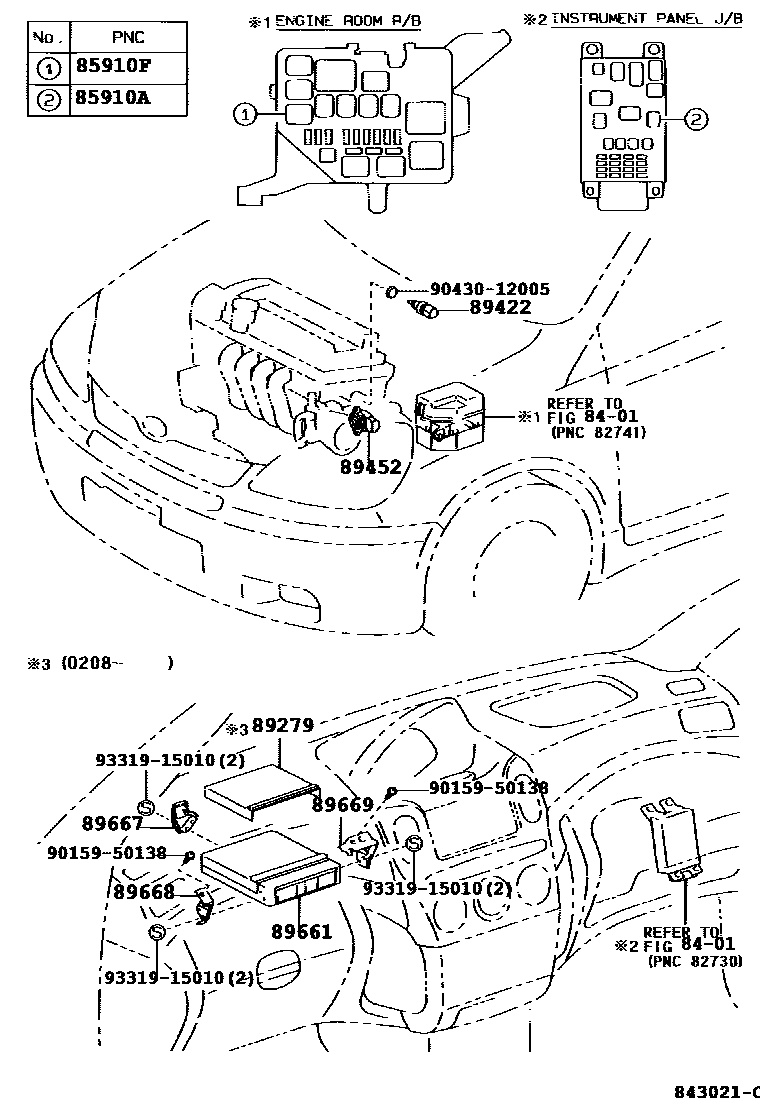

ELECTRONIC FUEL INJECTION SYSTEM

0001 1 0002 1

8401

85910ARELAY ASSY, CIRCUIT OPENING (FOR EFI)

main90987-02012iNCP2#199908-200212

main90987-02027iNCP2#200212-200509

85910FRELAY, COMPUTER (FOR EFI)

main90987-02012iNCP2#199908-200112

main90987-02022iNCP2#200112-200212

main90987-02027iNCP2#200212-200509

89279COVER, ENGINE CONTROL COMPUTER

main89279-52100iNCP2#..RHD200211-200509

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-16010iNCP2#199909-200509

MARK 89422-16010*369

main89422-16010iNCP20199908-199909

main89422-22030iNCP2#199909-200509

MARK 89422-22030*369

89452SENSOR, THROTTLE POSITION (FOR E.F.I.)

main89452-20130iNCP2#199908-200211

89661COMPUTER, ENGINE CONTROL

main89661-52280iNCP20..5F199908-200008

PART NUMBER LABEL=89661-52280

sub89661-52281

main89661-52281iNCP20..5F200008-200102

PART NUMBER LABEL=89661-52281

sub89661-52282

main89661-52282iNCP20..5F200102-200211

PART NUMBER LABEL=89661-52282

main89661-52300iNCP20..LHD..4FC199908-200008

PART NUMBER LABEL=89661-52300

sub89661-52301

main89661-52301iNCP20..LHD..4FC200008-200102

PART NUMBER LABEL=89661-52301

sub89661-52302

main89661-52302iNCP20..LHD..4FC200102-200211

PART NUMBER LABEL=89661-52302

main89661-52310iNCP20..4FC199908-200008

PART NUMBER LABEL=89661-52310

sub89661-52311

main89661-52311iNCP20..ATM200008-200102

PART NUMBER LABEL=89661-52311

sub89661-52312

main89661-52312iNCP20..ATM200102-200211

PART NUMBER LABEL=89661-52312

main89661-52320iNCP21200003-200008

PART NUMBER LABEL=89661-52320

sub89661-52321

main89661-52321iNCP21200008-200102

PART NUMBER LABEL=89661-52321

sub89661-52322

main89661-52322iNCP21200102-200211

PART NUMBER LABEL=89661-52322

main89661-52420iNCP20,22..5F199908-200008

PART NUMBER LABEL=89661-52420

sub89661-52421

main89661-52421iNCP20,22..5F200008-200102

PART NUMBER LABEL=89661-52421

sub89661-52422

main89661-52422iNCP20,22..5F200102-200211

PART NUMBER LABEL=89661-52422

main89661-52440iNCP21200003-200008

PART NUMBER LABEL=89661-52440

sub89661-52441

main89661-52441iNCP21200008-200102

PART NUMBER LABEL=89661-52441

sub89661-52442

main89661-52442iNCP21200102-200211

PART NUMBER LABEL=89661-52442

main89661-52460iNCP20..4FC199908-200008

PART NUMBER LABEL=89661-52460

sub89661-52461

main89661-52461iNCP20..ATM200008-200102

PART NUMBER LABEL=89661-52461

sub89661-52462

main89661-52462iNCP20..ATM200102-200211

PART NUMBER LABEL=89661-52462

main89661-52780iNCP22200003-200008

PART NUMBER LABEL=89661-52780

sub89661-52781

main89661-52781iNCP22200008-200102

PART NUMBER LABEL=89661-52781

sub89661-52782

main89661-52782iNCP22200102-200211

PART NUMBER LABEL=89661-52782

main89666-52170iNCP21200211-200509

PART NUMBER LABEL=89666-52170

main89666-52180iNCP20,22..5F200211-200509

PART NUMBER LABEL=89666-52180

sub89666-52181

main89666-52190iNCP20..ATM200211-200509

PART NUMBER LABEL=89666-52190

main89666-52200iNCP20..LHD..4FC200211-200509

PART NUMBER LABEL=89666-52200

main89666-52230iNCP20,22..5F200211-200509

PART NUMBER LABEL=89666-52230

sub89666-52231

main89666-52240iNCP20..ATM200211-200509

PART NUMBER LABEL=89666-52240

main89666-52260iNCP20,22..5F200211-200509

PART NUMBER LABEL=89666-52260

89667BRACKET, ENGINE CONTROL COMPUTER

main89667-52010iNCP2#..RHD199908-200509

main89667-52020iNCP2#..LHD199908-200211

main89667-52120iNCP2#..LHD200211-200509

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-52010iNCP2#..RHD199908-200211

main89668-52020iNCP2#..LHD199908-200211

main89668-52120iNCP2#..RHD200211-200509

main89668-52130iNCP2#..LHD200211-200509

89669BRACKET, ENGINE CONTROL COMPUTER, NO.3

main89669-52010iNCP2#..RHD199908-200211

main89669-52020iNCP2#..LHD199908-200211

main89669-52070iNCP2#..RHD200211-200509

main89669-52080iNCP2#..LHD200211-200509

9015950138

main90159-50138

9043012005

main90430-12005

9331915010

main93319-15010

13 parts on this diagram · 2 diagrams in section
