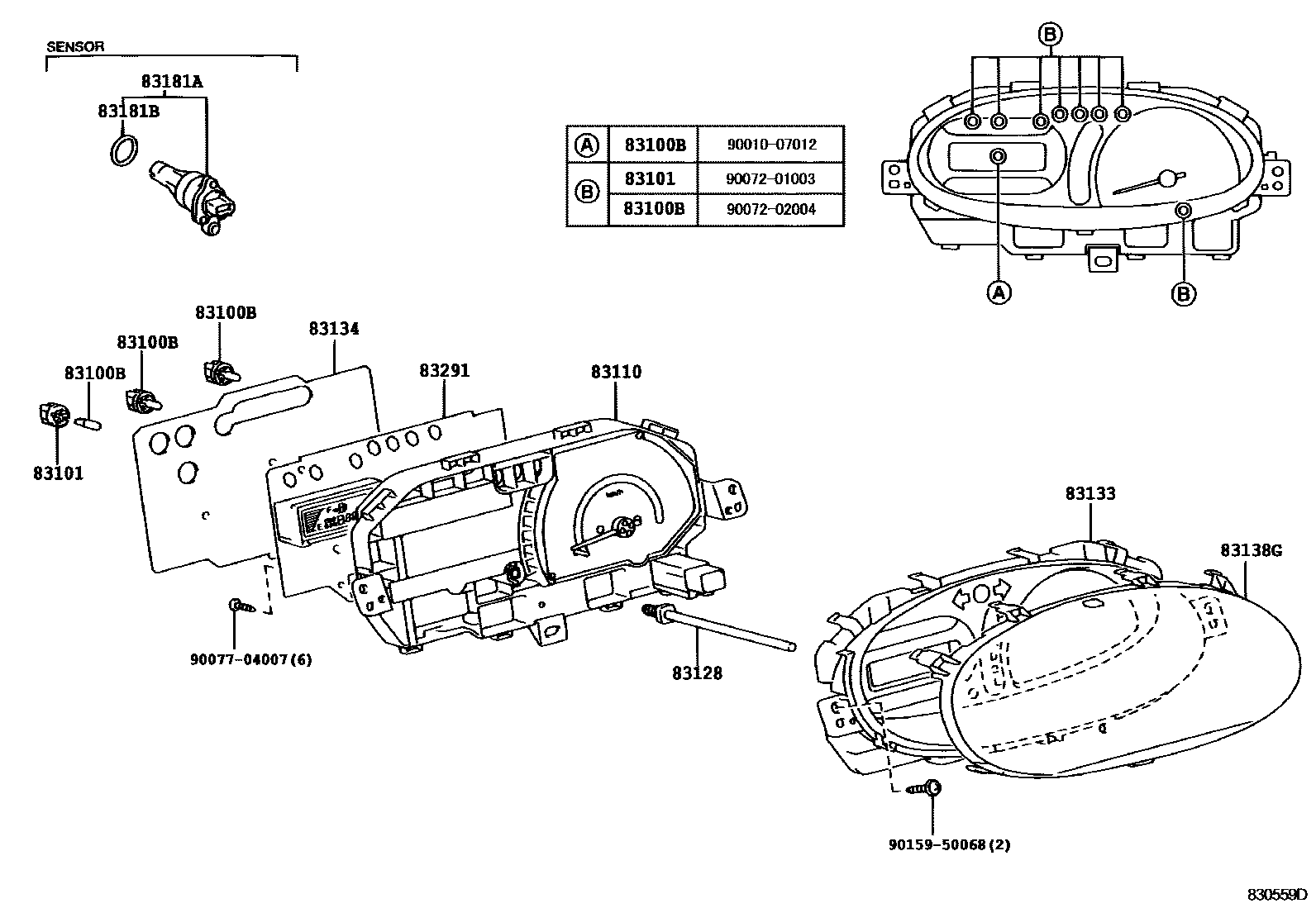

METER

0001 1ANALOGUE METER 0002 1ANALOGUE METER 0003 1DIGITAL METER 0004 1DIGITAL METER 0005 1DIGITAL METER 0006 1DIGITAL METER 0007 1CLOCK

83100BBULB, COMBINATION METER, NO.1

main90010-03022iNCP2#,NLP2#199908-200211

14V 1.4W,W(RED CAP),TYPE B:REFER TO ILLUSTRATION

main90010-03023iNCP2#,NLP2#199908-200211

14V 1.4W,W(BLUE CAP),TYPE A:REFER TO ILLUSTRATION

main90010-03067iNCP2#,NLP2#200211-200509

14V 1.12W

main90010-03070iNCP21200211-200509

main90010-07012iNCP2#,NLP2#..4FC,5F199908-200211

14V 2W,TYPE A:REFER TO ILLUSTRATION

main90072-02004iNCP2#,NLP2#..4FC,5F199908-200211

14V 1.1W,TYPE B:REFER TO ILLUSTRATION

main90099-53009iNCP2#,NLP2#199908-200211

14V0.84W W/O(SOCKET),TYPE C:REFER TO ILLUSTRATION

83101SOCKET SUB-ASSY, COMBINATION METER BULB

main83101-14040iNCP2#,NLP2#199908-200211

DIGITAL METER

main90072-01003iNLP2#200110-200211

83110SPEEDOMETER ASSY

main83221-52080iNCP2#..RHD..(4FC,5F)199908-200211

KM/H

main83221-52090iNCP2#..RHD..(4FC,5F)199908-200211

MILE/H+KM/H

main83221-52100iNCP2#..LHD199908-200211

main83221-52190iNLP2#..LHD200110-200211

main83221-52200iNLP2#..RHD200110-200211

MILE/H+KM/H

main83221-52210iNLP2#..RHD200110-200211

KM/H

83128KNOB, TRIP COUNTER

main83224-52040iNCP2#,NLP2#..4FC,5F199908-200211

83133PLATE, COMBINATION METER, NO.1

main83811-52100iNCP2#,NLP2#..RHD200211-200509

main83811-52120iNCP2#,NLP2#..LHD200211-200509

main83811-52280iNCP2#,NLP2#..RHD..(4FC,5F)199908-200211

main83811-52320iNCP2#,NLP2#..LHD199908-200211

83134COVER, COMBINATION METER, NO.1

main83821-52100iNCP2#,NLP2#..RHD200211-200509

main83821-52120iNCP2#,NLP2#..LHD200211-200509

main83821-52320iNCP2#,NLP2#..LHD199908-200211

main83821-52340iNCP2#,NLP2#..RHD..(4FC,5F)199908-200211

83138GLASS, SPEEDOMETER

main83852-52110iNCP2#,NLP2#200211-200509

83138GGLASS, COMBINATION METER

main83852-52100iNCP20..4HC200211-200509

main83852-52120iNCP20..LHD199908-199909

DIGITAL METER

main83852-52130iNCP2#..RHD199908-200211

DIGITAL METER

main83852-52250iNCP2#,NLP2#..RHD..(4FC,5F)199908-200211

main83852-52320iNCP2#,NLP2#..LHD199908-200211

main83852-52480iNCP2#..LHD199909-200211

DIGITAL METER

main83852-52700iNLP2#..LHD200110-200211

DIGITAL METER

main83852-52710iNLP2#..RHD200110-200211

DIGITAL METER

main83852-5C580iNCP2#..RHD..(4FC,5F)200211-200509

main83852-5C600iNCP2#..LHD200211-200509

main83852-5C610iNLP2#..RHD200211-200509

main83852-5C630iNLP2#..LHD200211-200509

83181ASENSOR, SPEEDOMETER

main83181-12020iNCP2#,NLP2#199908-200211

83181BRING, O (FOR SPEEDOMETER SENSOR)

main96711-24030iNCP2#,NLP2#199908-200211

83291COMPUTER, COMBINATION METER

main83291-52180iNCP2#..RHD..(4FC,5F)199908-200211

ANALOGUE METER,KM/H

sub83291-52181

main83291-52190iNCP2#..RHD..(4FC,5F)199908-200211

ANALOGUE METER,MILE/H+KM/H

sub83291-52191

main83291-52200iNCP2#..LHD199908-200211

ANALOGUE METER,KM/H

sub83291-52201

main83291-52220iNCP2#..LHD199908-200211

DIGITAL METER W/TACHO,KM/H

main83291-52230iNCP2#..RHD..(4FC,5F)199908-200211

DIGITAL METER W/TACHO,MILE/H+KM/H

main83291-52240iNCP2#..RHD..(4FC,5F)199908-200211

DIGITAL METER W/TACHO,KM/H

main83291-52250iNLP2#..LHD200110-200211

ANALOGUE METER,KM/H

sub83291-52251

main83291-52290iNCP20..4HC200008-200211

main83291-52360iNLP2#..LHD200110-200211

DIGITAL METER W/TACHO,KM/H

main83291-52370iNLP2#..RHD200110-200211

ANALOGUE METER,MILE/H+KM/H

sub83291-52371

main83291-52380iNLP2#..RHD200110-200211

ANALOGUE METER,KM/H

sub83291-52381

main83291-52480iNLP2#..RHD200110-200211

DIGITAL METER W/TACHO,MILE/H+KM/H

main83291-52500iNLP2#..RHD200110-200211

DIGITAL METER W/TACHO,KM/H

main83291-52740iNCP2#..RHD..(4FC,5F)200211-200509

DIGITAL METER,MPH & KM/H

main83291-52750iNCP2#..RHD..(4FC,5F)200211-200509

DIGITAL METER,KM/H

main83291-52760iNCP2#..LHD200211-200509

DIGITAL METER,KM/H

main83291-52770iNLP2#..RHD200211-200509

DIGITAL METER,MPH & KM/H

main83291-52780iNLP2#..RHD200211-200509

DIGITAL METER,KM/H

main83291-52790iNLP2#..LHD200211-200509

DIGITAL METER,KM/H

main83291-52800iNCP20..4HC200211-200509

9007704007

main90077-04007

9015950068

main90159-50068

13 parts on this diagram · 7 diagrams in section
