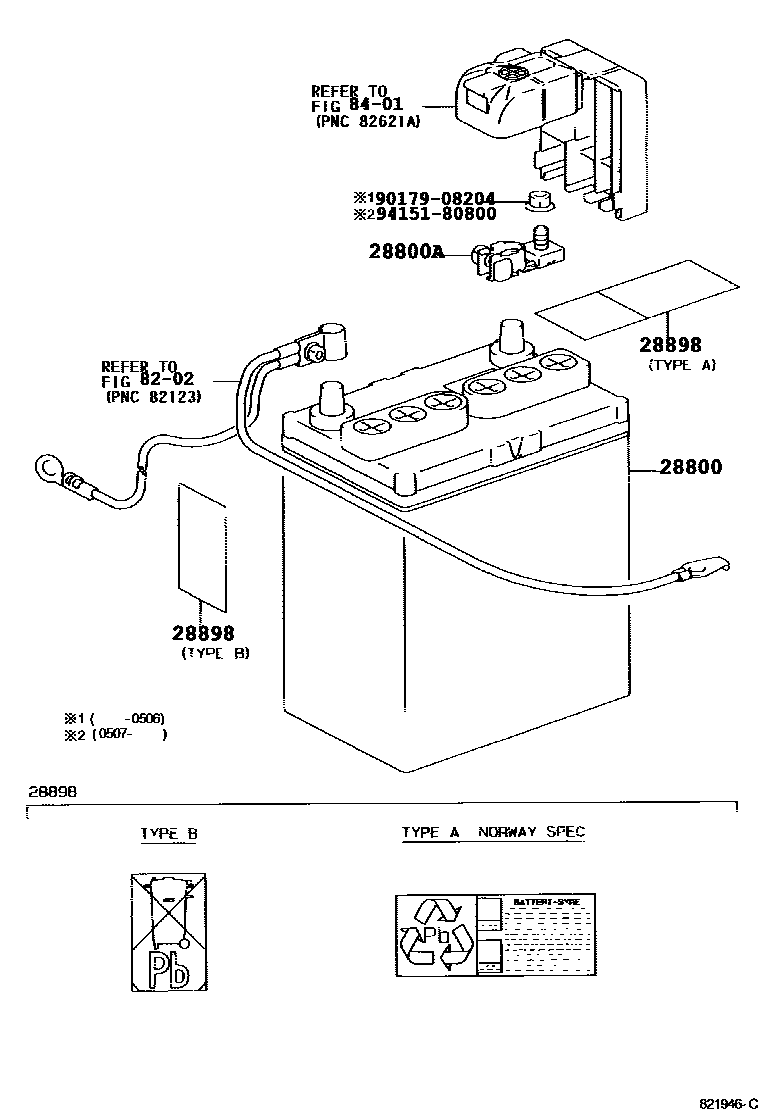

BATTERY & BATTERY CABLE

28800BATTERY

main28800-15022i1NDTV..NLP2#200110-200509

55D23R,YUASA

sub28800-15021

main28800-21070i1NZFE,2NZFE..NCP2#..5F199908-200509

34B19R(S),FURUKAWA

main28800-21100i1NZFE,2NZFE..NCP2#199908-200509

46B24R(S),PANASONIC

main28800-46160i1NDTV..NLP2#200110-200509

55D23R,FURUKAWA

sub28800-15021

main28800-54231i1NDTV..NLP2#..LHD200211-200509

80D26R

sub28800-67131

main28800-67092i1NDTV..NLP2#..LHD200110-200211

85D26R,YUASA

sub28800-64132

main28800-67130i1NDTV..NLP2#..LHD200110-200211

85D26R,GS

sub28800-64132

main28800-74231i1NZFE,2NZFE..NCP2#199908-200509

46B24R(S),FURUKAWA

sub28800-47090

28800ATERMINAL, BATTERY POSITIVE

main90982-05053i1N#,2NZFE..NCP2#,NLP2#199908-200509

28898PLATE, BATTERY

main28898-46010i1N#,2NZFE..NCP2#,NLP2#..LHD199908-200509

TYPE A:REFER TO ILLUSTRATION

main28898-46020i1N#,2NZFE..NCP2#,NLP2#199908-200509

TYPE B:REFER TO ILLUSTRATION

8202

8401

9017908204

main90179-08204

9415180800

main94151-80800

7 parts on this diagram · 1 diagram in section
