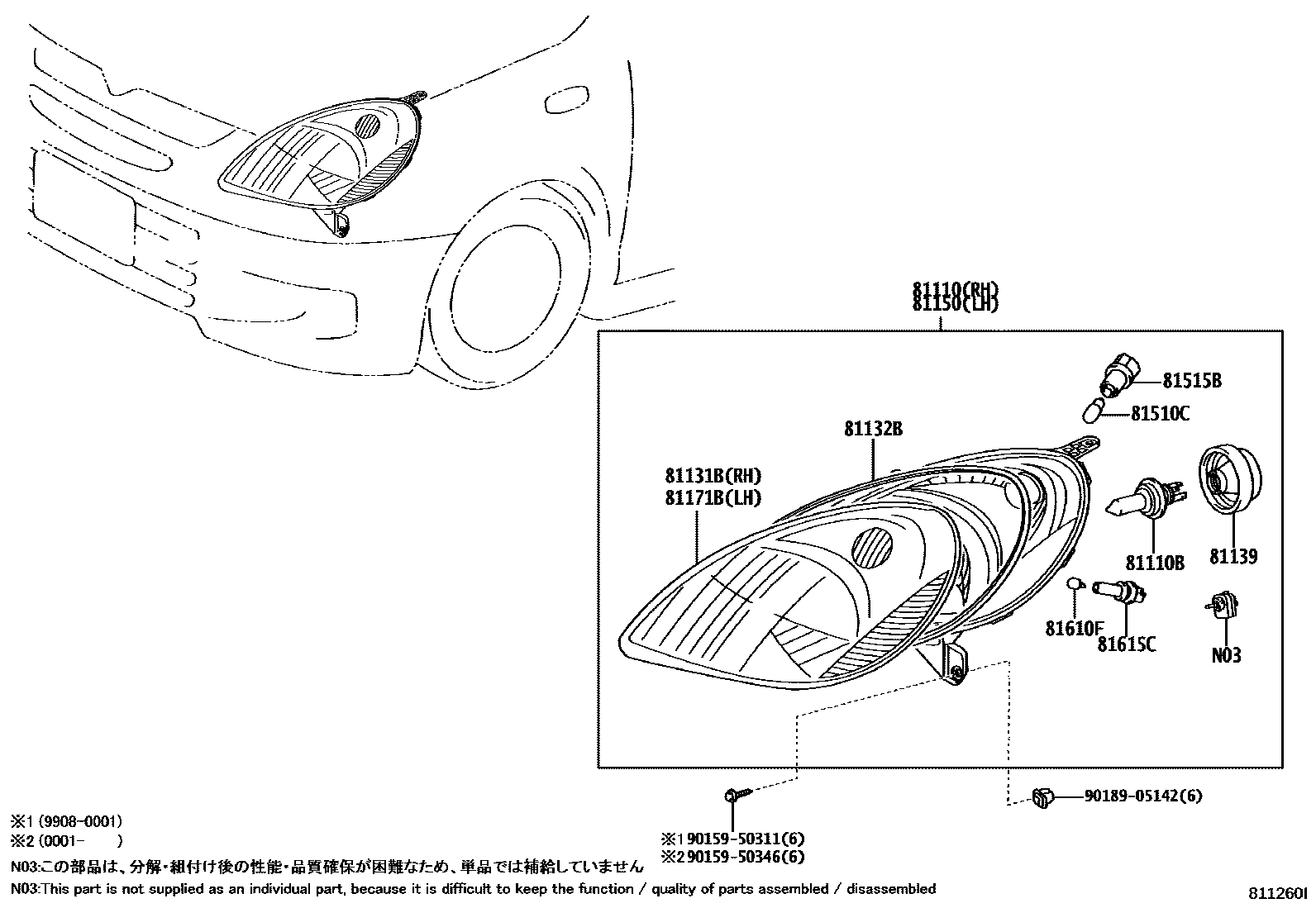

HEADLAMP

0001 1 0002 1

81110HEADLAMP ASSY, RH

main81110-52070iNCP2#..RHD199908-200110

sub81110-52071

main81110-52070iNCP2#..LHD200005-200110

LH TRAFFIC SPEC

sub81110-52071

main81110-52071iNCP2#,NLP2#..LHD200110-200211

LH TRAFFIC SPEC

main81110-52080iNCP2#..RHD200005-200110

RH TRAFFIC SPEC

sub81110-52081

main81110-52080iNCP2#..LHD199908-200110

sub81110-52081

main81110-52081iNCP2#,NLP2#..RHD200110-200211

RH TRAFFIC SPEC

main81110-52390iNCP2#,NLP2#..RHD200211-200509

RH TRAFFIC SPEC

main81110-52400iNCP2#,NLP2#..LHD200211-200509

LH TRAFFIC SPEC

81110BBULB(FOR HEADLAMP, NO.1)

main90981-13058iNCP2#,NLP2#200211-200509

12V 60/55W,HALOGEN

main90981-22002iNCP2#,NLP2#199908-200211

12V 60/55W,*HAL *WH

sub90981-13055

81131BHEAD LAMP LENS, RH

main81131-52060iNCP2#,NLP2#..RHD199908-200211

main81131-52060iNCP2#,NLP2#..LHD200005-200211

LH TRAFFIC SPEC

main81131-52080iNCP2#,NLP2#..LHD199908-200211

main81131-52080iNCP2#,NLP2#..RHD200005-200211

RH TRAFFIC SPEC

main81131-52380iNCP2#,NLP2#..RHD200211-200509

LH TRAFFIC SPEC

main81131-52390iNCP2#,NLP2#..LHD200211-200509

RH TRAFFIC SPEC

81132BGASKET, HEADLAMP LENS

main81132-52060iNCP2#,NLP2#199908-200211

sub81132-30A60

main81132-52380iNCP2#,NLP2#200211-200509

81139COVER, HEADLAMP SOCKET

main81139-1E340iNCP2#,NLP2#200211-200509

main81139-52060iNCP2#,NLP2#199908-200211

81150HEADLAMP ASSY, LH

main81150-52070iNCP2#..LHD200005-200110

LH TRAFFIC SPEC

sub81150-52071

main81150-52070iNCP2#..RHD199908-200110

sub81150-52071

main81150-52071iNCP2#,NLP2#..LHD200110-200211

LH TRAFFIC SPEC

main81150-52080iNCP2#..LHD199908-200110

sub81150-52081

main81150-52080iNCP2#..RHD200005-200110

RH TRAFFIC SPEC

sub81150-52081

main81150-52081iNCP2#,NLP2#..LHD200110-200211

RH TRAFFIC SPEC

main81150-52390iNCP2#,NLP2#..LHD200211-200509

RH TRAFFIC SPEC

main81150-52400iNCP2#,NLP2#..RHD200211-200509

LH TRAFFIC SPEC

81171BHEAD LAMP LENS, LH

main81171-52060iNCP2#,NLP2#..RHD199908-200211

main81171-52060iNCP2#,NLP2#..LHD200005-200211

LH TRAFFIC SPEC

main81171-52080iNCP2#,NLP2#..LHD199908-200211

main81171-52080iNCP2#,NLP2#..RHD200005-200211

RH TRAFFIC SPEC

main81171-52380iNCP2#,NLP2#..RHD200211-200509

LH TRAFFIC SPEC

main81171-52390iNCP2#,NLP2#..RHD200211-200509

RH TRAFFIC SPEC

81510CBULB (FOR FRONT TURN SIGNAL LAMP)

main90981-13050iNCP2#,NLP2#199908-200211

12V 21W

sub90981-13043

main90981-15011iNCP2#,NLP2#200211-200509

12V 21W,AMBER

81515BSOCKET, FRONT TURN SIGNAL LAMP

main90075-60028iNCP2#,NLP2#200211-200509

main90075-99128iNCP2#,NLP2#199908-200211

81610FBULB(FOR CLEARANCE LAMP)

main99132-12050iNCP2#,NLP2#199908-200509

12V 5W

81615CSOCKET & WIRE, CLEARANCE LAMP

main81138-52060iNCP2#,NLP2#199908-200509

9015950311

main90159-50311

9015950346

main90159-50346

9018905142

main90189-05142

14 parts on this diagram · 2 diagrams in section
