SIDE MOULDING
5302
53847AEXTENSION, FRONT WHEEL OPENING OR ARCH MOULDING, RH
sub53847-52030
UNPAINTED,MEDIUM GRAY,068 ,1D2 ,1E7 ,209 ,3P0 ,583 ,6R4 ,774 ,8M6
WHITE,068
GRAY ME.,1D2
SILVER M.M.,1E7
BLACK MC.,209
SUPER RED 5,3P0
CHAMPAGNE ME.,583
DARK GREEN MC.,6R4
AQUA M.M.,774
BLUE MC.,8M6
53847BCLIP, FRONT WHEEL OPENING EXTENSOION
53848AEXTENSION, FRONT WHEEL OPENING OR ARCH MOULDING, LH
sub53848-52030
UNPAINTED,MEDIUM GRAY,068 ,1D2 ,1E7 ,209 ,3P0 ,583 ,6R4 ,774 ,8M6
WHITE,068
GRAY ME.,1D2
SILVER M.M.,1E7
BLACK MC.,209
SUPER RED 5,3P0
CHAMPAGNE ME.,583
DARK GREEN MC.,6R4
AQUA M.M.,774
BLUE MC.,8M6
53853PAD, FRONT WHEEL OPENING EXTENSION, NO.3
LT. GRAY,068 ,199 ,209 ,3N8 ,3P0 ,583 ,6R4 ,6S2 ,8M6
LT. GRAY,040 ,199 ,209 ,3N8 ,3P0 ,583 ,6R4 ,6S2 ,8M6
LT. GRAY,199 ,209 ,3N8 ,3P0 ,583 ,6R4 ,6S2 ,8M6
LT. GRAY,068 ,1D2 ,1E7 ,209 ,3P0 ,583 ,6R4 ,774 ,8M6
BLACK,209 ,3P0 ,6R4 ,8M6
BLACK,209 ,3N8 ,3P0 ,6R4 ,8M6
65631APLATE, REAR WHEEL HOUSE, FRONT RH
65632APLATE, REAR WHEEL HOUSE, FRONT LH
75586CRETAINER, FRONT WHEEL OPENING EXTENSOION
75745MOULDING, REAR DOOR OUTSIDE, LOWER RH
UNPAINTED,MEDIUM GRAY,068 ,1D2 ,1E7 ,209 ,3P0 ,583 ,6R4 ,774 ,8M6
WHITE,068
GRAY ME.,1D2
SILVER M.M.,1E7
BLACK MC.,209
SUPER RED 5,3P0
CHAMPAGNE ME.,583
DARK GREEN MC.,6R4
AQUA M.M.,774
BLUE MC.,8M6
75746MOULDING, REAR DOOR OUTSIDE, LOWER LH
UNPAINTED,MEDIUM GRAY,068 ,1D2 ,1E7 ,209 ,3P0 ,583 ,6R4 ,774 ,8M6
WHITE,068
GRAY ME.,1D2
SILVER M.M.,1E7
BLACK MC.,209
SUPER RED 5,3P0
CHAMPAGNE ME.,583
DARK GREEN MC.,6R4
AQUA M.M.,774
BLUE MC.,8M6
75767APAD, REAR DOOR MOULDING, NO.1
LT. GRAY,068 ,199 ,209 ,3N8 ,3P0 ,583 ,6R4 ,6S2 ,8M6
LT. GRAY,040 ,199 ,209 ,3N8 ,3P0 ,583 ,6R4 ,6S2 ,8M6
LT. GRAY,199 ,209 ,3N8 ,3P0 ,583 ,6R4 ,6S2 ,8M6
LT. GRAY,068 ,1D2 ,1E7 ,209 ,3P0 ,583 ,6R4 ,774 ,8M6
BLACK,209 ,3N8 ,3P0 ,6R4 ,8M6
BLACK,209 ,3P0 ,6R4 ,8M6
75855AMOULDING, ROCKER PANEL, REAR RH
UNPAINTED,MEDIUM GRAY,068 ,1D2 ,1E7 ,209 ,3P0 ,583 ,6R4 ,774 ,8M6
75856AMOULDING, ROCKER PANEL, REAR LH
UNPAINTED,MEDIUM GRAY,068 ,1D2 ,1E7 ,209 ,3P0 ,583 ,6R4 ,774 ,8M6
75867ACLIP, ROCKER PANEL MOULDING
76923BRETAINER, SIDE MUDGUARD
76925FPROTECTOR, SIDE MUDGUARD, RH
LT. GRAY,068 ,199 ,209 ,3N8 ,3P0 ,583 ,6R4 ,6S2 ,8M6
LT. GRAY,068 ,1D2 ,1E7 ,209 ,3P0 ,583 ,6R4 ,774 ,8M6
LT. GRAY,040 ,199 ,209 ,3N8 ,3P0 ,583 ,6R4 ,6S2 ,8M6
LT. GRAY,199 ,209 ,3N8 ,3P0 ,583 ,6R4 ,6S2 ,8M6
BLACK,209 ,3N8 ,3P0 ,6R4 ,8M6
BLACK,209 ,3P0 ,6R4 ,8M6
76926FPROTECTOR, SIDE MUDGUARD, LH
LT. GRAY,068 ,1D2 ,1E7 ,209 ,3P0 ,583 ,6R4 ,774 ,8M6
LT. GRAY,040 ,199 ,209 ,3N8 ,3P0 ,583 ,6R4 ,6S2 ,8M6
LT. GRAY,199 ,209 ,3N8 ,3P0 ,583 ,6R4 ,6S2 ,8M6
LT. GRAY,068 ,199 ,209 ,3N8 ,3P0 ,583 ,6R4 ,6S2 ,8M6
BLACK,209 ,3P0 ,6R4 ,8M6
BLACK,209 ,3N8 ,3P0 ,6R4 ,8M6
9015960444
main90159-60444
9015960498
main90159-60498
9026904054
main90269-04054

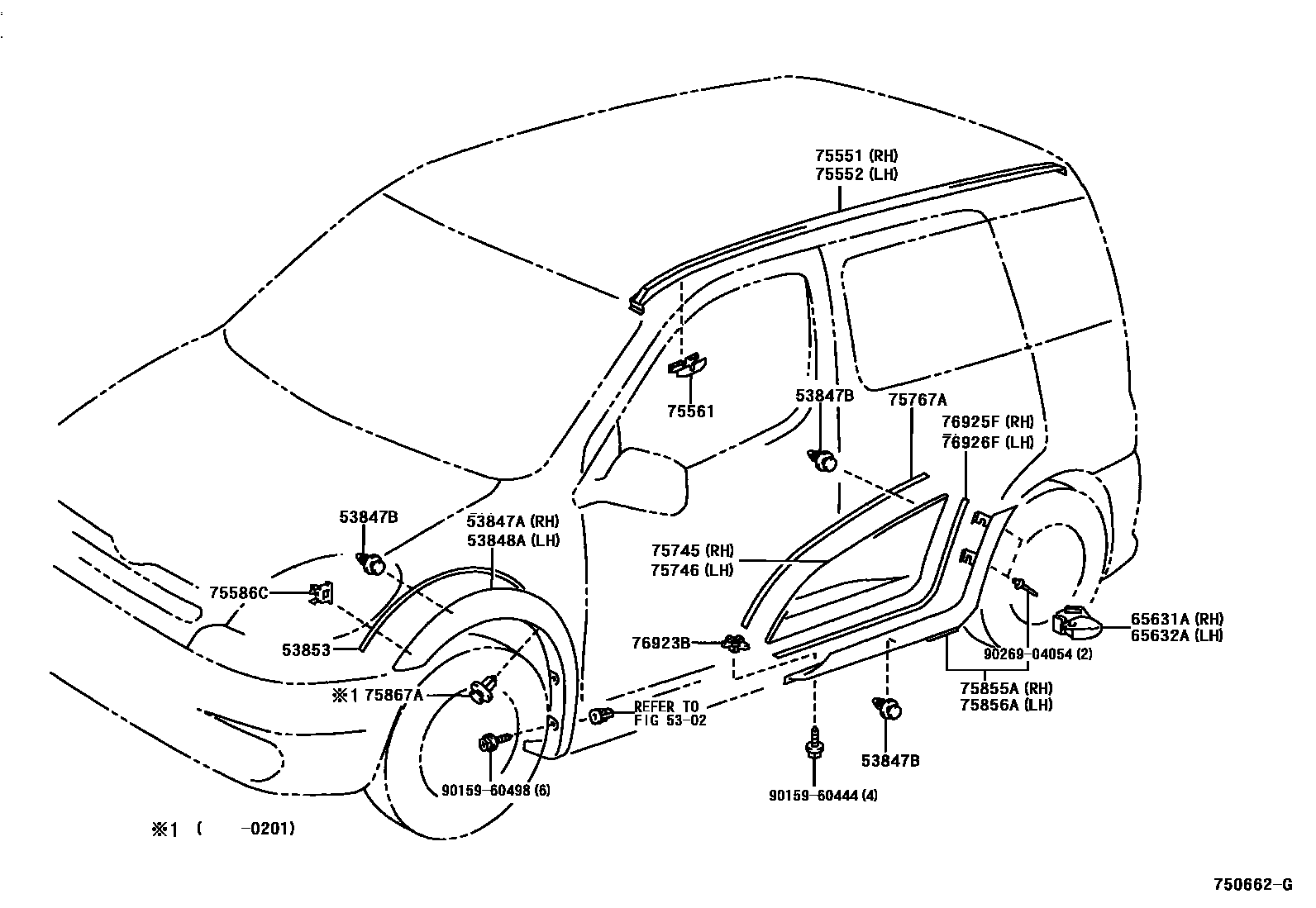

23 parts on this diagram · 1 diagram in section
