DECK BOARD & DECK TRIM COVER

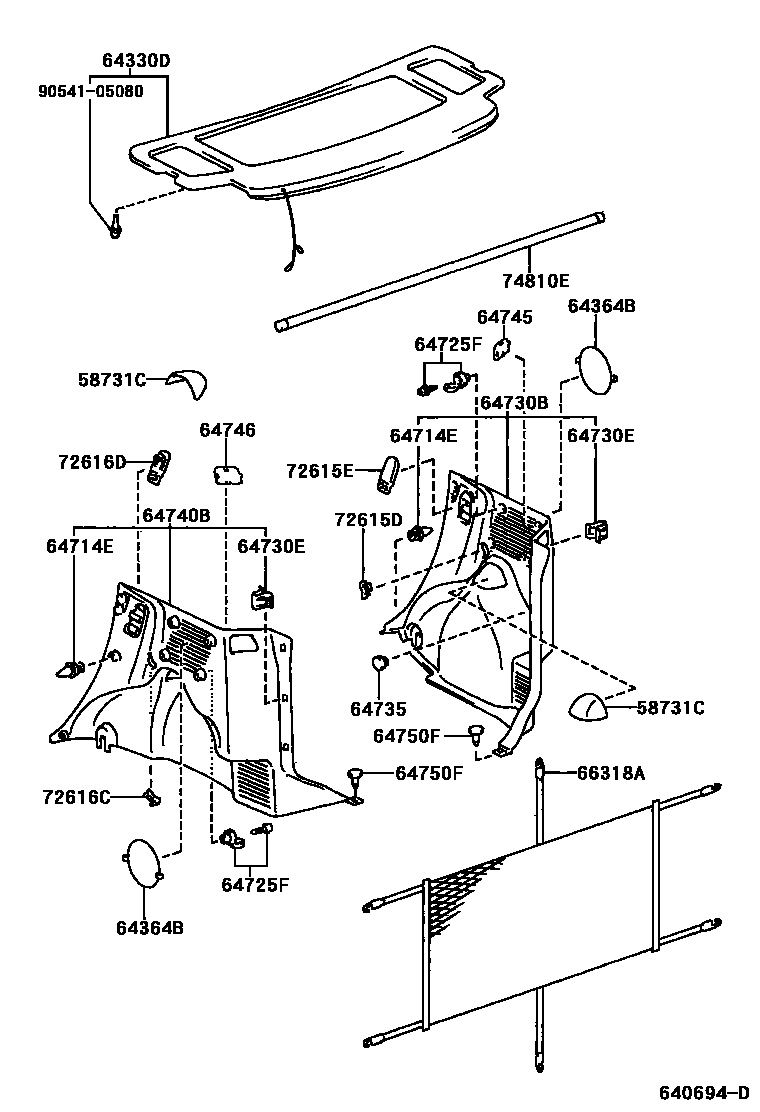

Parts diagram
58731CCAP, REAR ABSORBER
main58731-52040-B0i199908-200211
MD.GRAY,TRIM9#
sub58731-52040
main58731-52040-B1i200211-200509
DK.GRAY,TRIM1#
sub58731-52040
main58731-52040-G0i199908-200211
MIST GREEN,TRIM7#
sub58731-52040
64330DPANEL ASSY, PACKAGE TRAY TRIM
main64330-52030-B1i199908-200112
MEDIUM GRAY,TRIM9#
sub64330-52031
main64330-52030-G1i199908-200112
MIST GREEN,TRIM7#
sub64330-52031
main64330-52031-B1i200112-200205
MEDIUM GRAY,TRIM9#
main64330-52031-G1i200112-200205
MIST GREEN,TRIM7#
main64330-52200-B1i200205-200211
DARK GRAY,TRIM7#,9#
main64330-52220-B0i200211-200509
DARK GRAY,TRIM1#
64364BCOVER, REAR SPEAKER GRILLE, NO.1
main64364-52010i199908-200509
64714ECLIP(FOR DECK TRIM SIDE COVER)
main90467-10161i199908-200509
64725FHOOK, LUGGAGE COMPARTMENT TRIM, NO.1
main64725-52010-B0i199908-200211
MD.GRAY,TRIM9#
sub64725-52010
main64725-52010-B1i200211-200509
DK.GRAY,TRIM1#
sub64725-52010
main64725-52010-G0i199908-200211
MIST GREEN,TRIM7#
sub64725-52010
64730BPANEL ASSY, DECK TRIM SIDE, RH
main64730-52130-B0i199908-200211
MD.GRAY,TRIM9#
main64730-52130-B1i200211-200509
DK.GRAY,TRIM1#
main64730-52130-G0i199908-200211
MIST GREEN,TRIM7#
64730ECLIP(FOR DECK TRIM SIDE BOARD)
main90468-05084i199908-200509
64735COVER, DECK TRIM SIDE SERVICE HOLE
main64735-13050-B1i199908-200211
MD.GRAY,TRIM9#
sub64735-13050
main64735-13050-B2i200211-200509
DK.GRAY,TRIM1#
sub64735-13050
main64735-13050-G0i199908-200211
MIST GREEN,TRIM7#
sub64735-13050
64740BBOARD, DECK TRIM SIDE, LH
main64740-52130-B0i199908-200211
MD.GRAY,TRIM9#
main64740-52130-B1i200211-200509
DK.GRAY,TRIM1#
main64740-52130-G0i199908-200211
MIST GREEN,TRIM7#
64745COVER, REAR COMBINATION LAMP SERVICE, RH
main64745-52020-B0i199908-200211
MD.GRAY,TRIM9#
sub64745-52020
main64745-52020-B1i200211-200509
DK.GRAY,TRIM1#
sub64745-52020
main64745-52020-G0i199908-200211
MIST GREEN,TRIM7#
sub64745-52020
64746COVER, REAR COMBINATION LAMP SERVICE, LH
main64746-52020-B0i199908-200211
MD.GRAY,TRIM9#
sub64746-52020
main64746-52020-B1i200211-200509
DK.GRAY,TRIM1#
sub64746-52020
main64746-52020-G0i199908-200211
MIST GREEN,TRIM7#
sub64746-52020
64750FCLIP(FOR DECK SIDE TRIM PANEL)
main90467-06017-B6i199908-200211
MD.GRAY,TRIM7#,9#
sub90467-06017
main90467-06017-B7i200211-200509
DK.GRAY,TRIM1#
sub90467-06017
66318ABAND, ROPE HOOK
main66318-52010-C0i199908-200211
BLACK,TRIM7#,9#
main66318-52010-C0i200211-200509
BLACK,TRIM1#
72615DCOVER, REAR SEATBACK LOCK STRIKER, RH
main72615-52020-B0i199908-200211
MD.GRAY,TRIM9#
main72615-52020-B1i200211-200509
DK.GRAY,TRIM1#
main72615-52020-G0i199908-200211
MIST GREEN,TRIM7#
72615ECOVER, REAR SEATBACK LOCK STRIKER, RH
main72615-52030-B0i199908-200211
MD.GRAY,TRIM9#
sub72615-52030
main72615-52030-B1i200211-200509
DK.GRAY,TRIM1#
sub72615-52030
main72615-52030-G0i199908-200211
MIST GREEN,TRIM7#
sub72615-52030
main72615-52050-B0i200211-200509
DK.GRAY,TRIM1#
72616CCOVER, REAR SEATBACK LOCK STRIKER, LH
main72616-52010-B0i199908-200211
MD.GRAY,TRIM9#
main72616-52010-B1i200211-200509
DK.GRAY,TRIM1#
main72616-52010-G0i199908-200211
MIST GREEN,TRIM7#
72616DCOVER, REAR SEATBACK LOCK STRIKER, LH
main72615-52030-B0i199908-200211
MD.GRAY,TRIM9#
sub72615-52030
main72615-52030-B1i200211-200509
DK.GRAY,TRIM1#
sub72615-52030
main72615-52030-G0i199908-200211
MIST GREEN,TRIM7#
sub72615-52030
main72615-52050-B0i200211-200509
DK.GRAY,TRIM1#
74810EBAR ASSY, SEPARATOR
main74810-52010-B0i199908-200211
MD.GRAY,TRIM7#,9#
sub74810-52010
main74810-52010-B1i200211-200509
DK.GRAY,TRIM1#
sub74810-52010
9054105080
main90541-05080

19 parts on this diagram · 1 diagram in section
