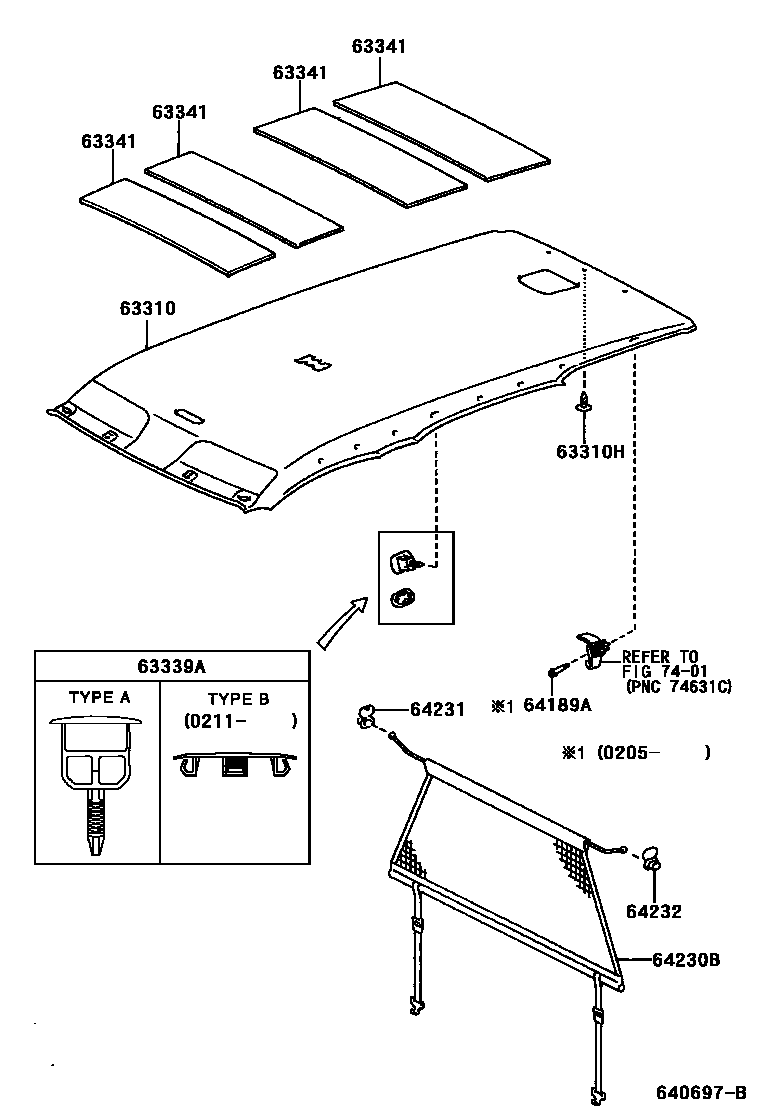

ROOF HEADLINING & SILENCER PAD
63310HEADLINING ASSY, ROOF
W(LONG ASSIST GRIP & LUGGAGE ROOM LAMP),LT. GRAY,TRIM7#,9#
W(LONG ASSIST GRIP & LUGGAGE ROOM LAMP),LT. GRAY,TRIM1#
W(NET),LT. GRAY,TRIM7#,9#
W(NET),LT. GRAY,TRIM7#,9#
W(NET),LT. GRAY,TRIM1#
LT. GRAY,TRIM7#,9#
W(LUGGAGE ROOM LAMP),LT. GRAY,TRIM7#,9#
W(LUGGAGE ROOM LAMP & NET),LT. GRAY,TRIM7#,9#
W(LUGGAGE ROOM LAMP & NET),LT. GRAY,TRIM1#
W(LUGGAGE ROOM LAMP & NET),LT. GRAY,TRIM7#,9#
W(LONG ASSIST GRIP),LT. GRAY,TRIM7#,9#
W(LONG ASSIST GRIP & NET),LT. GRAY,TRIM1#
W(LONG ASSIST GRIP & NET),LT. GRAY,TRIM7#,9#
W(LONG ASSIST GRIP & LUGGAGE ROOM LAMP & NET),LT. GRAY,TRIM1#
W(LONG ASSIST GRIP & LUGGAGE ROOM LAMP & NET),LT. GRAY,TRIM7#,9#
W(MOON ROOF),LT. GRAY,TRIM7#,9#
W(MOON ROOF & NET),LT. GRAY,TRIM7#,9#
W(MOON ROOF),LT. GRAY,TRIM1#
W(3 POINT REAR CENTER SEAT BELT & MOON ROOF),LT. GRAY,TRIM1#
W(3 POINT REAR CENTER SEAT BELT & LUGGAGE ROOM LAMP),LT. GRAY,TRIM1#
W(3 POINT REAR CENTER SEAT BELT),LT. GRAY,TRIM1#
63310HCLIP(FOR ROOF HEADLINING)
LT.GRAY,TRIM7#,9#
W(MOON ROOF & NET),LT.GRAY,TRIM7#,9#
LT.GRAY,TRIM1#
W(MOON ROOF & NET),LT.GRAY,TRIM1#
63339ACOVER, ROOF HEADLINING SERVICE HOLE
LT.GRAY,TRIM1#,TYPE A:REFER ILLUST.
TYPE A:REFER TO ILLUSTRATION & W(LONG ASSIST GRIP),LT.GRAY,TRIM1#
TYPE A:REFER TO ILLUSTRATION & W(MOON ROOF),LT.GRAY,TRIM1#,TYPE A:REFER ILLUST.
LT.GRAY,TRIM7#,9#
W(MOON ROOF) & W/O(NET),LT.GRAY,TRIM7#,9#
W(COAT HOOK),LT.GRAY,TRIM7#,9#
W(MOON ROOF & LUGGAGE ROOM LAMP),LT.GRAY,TRIM7#,9#
TYPE B:REFER TO ILLUSTRATION,LT.GRAY,TRIM1#
63341PAD, ROOF SILENCER, NO.1
200 X 800
W(LUGGAGE ROOM LAMP),275 X 820
275 X 820
64189ABOLT, REAR BODY MOUNTING
W(MOON ROOF)
64230BNET ASSY, ROOM PARTITION
64231HOOK, ROOM PARTITION NET, FRONT RH
LT.GRAY,TRIM7#,9#
LT.GRAY,TRIM1#
64232HOOK, ROOM PARTITION NET, FRONT LH
LT.GRAY,TRIM1#
LT.GRAY,TRIM7#,9#
7401
9 parts on this diagram · 3 diagrams in section
