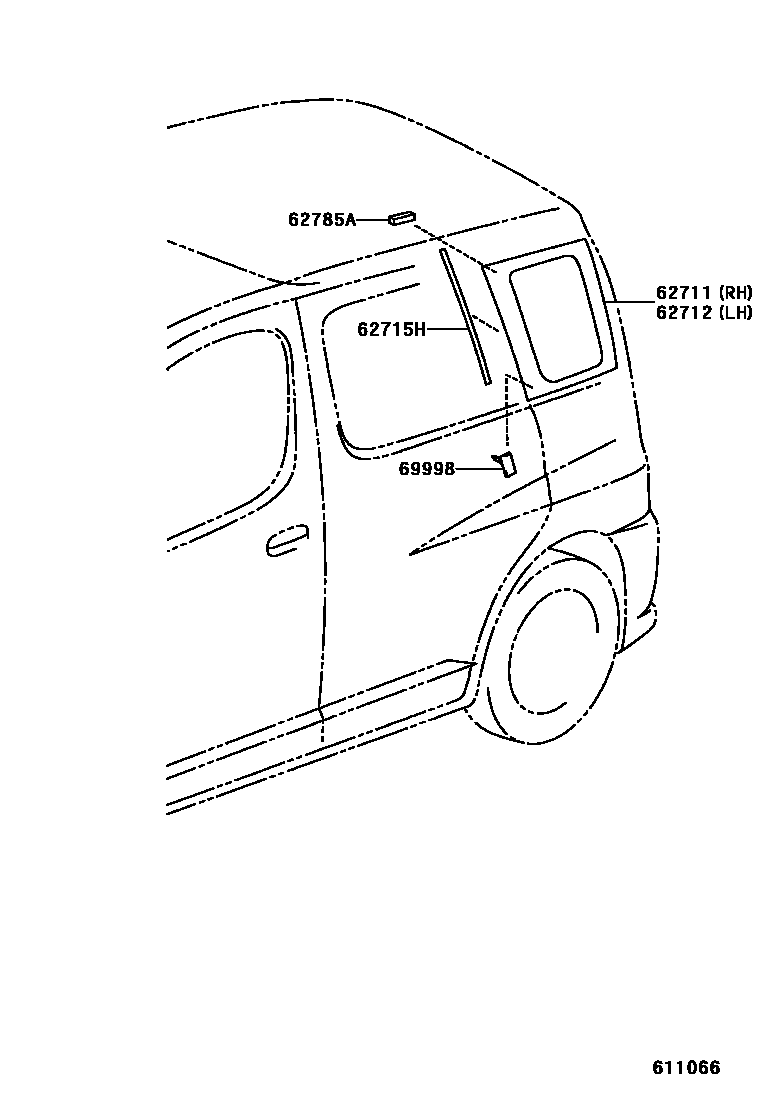

QUARTER WINDOW

62711GLASS, QUARTER WINDOW, RH

main62711-52030iNCP2#,NLP2#199908-200305

*TEM,T=2.8,GREEN

main62711-52040iNCP2#,NLP2#200305-200509

*UVCT,T=2.8,GREEN

62712GLASS, QUARTER WINDOW, LH

main62712-52030iNCP2#,NLP2#199908-200305

*TEM,T=2.8,GREEN

main62712-52040iNCP2#,NLP2#200305-200509

*UVCT,T=2.8,GREEN

62715HDAM, QUARTER WINDOW GLASS ADHESIVE, RH

main62715-52010iNCP2#,NLP2#199908-200509

62785ASPACER, QUARTER WINDOW GLASS

main62785-16030iNCP2#,NLP2#199908-200509

69998PIN, QUARTER WINDOW GUIDE PIECE, NO.1

main69998-52010iNCP2#,NLP2#199908-200509

5 parts on this diagram · 1 diagram in section
