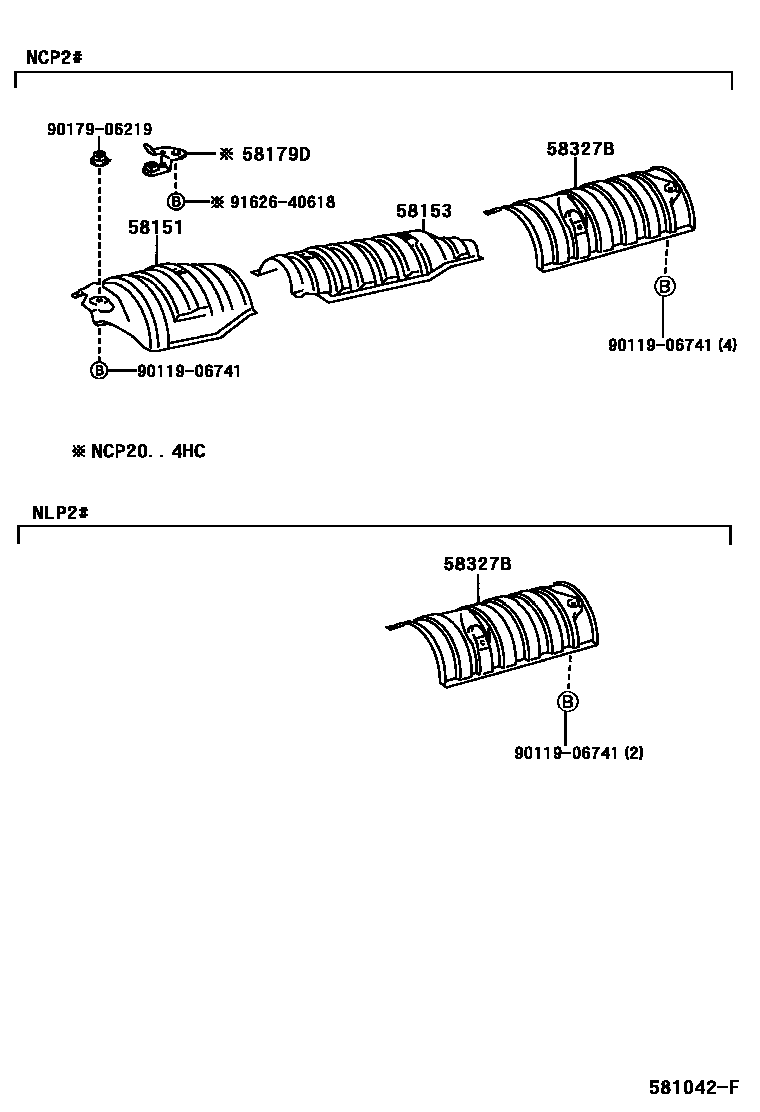

FLOOR INSULATOR

0001 1 0002 1

58151INSULATOR, FRONT FLOOR HEAT, NO.1

main58151-52010iNCP2#¥4,300199908-200211

main58151-52010iNCP2#¥4,300200211-200509

EMISSION CONTROL

main58151-52030iNCP2#¥4,280200211-200509

58153INSULATOR, FRONT FLOOR HEAT, NO.2

main58153-52011iNCP2#¥5,200199908-200211

main58153-52011iNCP2#..4FC,5F¥5,200200211-200304

EMISSION CONTROL

main58153-52050iNCP2#¥5,200200211-200509

58179DBRACKET, CLAMP FLOOR

main58179-52010iNCP20..4HC¥340200008-200211

58327BINSULATOR, MAIN MUFFLER HEAT

main58327-52050iNCP2#,NLP2#¥3,860199908-200509

9011906741

main90119-06741¥80

9017906219

main90179-06219¥70

9162640618

main91626-40618¥90

7 parts on this diagram · 2 diagrams in section
