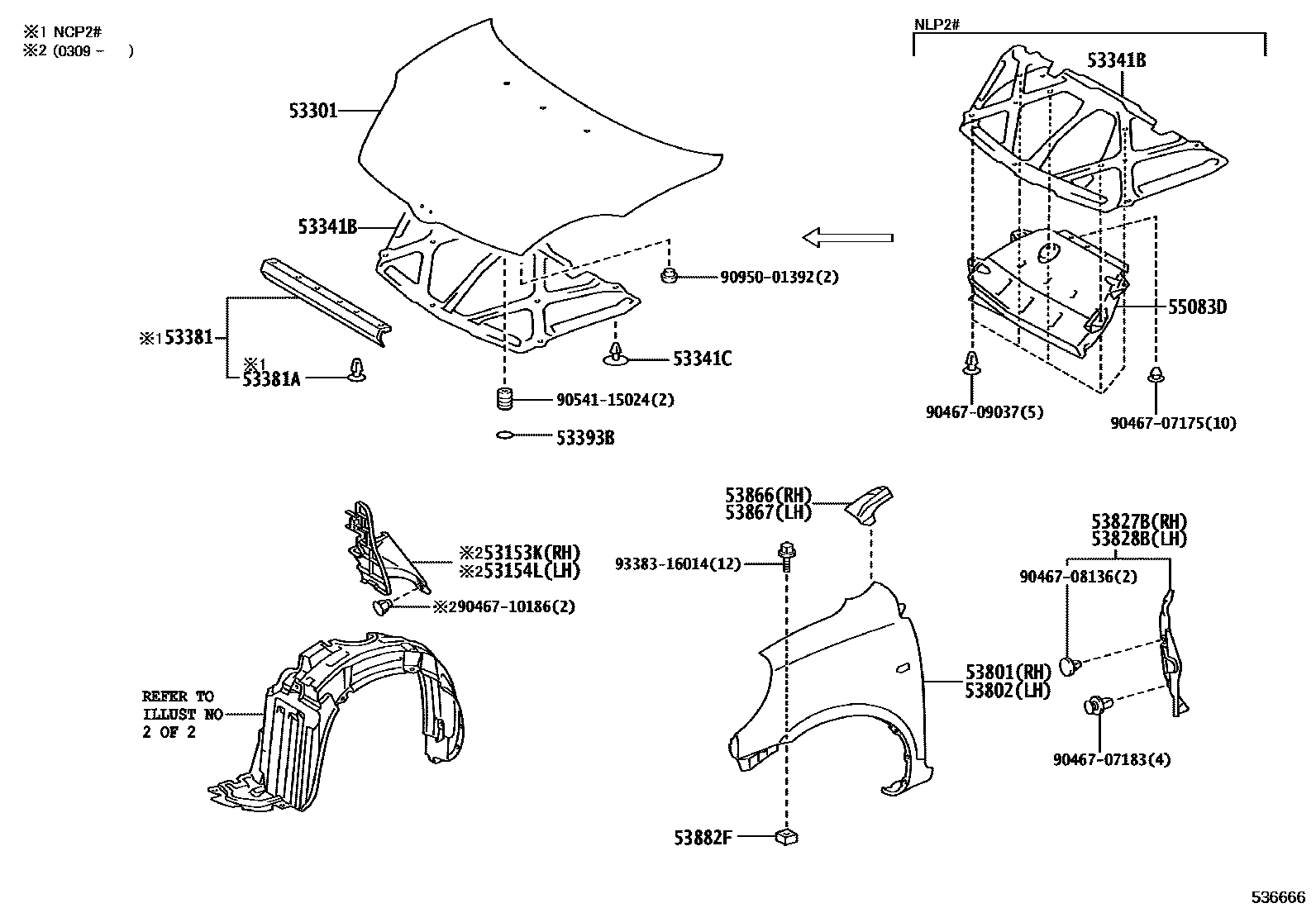

HOOD & FRONT FENDER

0001 1 0002 1FENDER LINER

53153KGUIDE, RADIATOR GRILLE SIDE AIR, RH

main53153-52020iNCP2#,NLP2#200309-200509

53154LGUIDE, RADIATOR GRILLE SIDE AIR, LH

main53154-52020iNCP2#,NLP2#200309-200509

53301HOOD SUB-ASSY

main53301-52040iNCP2#,NLP2#199908-200509

53341BINSULATOR, HOOD

main53341-52020iNCP2#199908-200509

main53341-52060iNLP2#200110-200509

53341CCLIP(FOR HOOD INSULATOR)

main90467-08124iNLP2#199911-200206

main90467-09050iNLP2#199908-200509

53381SEAL, HOOD TO RADIATOR SUPPORT

main53381-52010iNCP2#199908-200509

53381ACLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)

main90467-08011iNCP2#199908-200509

53393BPROTECTOR, HOOD, FRONT

main53393-52010iNCP2#,NLP2#199908-200509

53801FENDER SUB-ASSY, FRONT RH

main53811-52020iNCP2#,NLP2#..LUNA,STD199908-200211

main53811-52030iNCP2#,NLP2#199908-200509

W(ARCH MOULDING)

53802FENDER SUB-ASSY, FRONT LH

main53812-52020iNCP2#,NLP2#..LUNA,STD199908-200211

main53812-52030iNCP2#,NLP2#199908-200509

W(ARCH MOULDING)

53827BPROTECTOR, FRONT FENDER SIDE PANEL

main53827-52020iNCP2#199908-200011

sub53827-52021

main53827-52021iNCP2#,NLP2#200011-200509

53828BPROTECTOR, FRONT FENDER SIDE PANEL, LH

main53828-52020iNCP2#199908-200011

sub53828-52021

main53828-52021iNCP2#,NLP2#200011-200509

53866SEAL, FRONT FENDER TO COWL SIDE, RH

main53866-52020iNCP2#,NLP2#199908-200509

53867SEAL, FRONT FENDER TO COWL SIDE, LH

main53867-52020iNCP2#,NLP2#199908-200509

53882FSEAL, FRONT FENDER

main53882-16030iNCP2#199908-200509

55083DDUCT SUB-ASSY, FRONT VENTILATOR

main55083-52020iNLP2#200110-200211

sub55083-52022

main55083-52021iNLP2#200211-200308

main55083-52022iNLP2#200308-200509

9046707175

main90467-07175

9046707183

main90467-07183

9046708136

main90467-08136

9046709037

main90467-09037

9046710186

main90467-10186

9054115024

main90541-15024

9095001392

main90950-01392

9338316014

main93383-16014

24 parts on this diagram · 2 diagrams in section
