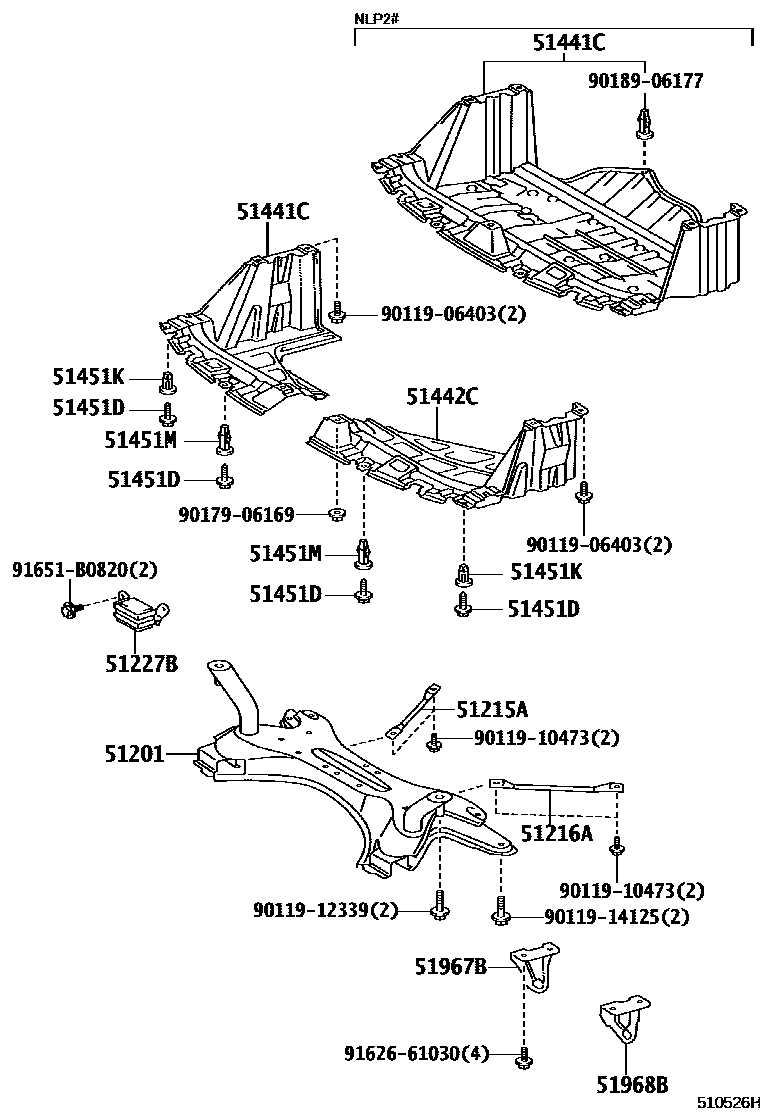

SUSPENSION CROSSMEMBER & UNDER COVER

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51201-52010iNCP20199908-200001

sub51201-52011

main51201-52011iNCP2#,NLP2#200001-200207

sub51201-52012

main51201-52012iNCP2#,NLP2#200207-200209

sub51201-52013

main51201-52013iNCP2#,NLP2#200209-200305

main51201-52014iNCP2#,NLP2#200305-200509

51215AREINFORCEMENT, FRONT SUSPENSION MEMBER, RH

main51215-52010iNCP2#,NLP2#199908-200509

51216AREINFORCEMENT, FRONT SUSPENSION MEMBER, LH

main51215-52010iNCP2#,NLP2#199908-200509

51227BDAMPER, FRONT SUSPENSION MEMBER DYNAMIC

main51227-52010iNCP2#199908-200509

main51227-52030iNLP2#200110-200509

51441CCOVER, ENGINE UNDER, RH

main51410-52010iNLP2#200110-200509

main51441-52010iNCP2#199908-200509

51442CCOVER, ENGINE UNDER, LH

main51442-52010iNCP20..ATM199908-200509

main51442-52030iNCP2#..5F199908-200509

51451DSCREW, NO.1

main90159-60383iNCP2#199908-200509

51451KGROMMET, SCREW, NO.1

main90189-06076iNCP2#,NLP2#199908-200509

51451MGROMMET, SCREW, NO.2

main90189-06177iNCP2#,NLP2#199908-200509

51967BHOOK, TRANSPORT, REAR RH

main51967-10090iNCP2#,NLP2#199908-200509

51968BHOOK, TRANSPORT, REAR LH

main51967-48010iNCP2#,NLP2#199908-200509

9011906403

main90119-06403

9011910473

main90119-10473

9011912339

main90119-12339

9011914125

main90119-14125

9017906169

main90179-06169

9018906177

main90189-06177

9162661030

main91626-61030

91651B0820

main91651-B0820

19 parts on this diagram · 1 diagram in section
