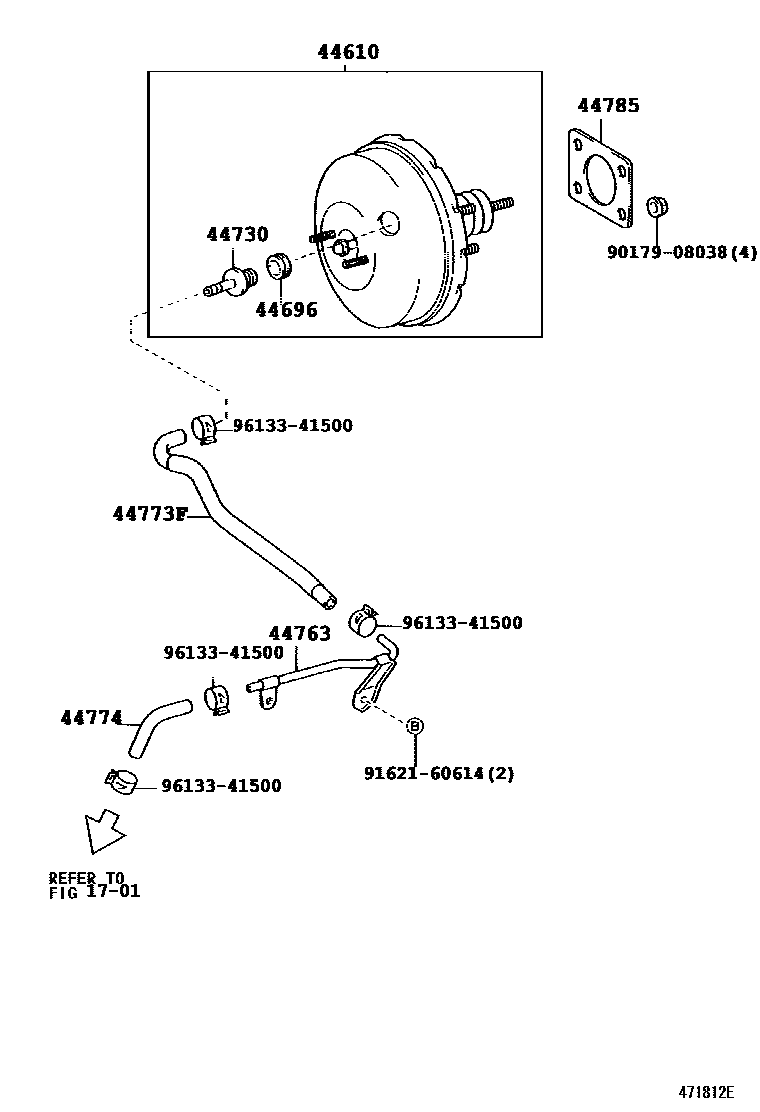

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1 0003 1 0004 1

1701

44610BOOSTER ASSY, BRAKE

main44610-52040iNCP2#..RHD¥45,500199908-200308

sub44610-52041¥45,600

main44610-52041iNCP2#..RHD¥45,600200308-200509

main44610-52050iNCP2#..LHD¥46,700199908-200308

sub44610-52051¥46,600

main44610-52051iNCP2#..LHD¥46,600200308-200509

W(ABS)

main44610-52150iNLP2#..LHD¥45,500200110-200308

sub44610-52151¥45,600

main44610-52151iNLP2#..LHD¥45,600200308-200509

main44610-52160iNLP2#..RHD¥47,900200110-200410

sub44610-52161¥47,900

main44610-52161iNLP2#..RHD¥47,900200411-200509

main44610-52250iNCP21..LHD¥46,700200301-200311

W(VSC)

sub44610-52251¥46,600

main44610-52251iNCP21..LHD¥46,600200311-200509

main44610-52260iNCP21..RHD¥46,700200301-200410

W(VSC)

sub44610-52261¥46,600

main44610-52261iNCP21..RHD¥46,600200411-200509

W(VSC)

44696GROMMET, CHECK VALVE

main90480-24015iNCP2#¥130199908-200509

main90480-24439iNCP21..RHD¥390200301-200509

W(VSC)

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-20080iNCP21..RHD¥1,360200301-200509

W(VSC)

main44730-28030iNCP2#¥1,360200305-200509

main44730-30010iNCP2#¥1,440199908-200304

44763TUBE, BOOSTER VACUUM

main44763-52010iNCP2#¥1,930199908-200509

44773FHOSE, UNION TO CHECK VALVE

main44773-52020iNCP2#..RHD¥2,290199908-200211

main44773-52040iNCP2#..LHD¥2,380199908-200509

main44773-52080iNCP2#..RHD¥3,080200211-200509

44774HOSE, UNION TO CONNECTOR TUBE

main95446-09130iNCP2#¥460199908-200509

44785GASKET, BRAKE BOOSTER

main44785-16020iNCP2#,NLP2#¥220199908-200509

9017908038

main90179-08038¥130

9162160614

main91621-60614¥120

9613341500

main96133-41500¥140

11 parts on this diagram · 4 diagrams in section
