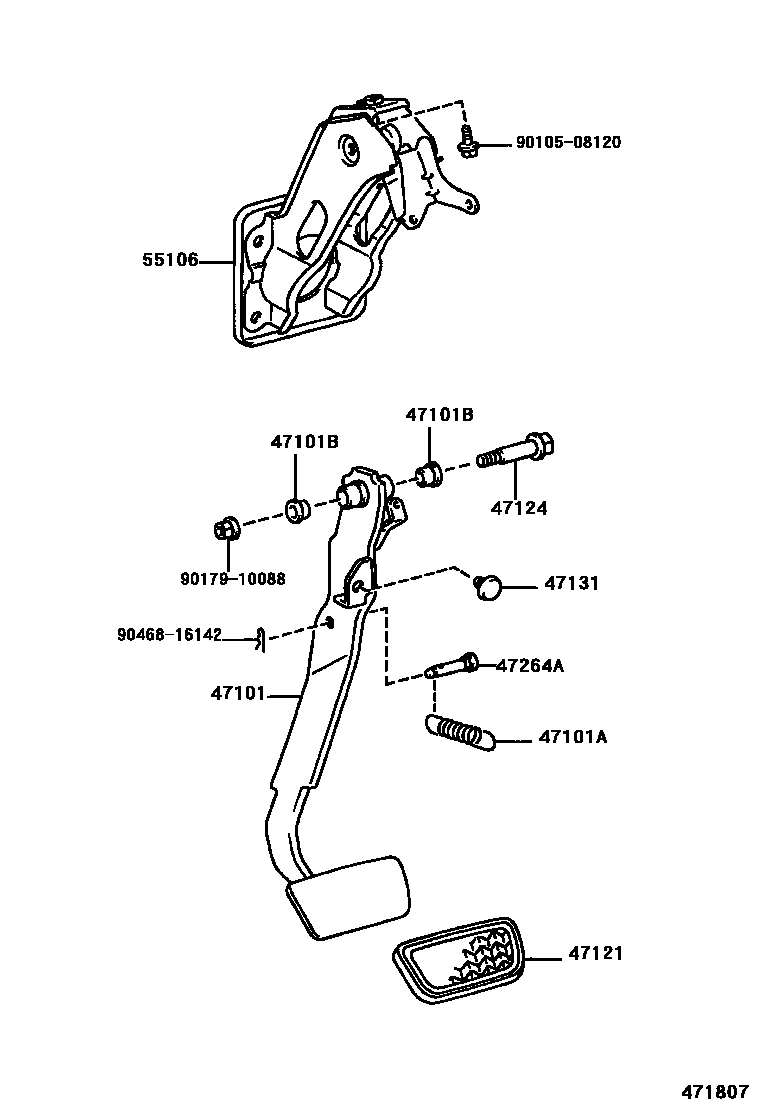

BRAKE PEDAL & BRACKET

0001 1 0002 1 0003 1

47101PEDAL SUB-ASSY, BRAKE

main47101-52010iNCP2#,NLP2#..RHD..5F199908-200211

sub47101-52050

main47101-52020iNCP20..RHD..4FC199908-200211

sub47101-52060

main47101-52031iNCP2#,NLP2#..LHD..5F199908-200509

main47101-52040iNCP20..LHD..4FC199908-200509

main47101-52070iNCP20..4HC200008-200211

sub47101-52080

main47101-52100iNCP2#,NLP2#..RHD..5F200211-200509

main47101-52110iNCP20..RHD..4FC200211-200509

main47101-52120iNCP20..4HC200211-200509

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90506-14077iNCP2#,NLP2#..4FC,5F199908-200509

main90506-16072iNCP20..4HC200008-200509

47101BBUSH(FOR BRAKE PEDAL)

main90386-13015iNCP2#,NLP2#199908-200509

47121PAD, BRAKE PEDAL

main31321-52010iNCP2#,NLP2#..5F199908-200509

main47121-52010iNCP20..ATM199908-200509

47124SHAFT, BRAKE PEDAL

main90109-10167iNCP2#,NLP2#199908-200509

47131CUSHION(FOR STOP LAMP SWITCH)

main90541-06036iNCP2#,NLP2#..4FC,5F199908-200509

main90541-06049iNCP20..4HC200008-200509

47264APIN(FOR PUSH ROD)

main90249-08295iNCP2#,NLP2#..LHD199908-200509

main90249-08297iNCP2#,NLP2#..RHD199908-200509

55106SUPPORT SUB-ASSY, BRAKE PEDAL

main55106-52011iNCP20..RHD199908-200001

sub55106-52012

main55106-52012iNCP2#,NLP2#..RHD..(4FC,5F)200001-200211

main55106-52020iNCP2#,NLP2#..LHD199908-200412

sub55106-52021

main55106-52021iNCP2#,NLP2#..LHD200412-200509

main55106-52042iNCP20..4HC200008-200211

main55106-52070iNCP20..4HC200211-200509

main55106-52100iNCP2#,NLP2#..RHD..(4FC,5F)200211-200509

9010508120

main90105-08120

9017910088

main90179-10088

9046816142

main90468-16142

11 parts on this diagram · 3 diagrams in section
