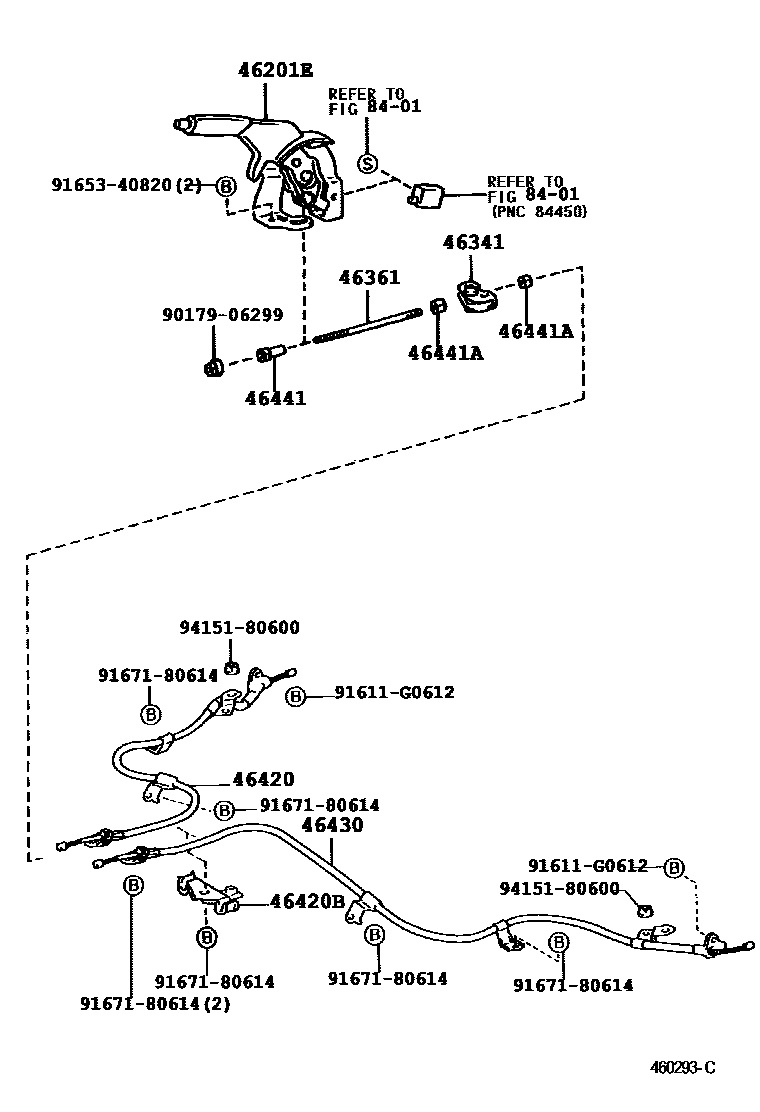

PARKING BRAKE & CABLE

0001 1 0002 1 0003 1

46201PEDAL SUB-ASSY, PARKING BRAKE

main46210-52020iNCP20..4HC200008-200509

46201ELEVER SUB-ASSY, PARKING BRAKE

main46201-52010-B0iNCP2#,NLP2#..4FC,5F199908-200211

MD.GRAY,TRIM9#

sub46201-52010

main46201-52010-B3iNCP2#,NLP2#..(4FC,5F)..(LUNA,STD)200211-200509

DK.GRAY,TRIM1#

sub46201-52010

main46201-52010-G0iNCP2#,NLP2#..4FC,5F199908-200211

MIST GREEN,TRIM7#

sub46201-52010

main46201-52050-B1iNCP20,21,NLP20..4FC,5F200211-200509

CHROME PLATED,DK.GRAY,TRIM1#

sub46201-52050

46341EQUALIZER, PARKING BRAKE

main46341-52010iNCP2#,NLP2#199908-200509

46361ROD, PARKING BRAKE PULL

main46361-52010iNCP2#,NLP2#..4FC,5F199908-200509

main46361-52020iNCP20..4HC200008-200509

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-52040iNCP20..4HC200008-200509

main46420-52050iNCP2#,NLP2#..4FC,5F199908-200509

main46420-52070iNLP2#..LHD;NCP2#..4FC,5F199908-200509

W(REAR DISC BRAKE)

46420BCLAMP, NO.2(FOR PARKING BRAKE CABLE)

main46451-52010iNCP2#,NLP2#200205-200509

main90949-01B84iNCP2#,NLP2#199908-200205

sub46451-52010

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-52040iNCP20..4HC200008-200509

main46430-52050iNCP2#,NLP2#..4FC,5F199908-200509

main46430-52070iNLP20..LHD;NCP20,21..4FC,5F199908-200509

W(REAR DISC BRAKE)

46441NUT, WIRE ADJUSTING, NO.1

main46441-52010iNCP2#,NLP2#199908-200509

46441ANUT, WIRE ADJUSTING, NO.2

main90170-06014iNCP2#,NLP2#..4FC,5F199908-200509

8401

9017906299

main90179-06299

91611G0612

main91611-G0612

9165340820

main91653-40820

9167180614

main91671-80614

9415180600

main94151-80600

15 parts on this diagram · 3 diagrams in section
