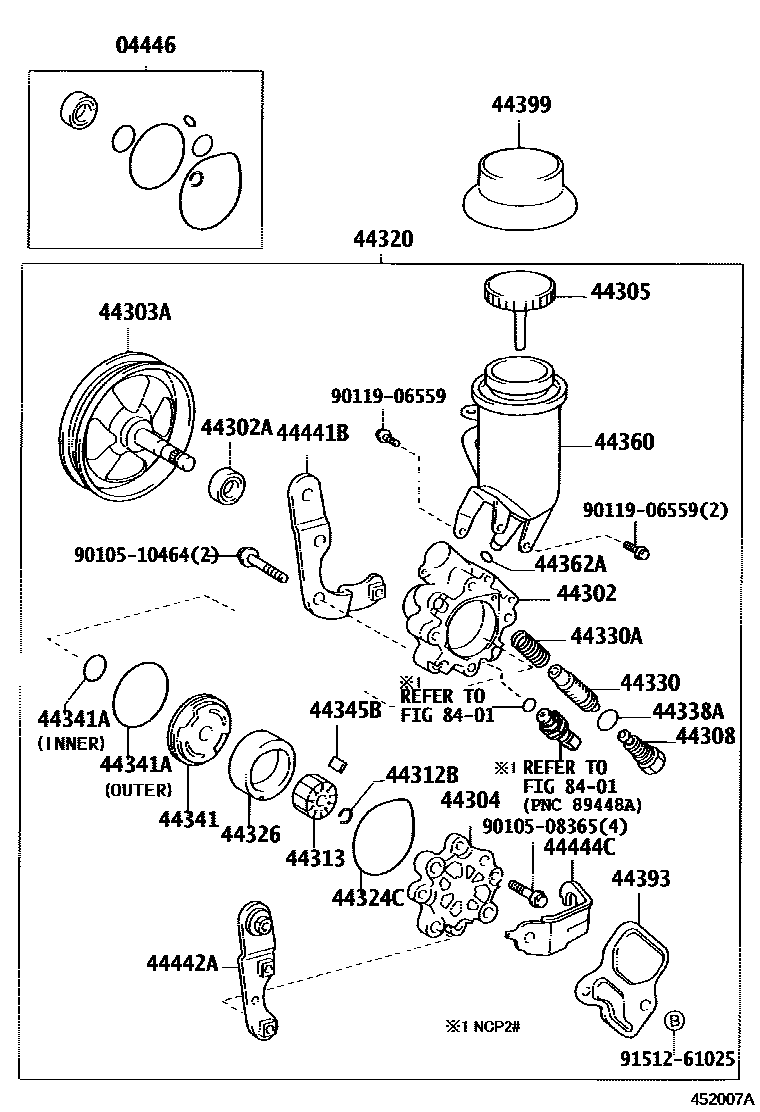

VANE PUMP & RESERVOIR (POWER STEERING)
04446GASKET KIT, POWER STEERING PUMP
44302HOUSING SUB-ASSY, VANE PUMP, FRONT
44302ASEAL, OIL, NO.1(FOR VANE PUMP HOUSING)
44303ASHAFT SUB-ASSY, W/PULLEY
44304HOUSING SUB-ASSY, VANE PUMP, REAR
44305CAP SUB-ASSY, VANE PUMP OIL RESERVOIR
44308UNION SUB-ASSY, PRESSURE PORT
44312BRING, SNAP, NO.1(FOR VANE PUMP SHAFT)
44313ROTOR, VANE PUMP
NO MARK
MARK 1
MARK 2
MARK 3
MARK 4
44320PUMP ASSY, VANE
44324CRING, O(FOR PUMP HOUSING REAR)
44326RING, CAM(FOR VANE PUMP)
NO MARK
MARK 1
MARK 2
MARK 3
MARK 4
44330VALVE ASSY, FLOW CONTROL
MARK A
MARK B
MARK C
MARK D
MARK E
MARK F
44330ASPRING, COMPRESSION(FOR FLOW CONTROL VALVE)
44338ARING, O(FOR PRESSURE PORT UNION)
OD=22,ID=18.6
44341PLATE, VANE PUMP SIDE, FRONT
44341ARING, O(FOR VANE PUMP FRONT SIDE PLATE)
INNER
OUTER
44345BPLATE, VANE PUMP
ROTOR NO MARK
ROTOR MARK 1
ROTOR MARK 2
ROTOR MARK 3
ROTOR MARK 4
44360RESERVOIR ASSY, VANE PUMP OIL
44362ARING, O(FOR VANE PUMP OIL RESERVOIR)
44393INSULATOR, POWER STEERING PUMP HEAT
44399COVER, VANE PUMP OIL RESERVOIR
44441BBRACKET, PUMP, FRONT
44442ABRACKET, VANE PUMP, REAR
44444CSTAY, VANE PUMP, REAR
8401
9010508365
9010510464
9011906559
9151261025
30 parts on this diagram · 2 diagrams in section
