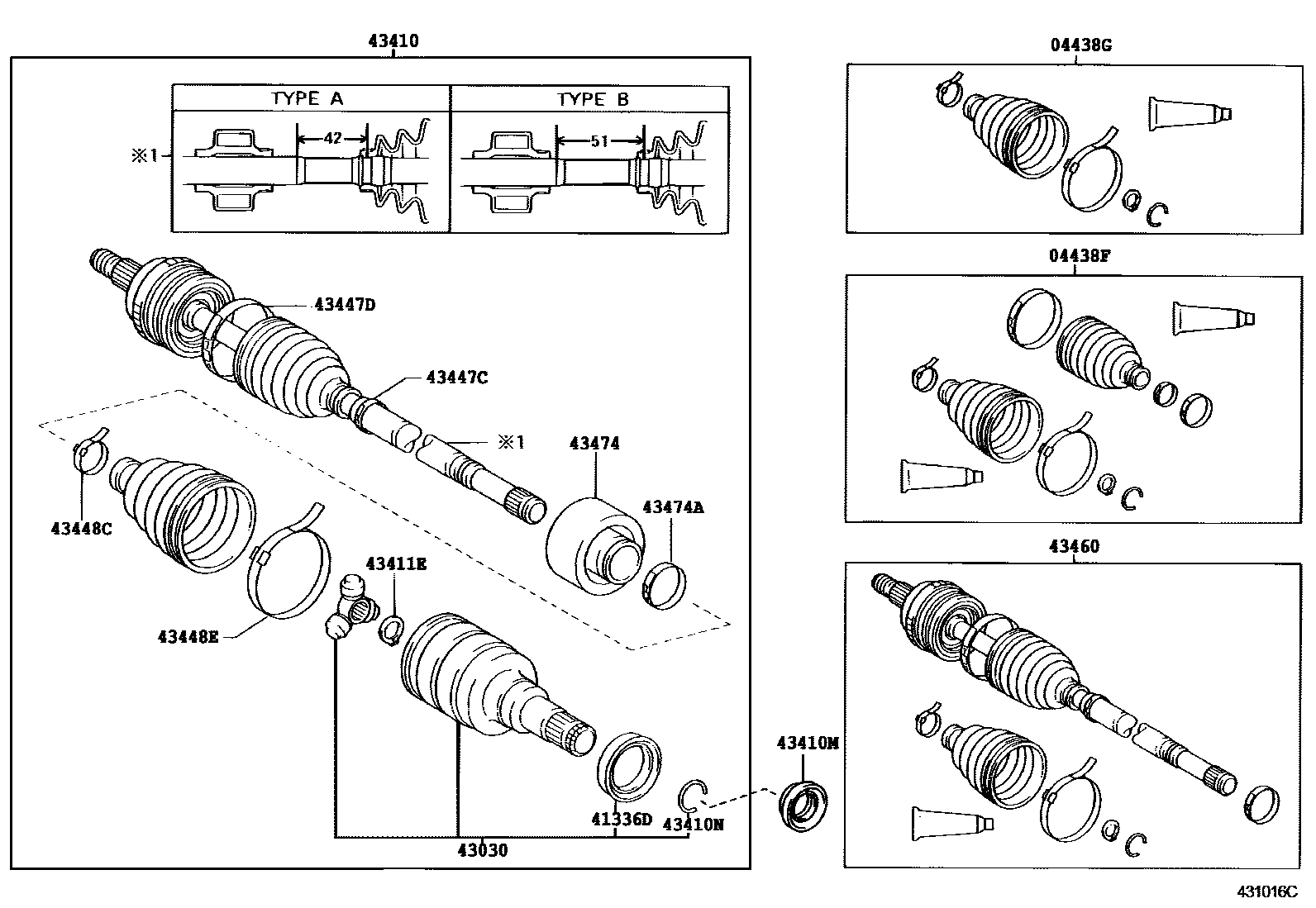

FRONT DRIVE SHAFT

0001 1RH 0003 1RH 0004 1LH 0006 1LH

04438FBOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH

main04427-52170iNCP20,22¥12,000200312-200509

TYPE B:REFER ILLUST.

sub04427-52171¥10,000

main04427-52260iNCP21,NLP2#¥10,800200505-200509

TYPE A:REFER TO ILLUSTRATION

sub04427-52580¥10,800

main04427-52260iNCP21,NLP2#¥10,800200312-200509

TYPE A:REFER ILLUST.

sub04427-52580¥10,800

main04438-52040iNCP2#,NLP2#¥10,800199908-200204

sub04438-52041¥10,800

main04438-52041iNCP21,NLP2#¥10,800200205-200303

TYPE A:REFER TO ILLUSTRATION

sub04438-52042¥10,800

main04438-52041iNCP20,22¥10,800200212-200312

TYPE A:REFER ILLUST.

sub04438-52042¥10,800

main04438-52041iNCP2#,NLP2#¥10,800200204-200205

sub04438-52042¥10,800

main04438-52121iNCP20,22¥10,800200205-200208

TYPE B:REFER TO ILLUSTRATION

sub04438-52122¥10,800

main04438-52122iNCP20,22¥10,800200208-200212

TYPE B:REFER TO ILLUSTRATION

sub04427-52170¥12,000

main04438-52122iNCP20,22¥10,800200212-200312

TYPE B:REFER ILLUST.

sub04427-52170¥12,000

04438GBOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH

main04437-52140iNCP21,NLP2#¥5,500200312-200505

TYPE B:REFER ILLUST.

main04437-52140iNCP20,22¥5,500200505-200509

TYPE B:REFER TO ILLUSTRATION

main04437-52190iNCP20,22¥6,700200505-200509

TYPE A:REFER TO ILLUSTRATION

sub04437-52191¥5,500

main04437-52190iNCP21,NLP2#¥6,700200312-200505

TYPE A:REFER ILLUST.

sub04437-52191¥5,500

main04438-16101iNCP20,22¥6,700200212-200505

TYPE B:REFER ILLUST.

sub04437-52160¥5,600

main04438-16101iNCP20,22¥6,700200205-200212

TYPE B:REFER TO ILLUSTRATION

sub04437-52160¥5,600

main04438-52030iNCP2#,NLP2#¥6,700199908-200505

sub04437-52190¥6,700

main04438-52030iNCP21,NLP2#¥6,700200205-200212

TYPE A:REFER TO ILLUSTRATION

sub04437-52190¥6,700

main04438-52030iNCP20,22¥6,700200212-200505

TYPE A:REFER ILLUST.

sub04437-52190¥6,700

41336DCOVER, FRONT DRIVE SHAFT DUST, RH

main41336-12010iNCP21,NLP2#¥130200003-200211

43030JOINT ASSY, FRONT DRIVE INBOARD, RH

main43403-10011iNCP20,22¥19,500200205-200211

TYPE A:REFER TO ILLUSTRATION

sub43403-0W031¥16,200

main43403-10011iNCP2#,NLP2#¥19,500199908-200205

sub43403-0W031¥16,200

main43403-16020iNCP20,22¥19,400200205-200211

TYPE B:REFER TO ILLUSTRATION

43410SHAFT ASSY, FRONT DRIVE, RH

main43410-52060iNCP2#,NLP2#..4FC,5F¥82,800199908-200212

TYPE A:REFER TO ILLUSTRATION

sub43410-52061¥82,800

main43410-52070iNCP20..4HC¥82,800200008-200211

TYPE A:REFER TO ILLUSTRATION

sub43410-52071¥82,800

main43410-52070iNCP20..4HC¥82,800199908-200211

TYPE A:REFER TO ILLUSTRATION & W(ABS)

sub43410-52071¥82,800

main43410-52120iNCP20,22..4FC,5F¥82,900200205-200212

TYPE B:REFER TO ILLUSTRATION

sub43410-52121

main43410-52130iNCP20,22¥82,800200205-200211

TYPE B:REFER TO ILLUSTRATION & W(ABS)

sub43410-52131¥82,800

43410MOIL SEAL, FRONT DRIVE SHAFT, RH

main90311-34016iNCP2#..5F¥270199908-200008

main90311-34023iNCP20..4FC¥270199908-200509

43410NRING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH)

main90521-26004iNCP2#,NLP2#¥100200003-200211

43411ERING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH)

main43425-16020iNCP20,22¥60200205-200211

TYPE B:REFER TO ILLUSTRATION

main90520-22001iNCP20,22¥110200205-200211

TYPE A:REFER TO ILLUSTRATION

sub90520-22029¥90

main90520-22001iNCP2#,NLP2#¥110199908-200205

sub90520-22029¥90

43447CCLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-16170iNCP20,22¥360200205-200211

ID=29.1,TYPE B:REFER TO ILLUSTRATION

sub42345-52240¥280

main42345-52110iNCP21,NLP2#¥360200205-200211

ID=29.2,TYPE A:REFER TO ILLUSTRATION

sub42345-52260¥220

main42345-52110iNCP20,22¥360199908-200211

ID=29.2

sub42345-52260¥220

43447DCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-52100iNCP20,22¥520200205-200211

ID=88.9,TYPE A:REFER TO ILLUSTRATION

sub42345-52250¥330

main42345-52100iNCP2#,NLP2#¥520199908-200211

ID=88.9

sub42345-52250¥330

main42345-52180iNCP20,22¥480200205-200211

ID=84.8,TYPE B:REFER TO ILLUSTRATION

sub42345-52230¥430

43448CCLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-16140iNCP20,22¥250200205-200211

TYPE B:REFER TO ILLUSTRATION

main90949-01078iNCP20,22¥80200205-200211

TYPE A:REFER TO ILLUSTRATION

main90949-01078iNCP2#,NLP2#¥80199908-200205

43448ECLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-16150iNCP20,22..4FC,5F¥330200205-200211

TYPE B:REFER TO ILLUSTRATION

main90949-01146iNCP2#,NLP2#¥350199908-200205

main90949-01146iNCP20,22¥350200205-200211

TYPE A:REFER TO ILLUSTRATION

43460SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH

main43460-59035iNCP20,22..4FC,5F¥57,400200205-200212

TYPE A:REFER TO ILLUSTRATION

sub43460-59535¥55,300

main43460-59035iNCP2#,NLP2#..4FC,5F¥57,400199908-200205

sub43460-59535¥55,300

main43460-59045iNCP20,22¥57,400199908-200312

W(ABS)

sub43460-59365¥56,300

main43460-59045iNCP21,NLP2#¥57,400200205-200312

TYPE A:REFER TO ILLUSTRATION & W(ABS)

sub43460-59365¥56,300

main43460-59115iNCP20,22..4FC,5F¥56,600200205-200212

TYPE B:REFER TO ILLUSTRATION

sub43460-59545

main43460-59125iNCP20,22¥56,600200205-200312

TYPE B:REFER TO ILLUSTRATION & W(ABS)

sub43460-59345¥56,300

main43460-59345iNCP20,22¥56,300200312

TYPE B:REFER ILLUST.

sub43460-59346¥56,300

main43460-59365iNCP21,NLP2#¥56,300200312-200505

TYPE A:REFER ILLUST.

sub43460-59366¥56,300

main43460-59365iNCP21,NLP2#¥56,300200505

sub43460-59366¥56,300

43474DAMPER, DRIVE SHAFT

main43474-52030iNCP21,NLP2#¥4,640200205-200211

TYPE A:REFER TO ILLUSTRATION

main43474-52030iNCP2#,NLP2#¥4,640199908-200205

main43474-52040iNCP20,22¥6,200200205-200211

TYPE B:REFER TO ILLUSTRATION

43474ACLAMP (FOR DRIVE SHAFT DAMPER SETTING)

main42345-14010iNCP2#,NLP2#¥700199908-200211

15 parts on this diagram · 4 diagrams in section
