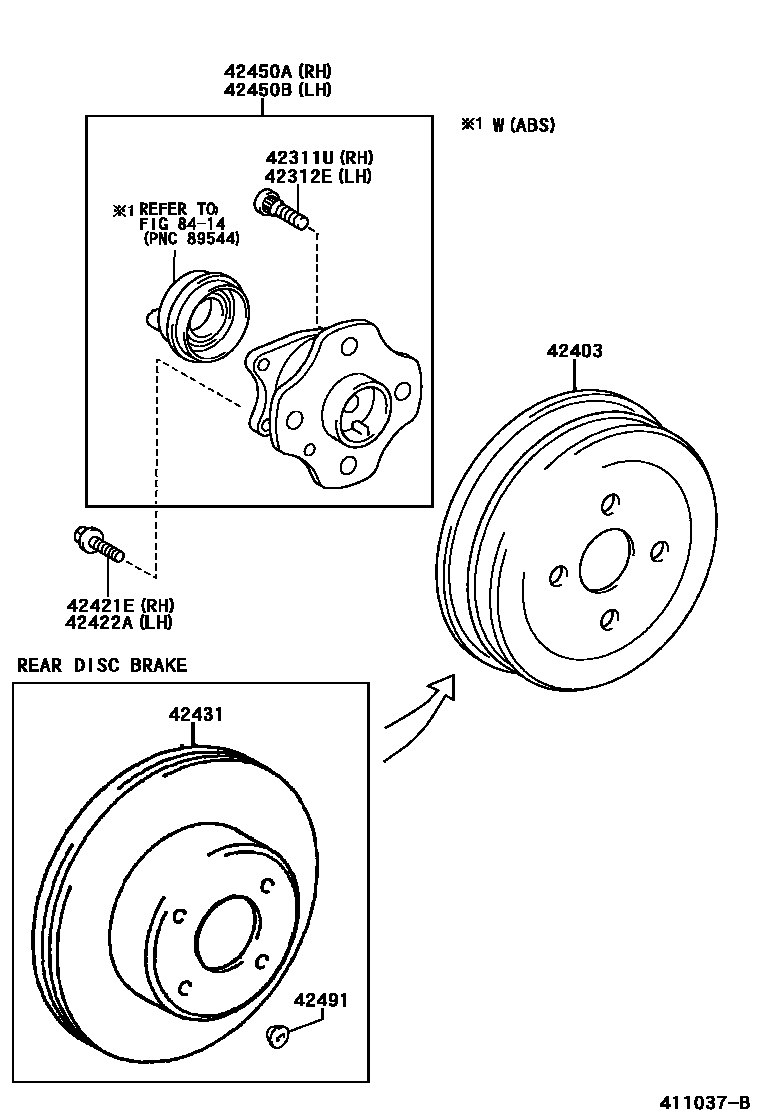

REAR AXLE SHAFT & HUB

42311UBOLT, HUB(FOR REAR AXLE RH)

main90942-02047iNCP2#,NLP2#¥230199908-200509

42312EBOLT, HUB(FOR REAR AXLE LH)

main90942-02047iNCP2#,NLP2#¥230199908-200509

42403DRUM SUB-ASSY, REAR BRAKE

main42431-52020iNCP2#¥9,300199908-200008

sub42431-52021¥9,300

main42431-52021iNCP2#,NLP2#¥9,300200008-200509

42421EBOLT (FOR REAR AXLE BEARING CASE RH)

main90105-10470iNCP2#¥170199908-200010

main90105-10507iNCP2#,NLP2#¥120200010-200509

42422ABOLT (FOR REAR AXLE BEARING CASE LH)

main90105-10470iNCP2#¥170199908-200010

main90105-10507iNCP2#,NLP2#¥120200010-200509

42431DISC, REAR

main42431-52050iNLP2#..LHD;NCP2#..4FC,5F¥14,300199908-200509

sub42431-12250¥10,200

42450AHUB & BEARING ASSY, REAR AXLE, RH

main42410-52020iNCP2#,NLP2#..4FC,5F¥14,600199908-200211

sub42410-52021¥14,500

main42410-52021iNCP2#,NLP2#..4FC,5F¥14,500200211-200212

main42450-52020iNCP2#,NLP2#..4FC,5F¥28,900199908-200211

W(ABS)

sub42450-52021¥28,800

main42450-52020iNCP20..4HC¥28,900200008-200211

sub42450-52021¥28,800

main42450-52021iNCP20..4HC¥28,800200211-200509

W(ABS)

42450BHUB & BEARING ASSY, REAR AXLE, LH

main42410-52020iNCP2#,NLP2#..4FC,5F¥14,600199908-200211

sub42410-52021¥14,500

main42410-52021iNCP2#,NLP2#..4FC,5F¥14,500200211-200212

main42450-52020iNCP20..4HC¥28,900200008-200211

sub42450-52021¥28,800

main42450-52020iNCP2#,NLP2#..4FC,5F¥28,900199908-200211

W(ABS)

sub42450-52021¥28,800

main42450-52021iNCP20..4HC¥28,800200211-200509

W(ABS)

42491PLUG, SHOE ADJUSTING HOLE (FOR PARKING BRAKE)

main47491-22020iNLP2#..LHD;NCP2#..4FC,5F¥140199908-200509

8414

10 parts on this diagram · 1 diagram in section
