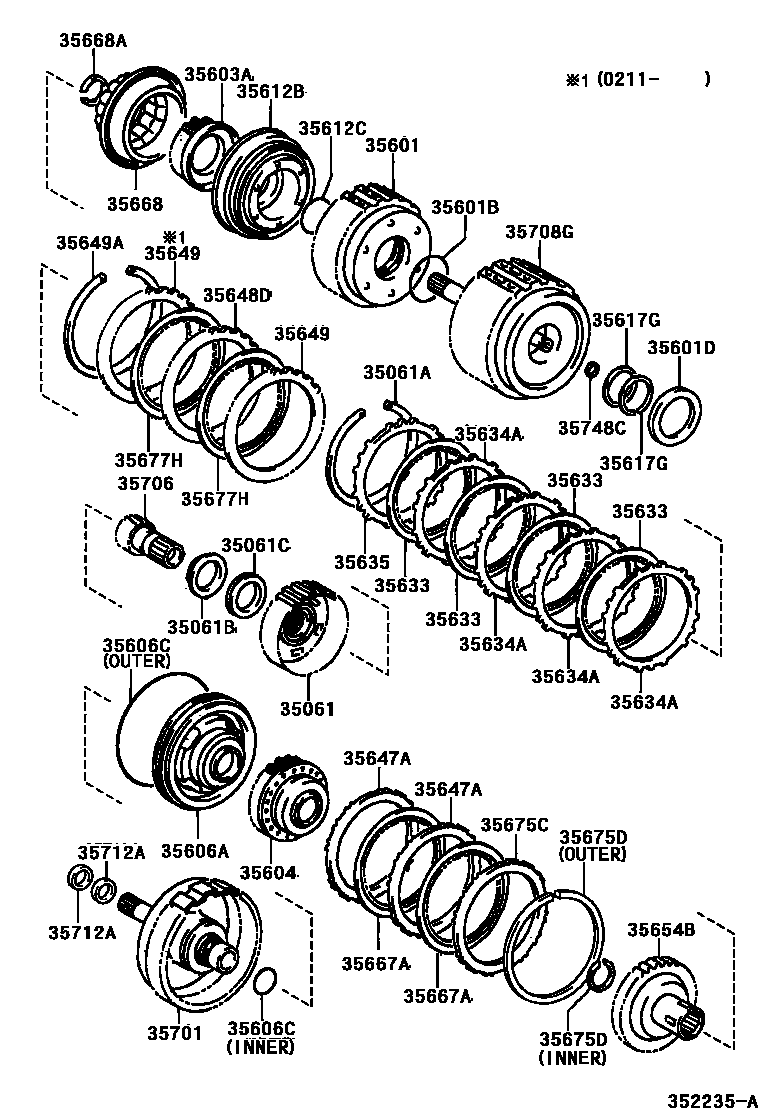

BRAKE BAND & MULTIPLE DISC CLUTCH (ATM)
35061HUB SUB-ASSY, FORWARD CLUTCH
35061ARING, HOLE SNAP(FOR FORWARD CLUTCH FLANGE)
35061BRACE, THRUST BEARING(FOR FORWARD CLUTCH HOB)
35061CBEARING, THRUST NEEDLE ROLLER(FOR FORWARD CLUTCH HUB)
35601DRUM SUB-ASSY, CLUTCH
35601BRING, O (FOR FRONT CLUTCH DRUM)
35601DBEARING, THRUST NEEDLE ROLLER (FOR FRONT CLUTCH DRUM)
35603ASPRING SUB-ASSY, FORWARD CLUTCH RETURN
35604SPRING SUB-ASSY, DIRECT CLUTCH RETURN
35606APISTON SUB-ASSY, DIRECT CLUTCH
35606CRING, O (FOR DIRECT CLUTCH PISTON)
INNER
OUTER
35612BPISTON, FORWARD CLUTCH
35612CRING, O(FOR FORWARD CLUTCH PISTON)
35617GRING, CLUTCH DRUM OIL SEAL
35633DISC, CLUTCH (FOR FRONT CLUTCH)
35634APLATE, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH)
T=1.8
35635FLANGE, FORWARD CLUTCH
T=3.0,MARK 1
T=3.2,MARK 2
T=3.4,MARK 3
T=3.6,MARK 4
T=3.1,MARK 5
T=3.3,MARK 6
T=3.5,MARK 7
35647APLATE, CLUTCH (FOR DIRECT MULTIPLE DISC CLUTCH)
35648DPLATE, CLUTCH, NO.3
35649FLANGE, REVERSE CLUTCH
T=3.0
T=3.2
T=3.4
T=3.6
35649ARING, HOLE SNAP(FOR REVERSE CLUTCH FLANGE)
35654BHUB, DIRECT CLUTCH
35667ADISK, DIRECT CLUTCH
35668BALANCER, CLUTCH, NO.1
35668ARING, SNAP(FOR CLUTCH BALANCER)
35675CFLANGE, DIRECT CLUTCH
T=3.0
T=3.2
T=3.4
35675DRING, HOLE SNAP (FOR DIRECT CLUTCH FLANGE)
INNER
OUTER
35677HDISC, REVERCE CLUTCH
35701SHAFT SUB-ASSY, INPUT
35706GEAR SUB-ASSY, PLANETARY SUN
35708GSHAFT SUB-ASSY, INTERMEDIATE
35712ARING, INPUT SHAFT OIL SEAL
35748CRING, INTERMEDIATE SHAFT OIL SEAL
33 parts on this diagram · 1 diagram in section
