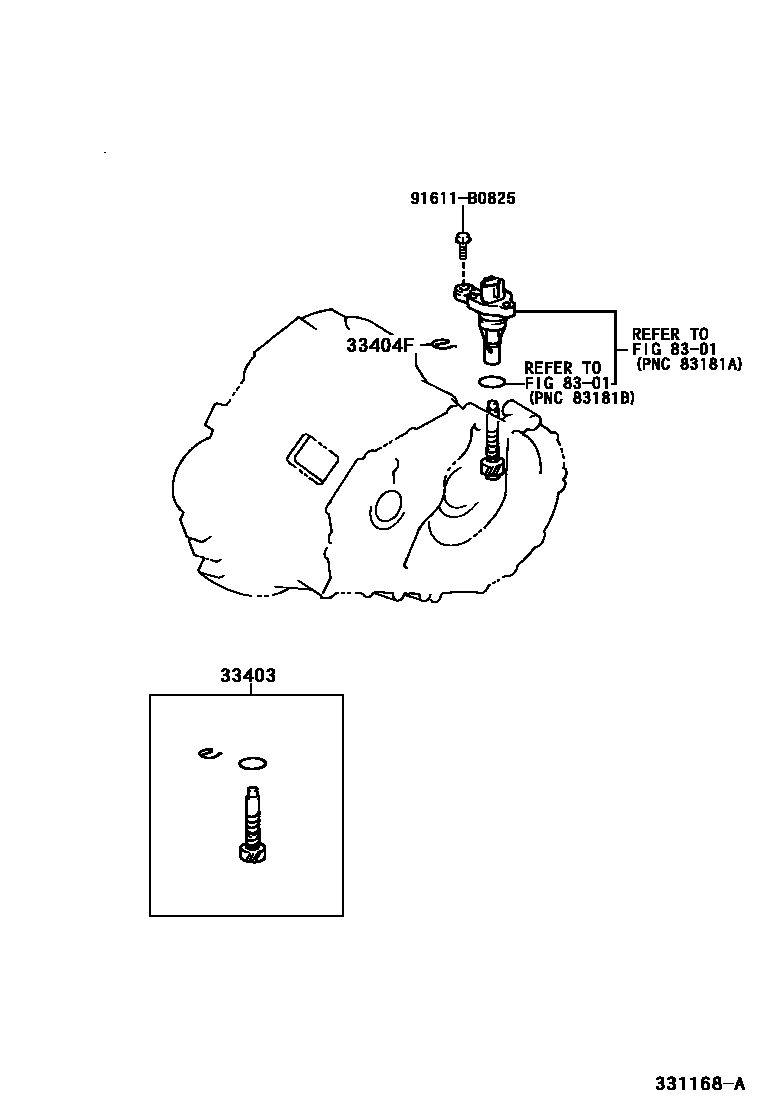

SPEEDOMETER DRIVEN GEAR (MTM)

33403GEAR SUB-ASSY, SPEEDOMETER DRIVEN (MTM)

main33403-19445iNCP20,22..5F199908-200509

N=30,MARK 30:34

main33403-19465iNCP21,NLP2#200003-200509

N=31,MARK 31:35

33404FCLIP (FOR MTM SPEEDOMETER SHAFT SLEEVE)

main90468-12005iNCP2#,NLP2#..5F199908-200509

8301

91611B0825

main91611-B0825

4 parts on this diagram · 1 diagram in section
