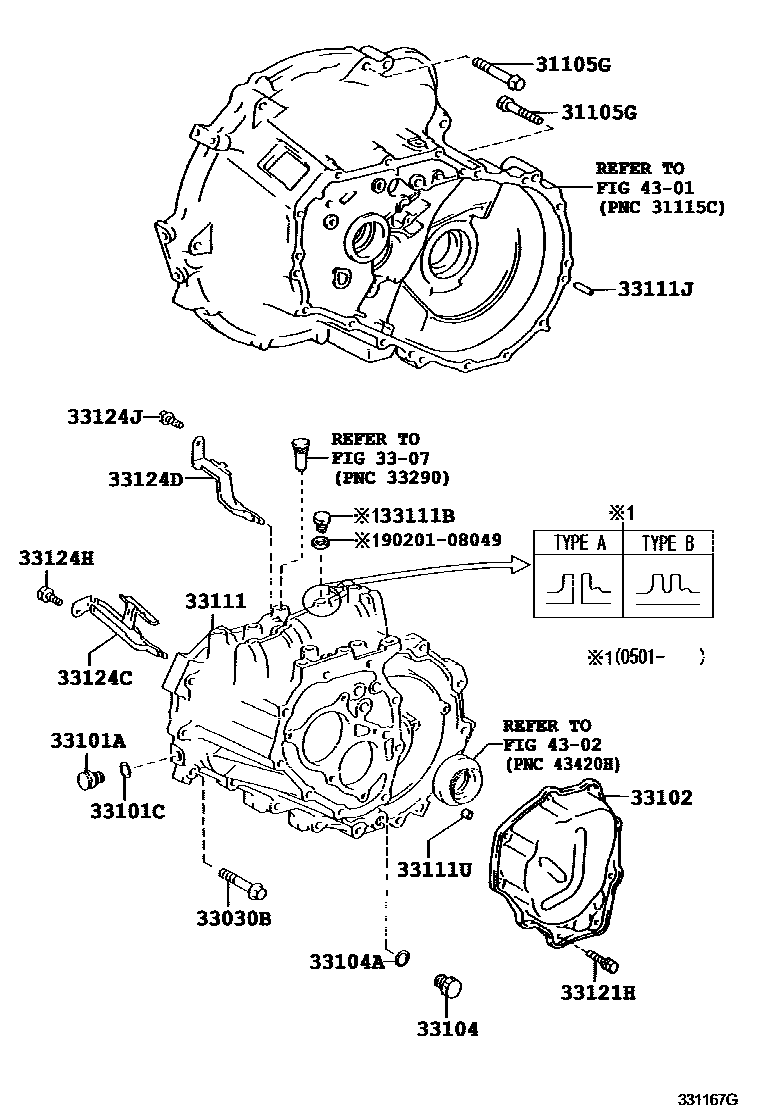

CLUTCH HOUSING & TRANSMISSION CASE (MTM)

31105GBOLT(FOR TRANSAXLE CASE & ENGINE SETTING)

main91612-61050iNCP2#,NLP2#..5F¥120199908-200509

*10-1.25PX50-30

33030BBOLT(FOR TRANSAXLE CASE & TRANSMISSION CASE SETTING)

main90105-08064iNCP21,NLP2#¥190200003-200211

*8-1.25PX51-28

sub90105-08353¥100

main90105-08086iNCP21,NLP2#¥110199908-200408

*8-1.25PX45-27.5

main90105-08353iNCP21,NLP2#¥100200211-200509

*8-1.25PX50-30

main90105-08430iNCP21,NLP2#¥100200408-200509

*8-1.25PX45-27.5

3307

33101APLUG(FOR MANUAL TRANSMISSION FILLER)

main90341-18006iNCP2#,NLP2#..5F¥180199908-200506

main90341-18033iNCP2#,NLP2#..5F¥190200506-200509

33101CGASKET(FOR MANUAL TRANSMISSION FILLER PLUG)

main90430-18008iNCP2#,NLP2#..5F¥110199908-200509

33102COVER SUB-ASSY, MANUAL TRANSMISSION CASE

main33102-10023iNCP20,22..5F¥3,540199908-200509

main33102-12021iNCP21,NLP2#¥9,800200003-200509

33104PLUG SUB-ASSY, DRAIN(MTM)

main90341-18006iNCP2#,NLP2#..5F¥180199908-200506

main90341-18033iNCP2#,NLP2#..5F¥190200506-200509

33104AGASKET, DRAIN PLUG(MTM)

main90430-18008iNCP2#,NLP2#..5F¥110199908-200509

33111CASE, MANUAL TRANSMISSION

main33111-16053iNCP20,22..5F¥35,200199908-200509

main33111-16063iNCP21,NLP2#¥38,200200003-200501

sub33111-16064¥35,200

sub90101-08166¥110

sub90201-08049¥90

main33111-16064iNCP21,NLP2#¥35,200200501-200509

TYPE A:REFER ILLUST.

sub33111-52140¥35,000

main33111-52110iNCP21,NLP2#¥35,200200501-200509

TYPE B:REFER ILLUST.

sub33111-16064¥35,200

sub90101-08166¥110

sub90201-08049¥90

33111BBOLT, STUD OR BOLT(FOR TRANSMISSION CASE)

main90101-08166iNCP21,NLP2#¥110200501-200509

*8-1.25PX14-12

33111JPIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)

main90250-08054iNCP2#,NLP2#..5F¥120199908-200509

L=23,OD=8

33111UPIN, RING(FOR MANUAL TRANSMISSION CASE)

main90253-11001iNCP21,NLP2#¥120200003-200509

L=11,OD=11

33121HBOLT, W/WASHER(FOR TRANSMISSION CASE COVER)

main90119-08373iNCP20,22..5F¥140200211-200509

main90119-08A34iNCP20,22..5F¥130199908-200211

sub90119-08373¥140

main91611-60835iNCP21,NLP2#¥90200003-200509

33124CPIPE, OIL RECEIVER, NO.1(MTM)

main33124-10012iNCP20,22..5F¥750199908-200509

main33124-20050iNCP21,NLP2#¥440200003-200509

33124DPIPE, OIL RECEIVER, NO.2(MTM)

main33124-10021iNCP20,22..5F¥1,260199908-200509

main33124-12021iNCP21,NLP2#¥720200003-200509

33124HBOLT(FOR OIL RECEIVER PIPE)

main91611-60820iNCP2#,NLP2#..5F¥200199908-200211

sub91611-G0820¥160

main91611-G0820iNCP2#,NLP2#..5F¥160200211-200509

33124JBOLT, W/WASHER

main91611-60820iNCP2#,NLP2#..5F¥200199908-200211

sub91611-G0820¥160

main91611-G0820iNCP2#,NLP2#..5F¥160200211-200509

4301

4302

9020108049

main90201-08049¥90

20 parts on this diagram · 1 diagram in section
