TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (MTM)

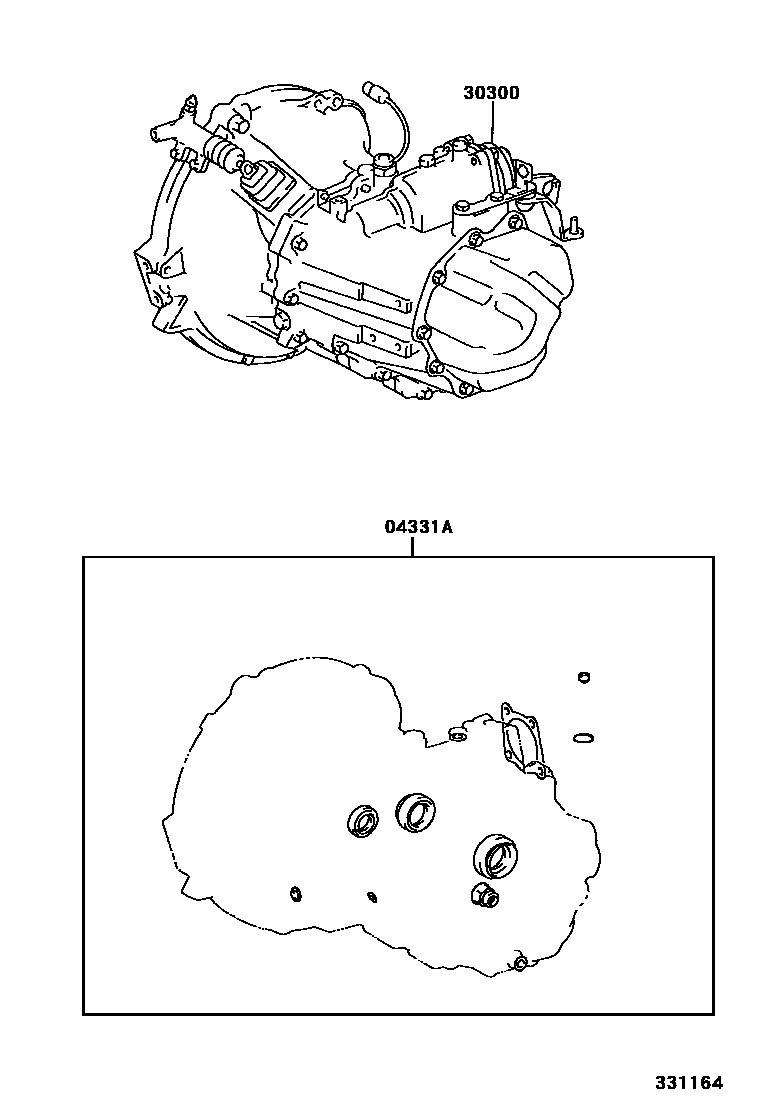

Parts diagram
04331AGASKET KIT, TRANSAXLE OVERHAUL(MTM)
main04331-13040i200407-200410
sub04331-52270
main04331-52040i199908-200211
sub04331-52190
main04331-52120i200407-200508
sub04331-52270
30300TRANSAXLE ASSY, MANUAL
main30300-52080i199908-200109
main30300-52081i200109-200211
sub30300-52082
main30300-52090i200003-200109
main30300-52091i200109-200211
sub30300-52092
main30300-52240i200110-200211
sub30300-52241

2 parts on this diagram · 1 diagram in section
