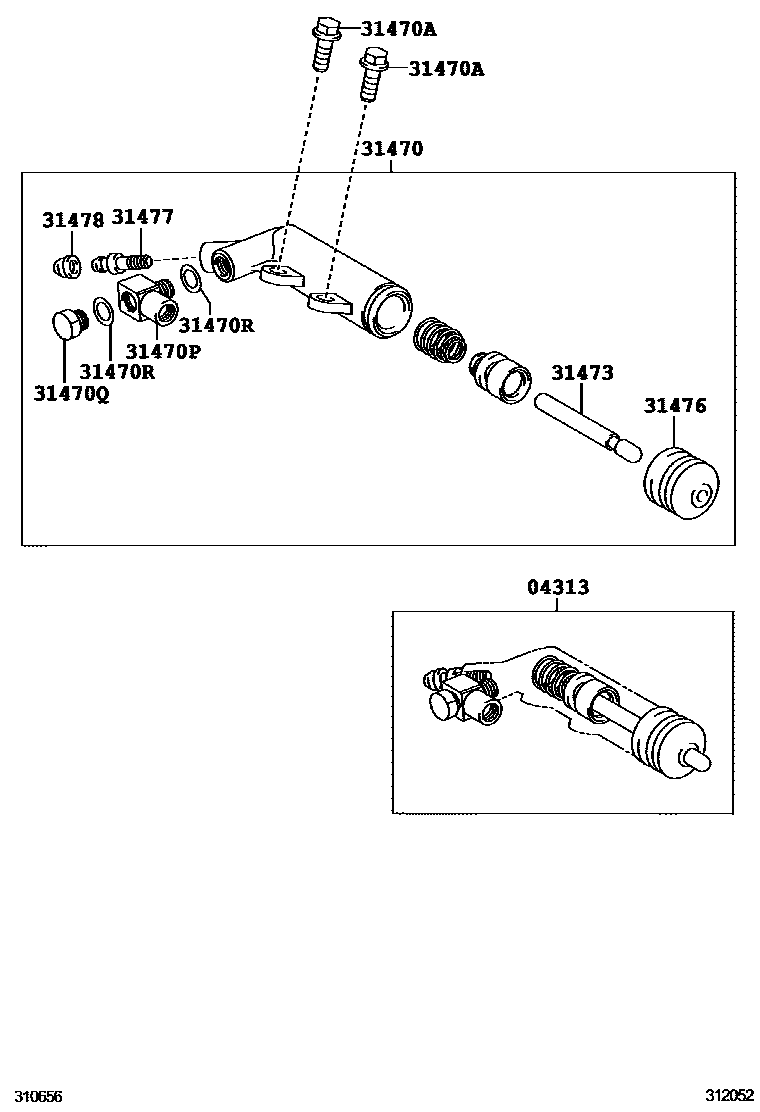

CLUTCH RELEASE CYLINDER

04313CYLINDER KIT, CLUTCH RELEASE

main04313-12060iNCP2#..5F200407-200509

main04313-18020iNCP2#..5F199908-200109

main04313-35060iNCP2#..5F200109-200407

main04313-52020iNLP2#200110-200509

31470CYLINDER ASSY, CLUTCH RELEASE

main31470-52010iNCP2#..5F199908-200109

sub31470-52011

main31470-52011iNCP2#..5F200109-200509

sub31470-12200

main31470-52061iNLP2#200110-200509

31470ABOLT(FOR CLUTCH RELEASE CYLINDER SETTING)

main91611-60822iNCP2#,NLP2#..5F199908-200509

*8-1.25PX22-17.1

31470PUNION(FOR CLUTCH RELEASE)

main90405-10073iNCP2#,NLP2#..5F199908-200509

31470QBOLT, UNION(FOR CLUTCH RELEASE)

main90401-10056iNCP2#,NLP2#..5F199908-200509

31470RGASKET(FOR CLUTCH RELEASE)

main90029-43002iNCP2#,NLP2#..5F200407-200509

main90430-10074iNCP2#,NLP2#..5F199908-200407

31473ROD, CLUTCH RELEASE CYLINDER PUSH, NO.1

main31473-32010iNCP2#..5F199908-200211

main31473-35050iNCP2#,NLP2#..5F200110-200509

31476BOOT, CLUTCH RELEASE CYLINDER

main31476-22010iNCP2#,NLP2#..5F199908-200509

31477PLUG, BLEEDER(FOR RELEASE CYLINDER)

main47547-20010iNCP2#,NLP2#..5F199908-200509

31478CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)

main31478-30010iNCP2#,NLP2#..5F199908-200509

10 parts on this diagram · 1 diagram in section
