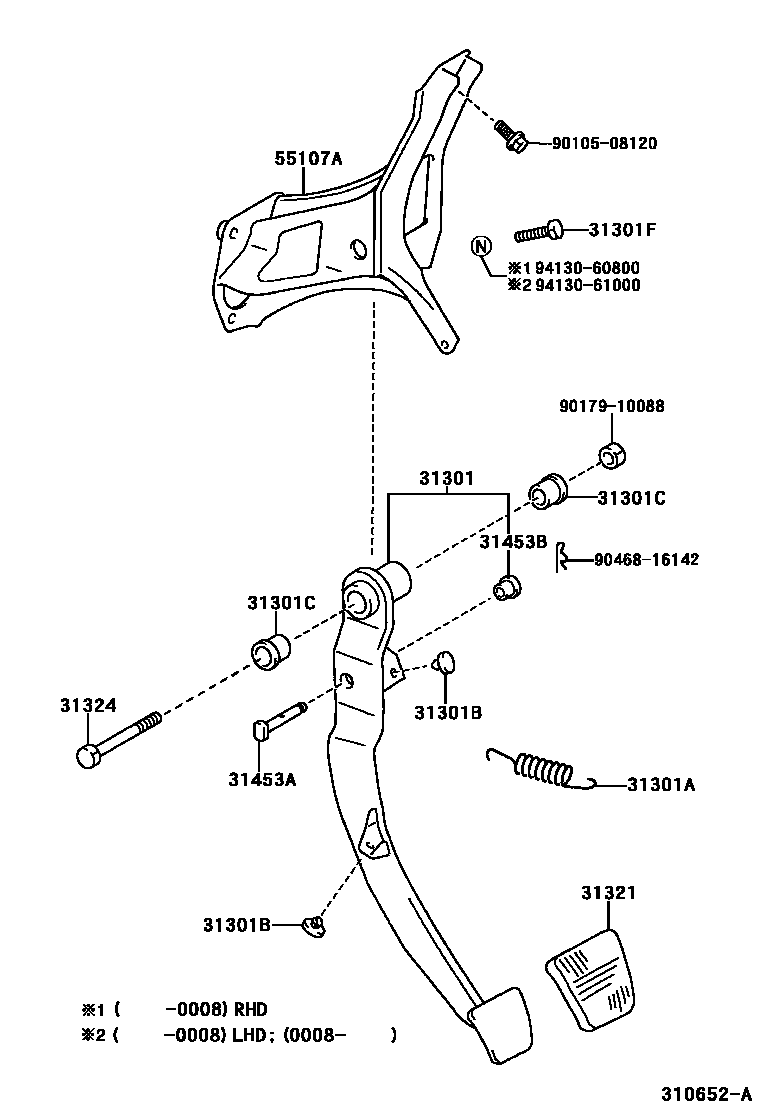

CLUTCH PEDAL & FLEXIBLE HOSE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

31301PEDAL SUB-ASSY, CLUTCH

main31301-52010iNCP2#..RHD..5F199908-200509

sub31301-52030

main31301-52020iNCP2#..LHD..5F199908-200509

main31301-52060iNLP2#..RHD200110-200509

sub31301-52090

main31301-52070iNLP2#..LHD200110-200509

31301ASPRING(FOR CLUTCH PEDAL)

main90507-14047iNCP2#,NLP2#..5F199908-200509

31301BCUSHION, NO.1(FOR CLUTCH PEDAL)

main90541-06036iNCP2#,NLP2#..RHD..5F199908-200509

31301CBUSH(FOR CLUTCH PEDAL)

main90386-13015iNCP2#,NLP2#..5F199908-200509

31301FBOLT(FOR CLUTCH PEDAL STOPPER)

main90101-08052iNCP2#..RHD..5F199908-200008

main90101-10369iNCP2#..LHD..5F199908-200509

main91112-41025iNLP2#..LHD200110-200211

sub91112-61025

main91112-61025iNLP2#..LHD200211-200509

31321PAD, CLUTCH PEDAL

main31321-52010iNCP2#,NLP2#..5F199908-200509

31324SHAFT, CLUTCH PEDAL

main90109-10167iNCP2#,NLP2#..5F199908-200509

31453APIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90249-08243iNCP2#,NLP2#..RHD..5F199908-200509

L=30

main90249-08294iNCP2#,NLP2#..LHD..5F199908-200509

L=48.5

31453BBUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90386-08002iNCP2#,NLP2#..5F199908-200509

55107ASUPPORT SUB-ASSY, CLUTCH PEDAL

main55107-52010iNCP2#..RHD..5F199908-200008

sub55107-52011

main55107-52011iNCP2#..RHD..5F200008-200509

sub55107-52050

main55107-52021iNCP2#..LHD..5F199908-200211

sub55107-52040

main55107-52040iNCP2#..LHD..5F200211-200509

main55107-52070iNLP2#..RHD200110-200509

main55107-52080iNLP2#..LHD200110-200509

9010508120

main90105-08120

9017910088

main90179-10088

9046816142

main90468-16142

9413060800

main94130-60800

9413061000

main94130-61000

15 parts on this diagram · 6 diagrams in section
