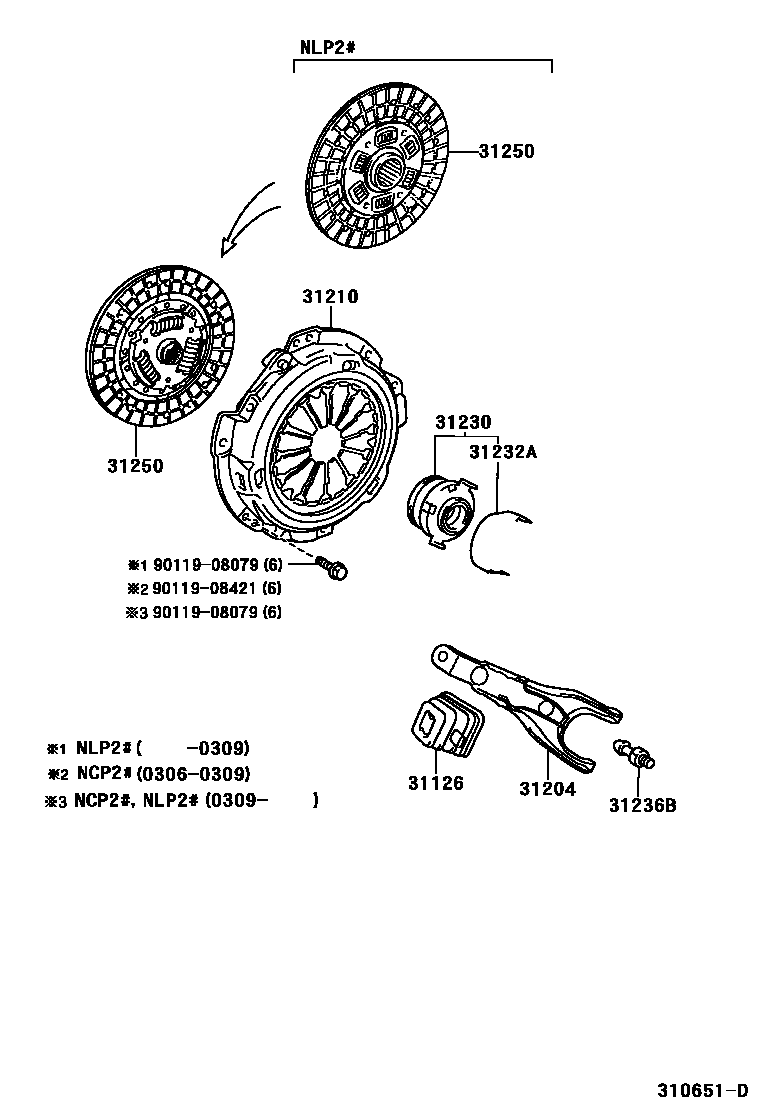

CLUTCH & RELEASE FORK

31126BOOT, CLUTCH RELEASE FORK

main31126-12051iNCP2#,NLP2#..5F199908-200509

31204FORK SUB-ASSY, CLUTCH RELEASE

main31204-52010iNCP2#,NLP2#..5F199908-200509

31210COVER ASSY, CLUTCH

main31210-12191iNCP2#..5F199908-200406

sub31210-12192

main31210-12192iNCP2#..5F200407-200509

sub31210-52070

main31210-52020iNLP2#200110-200509

sub31210-12310

31230BEARING ASSY, CLUTCH RELEASE

main31230-12180iNCP2#,NLP2#..5F200109-200509

sub31230-12181

main31230-52020iNCP2#..5F199908-200109

31232ACLIP, RELEASE BEARING HUB

main31232-12080iNCP2#,NLP2#..5F200109-200509

main31232-52020iNCP2#..5F199908-200109

31236BSUPPORT, RELEASE FORK

main31236-12020iNCP2#,NLP2#..5F199908-200509

31250DISC ASSY, CLUTCH

main31250-12360iNCP2#..5F199908-200509

sub31250-12361

main31250-52020iNLP2#200110-200502

sub31250-52021

main31250-52021iNLP2#200503-200509

sub31250-52110

9011908079

main90119-08079

9011908421

main90119-08421

9 parts on this diagram · 1 diagram in section
