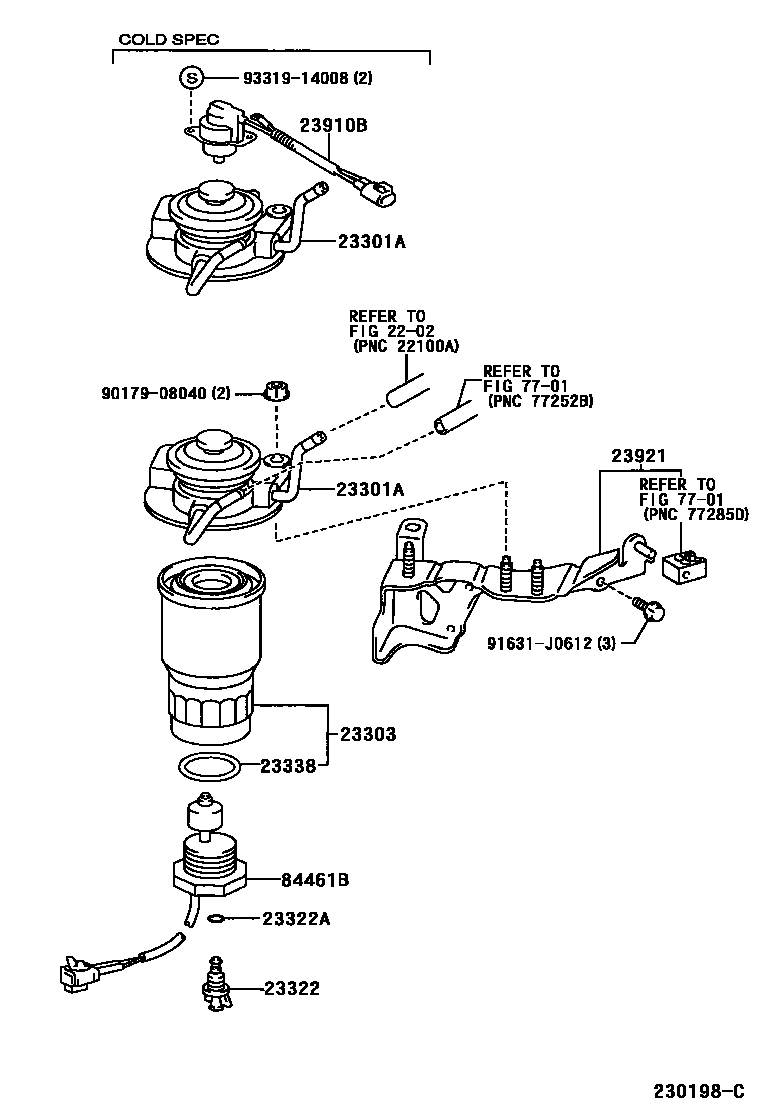

FUEL FILTER

0001 1 0002 1

2202

23301ACAP ASSY, FUEL FILTER

main23380-33010i1NDTV..NLP2#200110-200206

sub23380-33011

main23380-33020i1NDTV..NLP2#..LHD200110-200206

COLD SPEC

sub23380-33021

main23380-33020i1NDTV..NLP2#200206-200509

sub23380-33021

23303ELEMENT SUB-ASSY, FUEL FILTER

main23390-33010i1NDTV..NLP2#200110-200509

sub23390-33030

23322PLUG, DRAIN(FOR FUEL FILTER)

main23388-64470i1NDTV..NLP2#200110-200509

23322ARING, O(FOR DRAIN PLUG)

main23344-54010i1NDTV..NLP2#200110-200509

23338GASKET(FOR WARNING SWITCH)

main23344-64010i1NDTV..NLP2#200110-200509

23910BHEATER ASSY, FUEL

main23910-54100i1NDTV..NLP2#..LHD200110-200509

23921SUPPORT, FUEL FILTER

main23904-33010i1NDTV..NLP2#200110-200509

7701

84461BSWITCH, LEVEL WARNING

main84461-28040iNLP2#200110-200509

sub84461-28041

9017908040

main90179-08040

91631J0612

main91631-J0612

9331914008

main93319-14008

13 parts on this diagram · 2 diagrams in section
