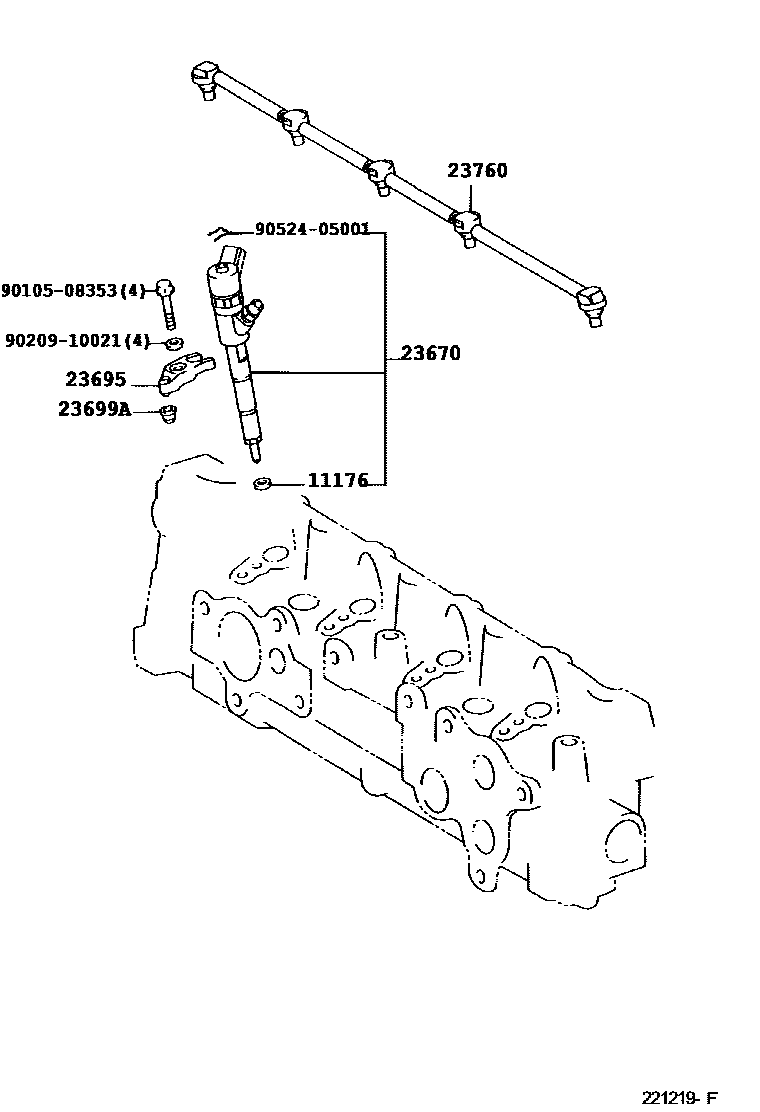

INJECTION NOZZLE

11176SEAT, INJECTION NOZZLE

main11176-33010i1NDTV..NLP2#200110-200211

23670INJECTOR ASSY

main23670-39055-A0i1NDTV..NLP2#200110-200311

REFER TO REPAIR MANUAL,MARK A

main23670-39055-B0i1NDTV..NLP2#200110-200311

REFER TO REPAIR MANUAL,MARK B

main23670-39055-C0i1NDTV..NLP2#200110-200311

REFER TO REPAIR MANUAL,MARK C

main23670-39115-A0i1NDTV..NLP2#200311-200509

REFER TO REPAIR MANUAL,MARK A

main23670-39115-B0i1NDTV..NLP2#200311-200509

REFER TO REPAIR MANUAL,MARK B

main23670-39115-C0i1NDTV..NLP2#200311-200509

REFER TO REPAIR MANUAL,MARK C

23695CLAMP, NOZZLE HOLDER, NO.1

main23695-33010i1NDTV..NLP2#200110-200211

23699ASEAT, NOZZLE HOLDER CLAMP

main23699-33010i1NDTV..NLP2#200411

main23699-74010i1NDTV..NLP2#200110-200411

sub23699-33010

23760PIPE ASSY, NOZZLE LEAKAGE

main23760-33010i1NDTV..NLP2#200110-200211

9010508353

main90105-08353

9020910021

main90209-10021

9052405001

main90524-05001

8 parts on this diagram · 1 diagram in section
