ALTERNATOR

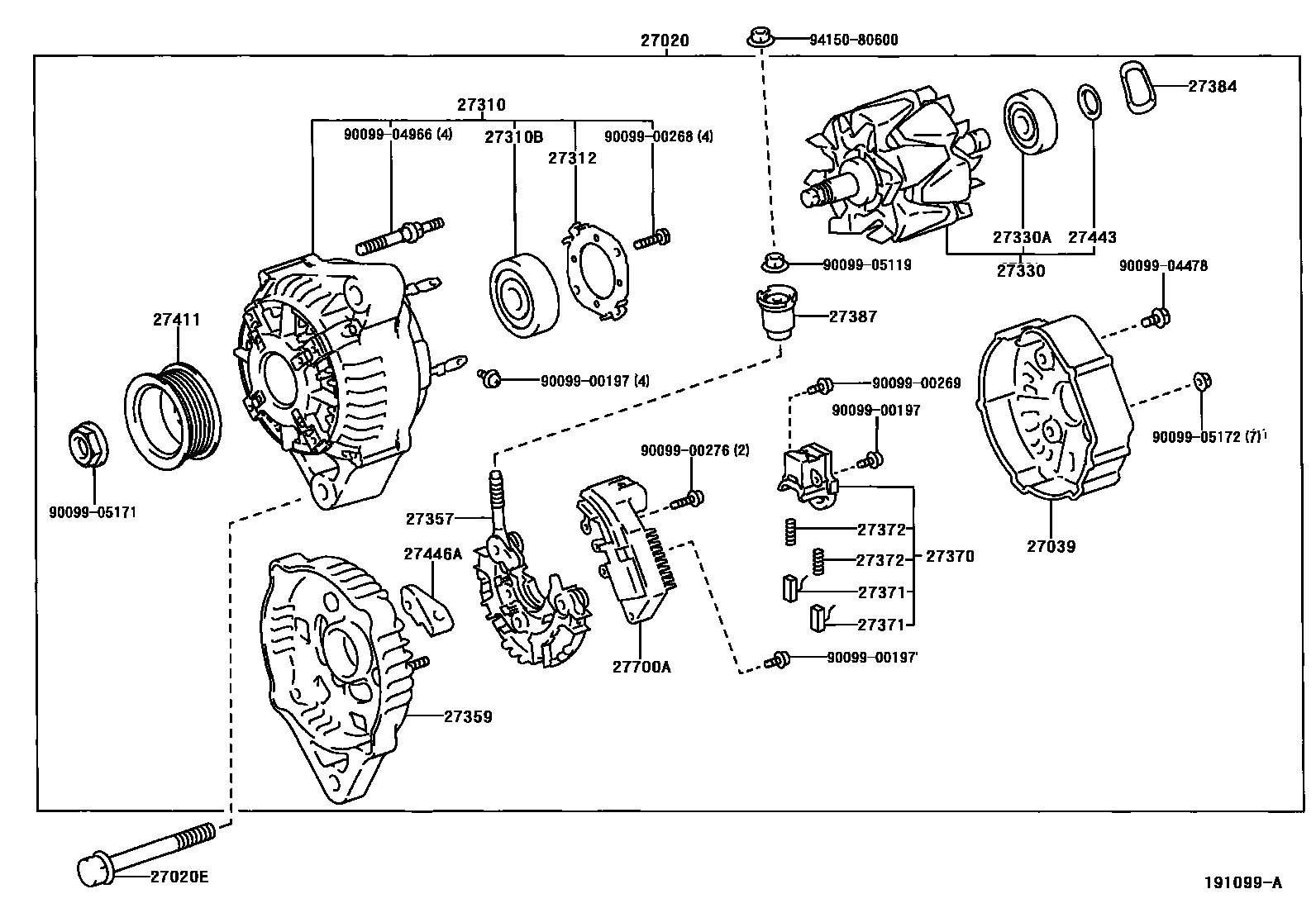

Parts diagram
27020ALTERNATOR ASSY
main27060-21010i199908-200305
12V 70A
sub27060-21011
main27060-21011i200305-200509
12V 70A
main27060-21020i199908-200304
12V 90A
sub27060-21030
main27060-21030i199908-200305
12V 80A
sub27060-21031
main27060-21031i200305-200509
12V 80A
main27060-33030i200110-200509
12V 90A,MARK = ND
sub27060-33040
main27060-33040i200110-200509
12V 90A,MARK = NE
27020EBOLT(FOR ALTERNATOR)
main90105-10075i199908-200509
27039COVER, ALTERNATOR REAR END
main27039-21020i199908-200104
12V 70A
sub27039-21060
main27039-21060i200104-200211
12V 70A
main27039-22050i200104-200211
12V 80A,90A
main27039-28090i200110-200211
main27039-46190i199908-200104
12V 80A,90A
sub27039-22050
27310FRAME ASSY, DRIVE END, ALTERNATOR
main27310-21020i199908-200211
12V 70A
main27310-21030i199908-200211
12V 80A
main27310-21040i199908-200211
12V 90A
main27310-33070i200110-200211
27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)
main90099-10142i200110-200211
sub90099-10223
main90099-10219i199908-200211
12V 80A,90A
main90099-10220i199908-200211
12V 70A
27312PLATE, RETAINER
main27312-42010i199908-200211
12V 80A,90A
main27312-42010i200110-200211
main27312-72100i199908-200211
12V 70A
27330ROTOR ASSY, ALTERNATOR
main27330-16390i199910-200509
12V 80A
main27330-23020i199908-199910
12V 80A
sub27330-16390
main27330-67100i199908-200509
12V 70A
main27330-74550i200110-200509
main27330-74550i199910-200304
12V 90A
main27330-74730i199908-199910
12V 90A
sub27330-74550
27330ABEARING(FOR ALTERNATOR ROTOR)
main90099-10140i199908-200211
12V 80A,90A
main90099-10140i200110-200211
main90099-10216i199908-200211
12V 70A
27357HOLDER, ALTERNATOR, W/RECTIFIER
main27357-21060i200204-200509
12V 70A
main27357-22050i200204-200509
12V 80A
main27357-22070i200110-200509
main27357-22070i200204-200304
12V 90A
main27357-23040i199908-200204
12V 80A
main27357-23050i199908-200204
12V 90A
sub27357-22070
main27357-67100i199908-200204
12V 70A
27359FRAME, ALTERNATOR RECTIFIER END
main27359-21020i199908-200211
12V 70A
main27359-21030i199908-200211
12V 80A,90A
main27359-21030i200110-200211
27370HOLDER ASSY, ALTERNATOR BRUSH
main27370-35060i199908-200509
12V 70A
main27370-75060i200110-200211
main27370-75060i199908-200509
12V 80A,90A
27371BRUSH, ALTERNATOR
main27371-70300i199908-200211
27372SPRING, ALTERNATOR BRUSH
main27372-63020i199908-200211
sub27372-87501
27384WASHER
main27384-16380i199908-200211
12V 70A
main27384-50030i199908-200211
12V 80A,90A
main27384-50030i200110-200211
27387INSULATOR, TERMINAL
main27387-42021i199908-200211
12V 80A,90A
main27387-42021i200110-200211
main27387-70171i199908-200211
12V 70A
27411PULLEY, ALTERNATOR
main27411-11060i199908-200305
12V 80A,90A
main27411-21030i200305-200509
12V 80A
main27411-65010i199908-200305
12V 70A
main27411-70140i200305-200509
12V 70A
main27411-74070i200110-200509
27443COVER, ALTERNATOR BEARING
main27443-63020i199908-200211
27446ACLAMP
main27446-21020i199908-200211
27700AREGULATOR ASSY, GENERATOR
main27700-21010i199908-200509
9009900197
main90099-00197
9009900268
main90099-00268
9009900269
main90099-00269
9009900276
main90099-00276
9009904478
main90099-04478
9009904966
main90099-04966
9009905119
main90099-05119
9009905171
main90099-05171
9009905172
main90099-05172
9415080600
main94150-80600
