VACUUM PIPING

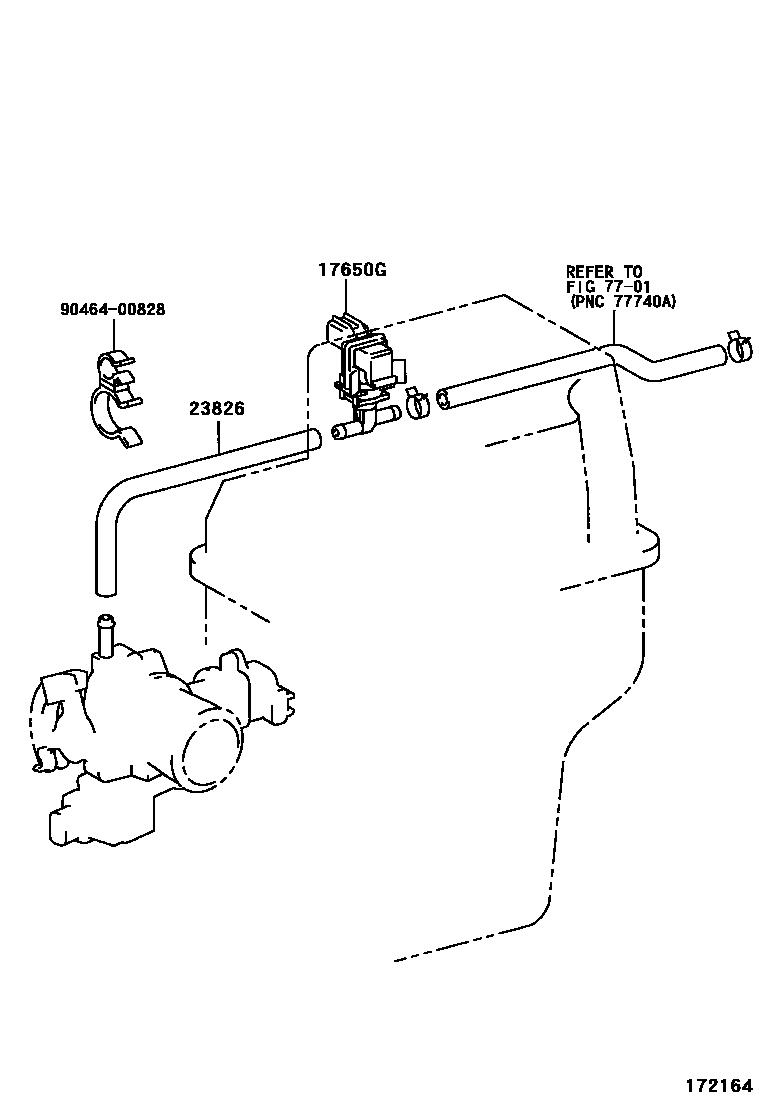

Parts diagram

17650GVALVE, DUTY VACUUM SWITCHING

main90910-12202i199908-200509

23826HOSE, FUEL VAPOR FEED, NO.1

main95328-07036i199908-200509

7701

9046400828

main90464-00828

4 parts on this diagram · 2 diagrams in section
