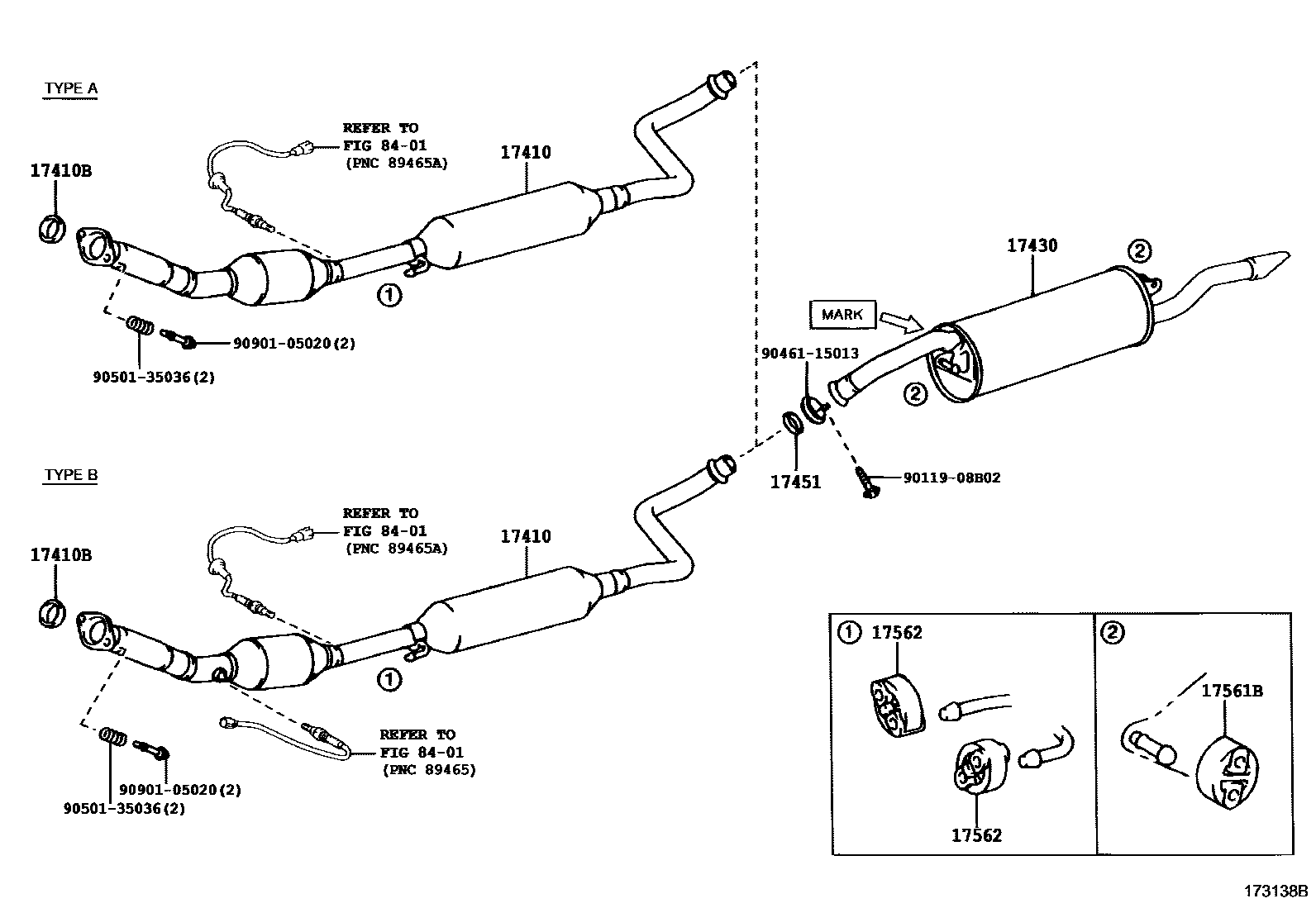

EXHAUST PIPE

0001 1 0002 1

17410PIPE ASSY, EXHAUST, FRONT

main17410-21100i2NZFE..NCP20,22..5F199908-200211

*115=TOYOTA/99-02/Y,TYPE B:REFER ILLUST.

sub17410-21101

main17410-21110i2NZFE..NCP20..ATM199908-200211

*115=TOYOTA/99-02/Y,TYPE B:REFER ILLUST.

sub17410-21111

main17410-21170i1NZFE..NCP21200003-200211

*115=TOYOTA/00-02/Y,TYPE B:REFER ILLUST.

sub17410-21171

main17410-21361i1NDTV..NLP2#200110-200509

sub17410-21362

main17410-21560i1NZFE,2NZFE..NCP2#200211-200509

*115=TOYOTA/02-/Y,TYPE A:REFER ILLUST.

sub17410-21561

main17410-21570i1NZFE,2NZFE..NCP2#200211-200509

*115=TOYOTA/02-/Y,TYPE B:REFER ILLUST.

sub17410-21571

17410BGASKET, EXHAUST PIPE

main17451-21030i1N#,2NZFE..NCP2#,NLP2#199908-200509

17430PIPE ASSY, EXHAUST, TAIL

main17430-21040i2NZFE..NCP20,22199908-200211

main17430-21050i1NZFE..NCP21200003-200211

sub17430-21051

main17430-21051i1NZFE,2NZFE..NCP2#200211-200509

MARK H:REFER TO ILLUSTRATION

sub17430-21052

main17430-21271i1NDTV..NLP2#200110-200509

sub17430-21272

main17430-21420i1NZFE,2NZFE..NCP2#200211-200509

MARK R:REFER TO ILLUSTRATION

sub17430-21421

17451GASKET, EXHAUST PIPE

main90917-06082i1N#,2NZFE..NCP2#,NLP2#199908-200509

17561BSUPPORT, EXHAUST PIPE, NO.1

main17565-74280i1N#,2NZFE..NCP2#,NLP2#199908-200509

17562SUPPORT, EXHAUST PIPE, NO.2

main17562-23040i1N#,2NZFE..NCP2#,NLP2#199908-200509

8401

9011908B02

main90119-08B02

9046115013

main90461-15013

9050135036

main90501-35036

9090105020

main90901-05020

11 parts on this diagram · 2 diagrams in section
