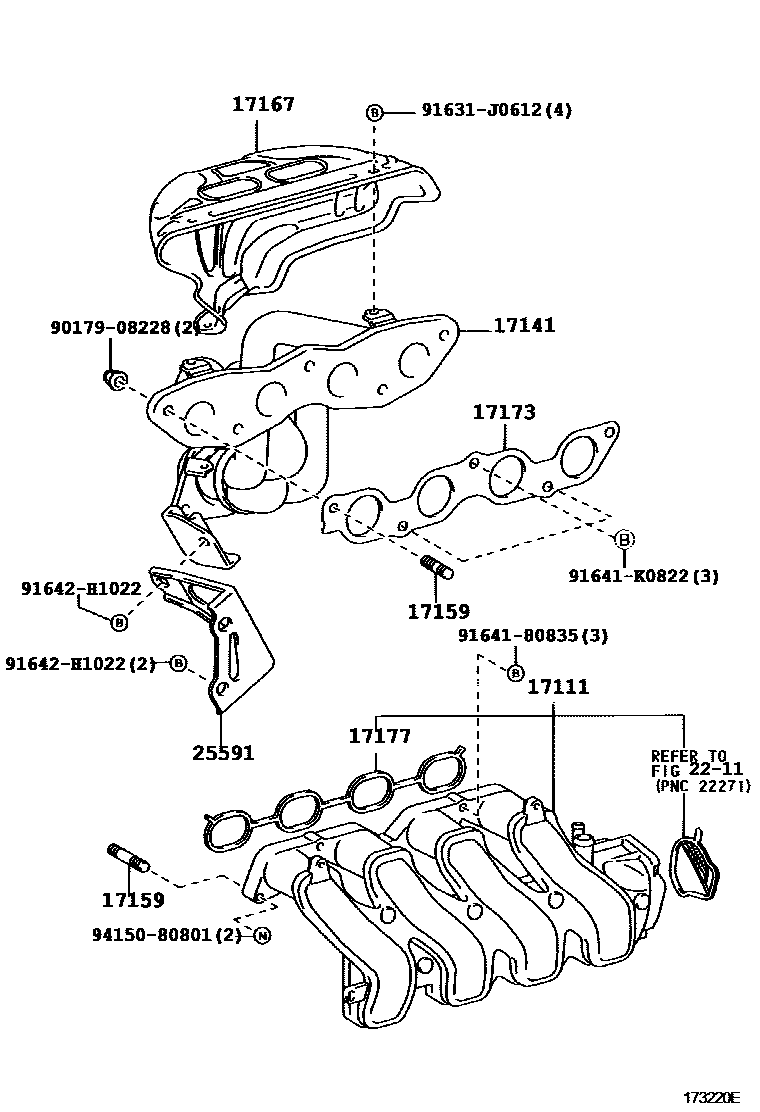

MANIFOLD
17141MANIFOLD, EXHAUST
TYPE B:REFER TO ILLUSTRATION
TYPE B:REFER TO ILLUSTRATION
TYPE A:REFER TO ILLUSTRATION
TYPE A:REFER TO ILLUSTRATION
17159BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
INTAKE SIDE
INTAKE SIDE
EXHAUST SIDE
17167INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
TYPE B:REFER TO ILLUSTRATION
TYPE B:REFER TO ILLUSTRATION
TYPE A:REFER TO ILLUSTRATION
17173GASKET, EXHAUST MANIFOLD TO HEAD
17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1
sub17177-21030
2211
25591BRACKET, MANIFOLD SUPPORT
9017908228
main90179-08228
91631J0612
main91631-J0612
9164180835
main91641-80835
91641K0822
main91641-K0822
91642H1022
main91642-H1022
9415080801
main94150-80801
14 parts on this diagram · 3 diagrams in section
