TIMING GEAR COVER & REAR END PLATE

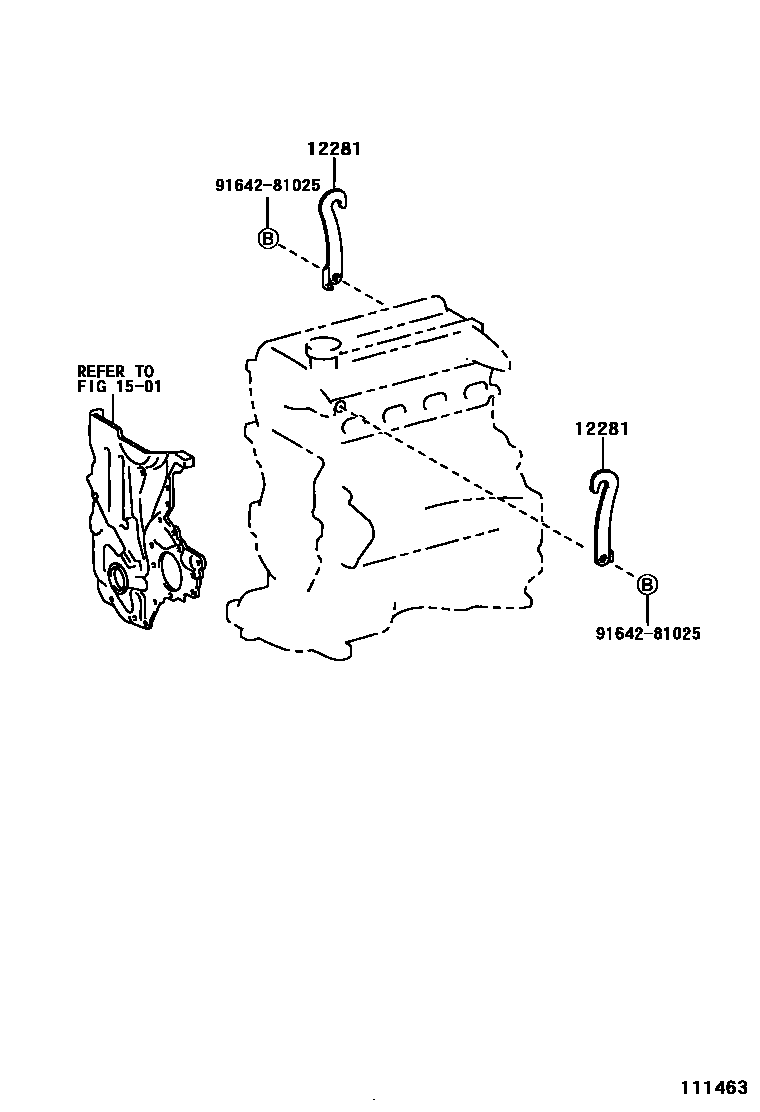

Parts diagram
12281HANGER, ENGINE, NO.1
main12281-21010i199908-200211
1501
9164281025
main91642-81025

3 parts on this diagram · 1 diagram in section
