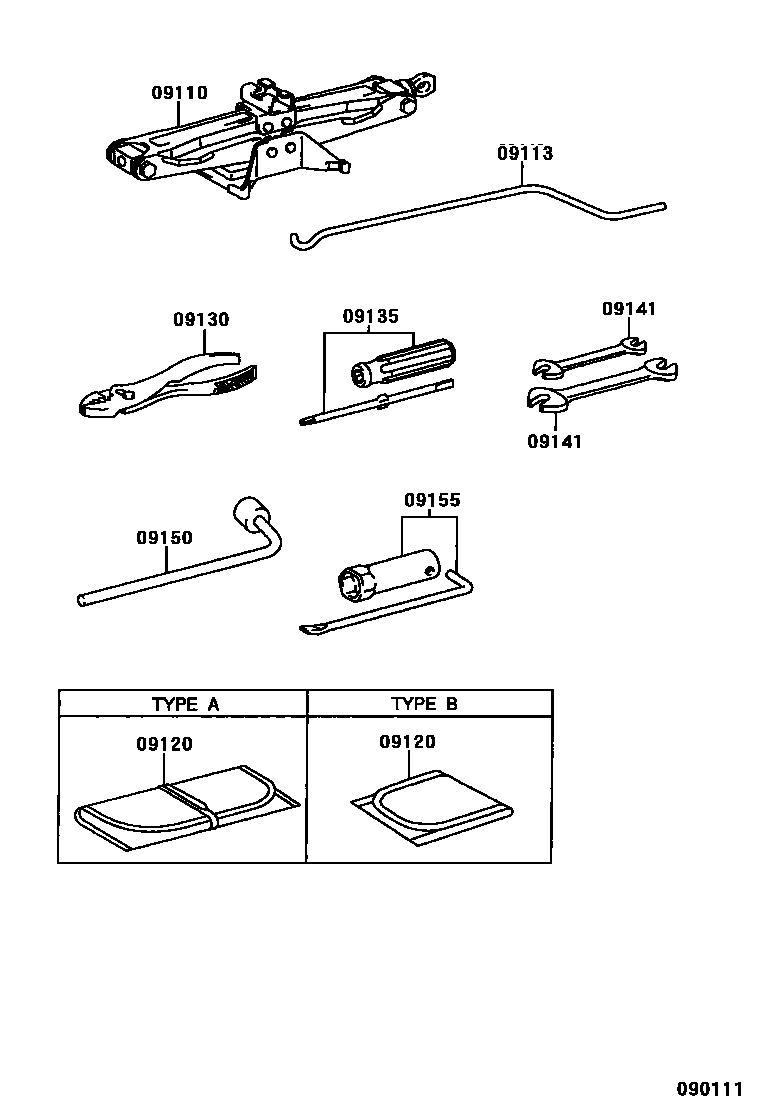

STANDARD TOOL

09110JACK ASSY

main09111-52010iNCP2#,NLP2#199908-200509

09113HANDLE, JACK

main09113-52010iNCP2#,NLP2#199908-200509

09120BAG, TOOL

main09120-16030iNCP2#,NLP2#199908-200211

TYPE A:REFER TO ILLUSTRATION

main09120-48010iNCP2#,NLP2#..LHD199908-200509

TYPE B:REFER TO ILLUSTRATION

09130PLIERS

main99913-11500iNCP2#,NLP2#199908-200211

09135DRIVER, SCREW

main99915-10700iNCP2#,NLP2#199908-200509

09141SPANNER

main99914-10810iNCP2#,NLP2#199908-200509

8 X 10

main99914-11214iNCP2#,NLP2#199908-200211

12 X 14

09150WRENCH, HUB NUT BOX

main09150-40010iNCP2#,NLP2#199908-200509

09155WRENCH, SPARK PLUG

main09155-74010iNCP2#199908-200211

8 parts on this diagram · 1 diagram in section
