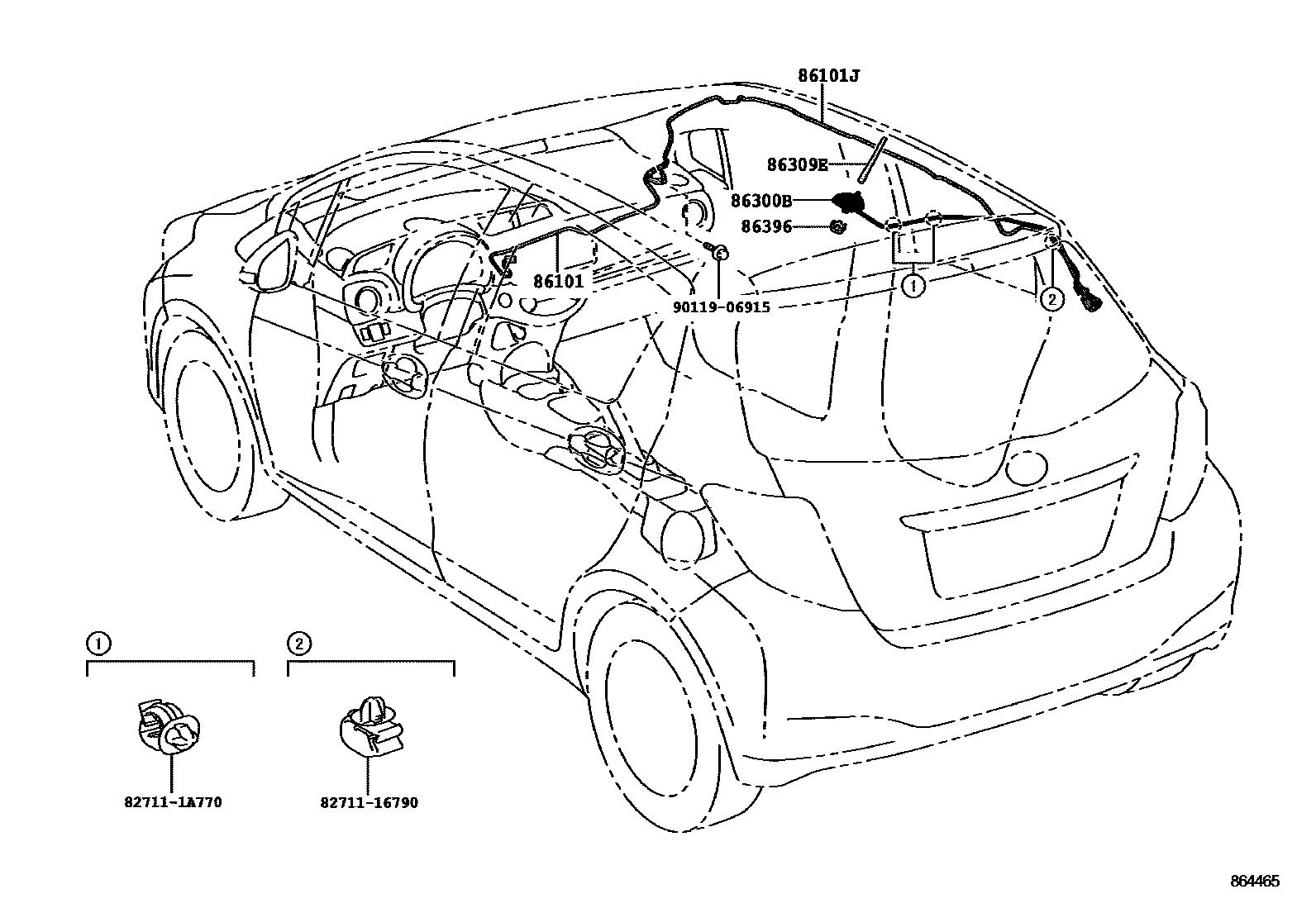

ANTENNA

0001 1 0002 1

86101CORD SUB-ASSY, ANTENNA

main86101-52860iKSP130,NSP130..RHD¥4,760201108

main86101-52890iKSP130,NSP130..LHD201108-201208

86101JCORD SUB-ASSY, ANTENNA, NO.2

main86101-52830iKSP130,NSP130¥5,400201108

86300BANTENNA ASSY, AMPLIFIER, NO.1

main86300-52520iKSP130,NSP130201108-201205

main86300-52590iKSP130,NSP130¥5,200201205

86309EPOLE SUB-ASSY, ROOF ANTENNA

main86309-42080iKSP130,NSP130¥2,060201108-201207

main86309-47020iNSP130¥2,710201208

86396NUT, ANTENNA

main86396-47010iKSP130,NSP130¥430201108

8271116790WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-16790¥120

827111A770WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1A770¥90

9011906915

main90119-06915¥60

8 parts on this diagram · 2 diagrams in section
