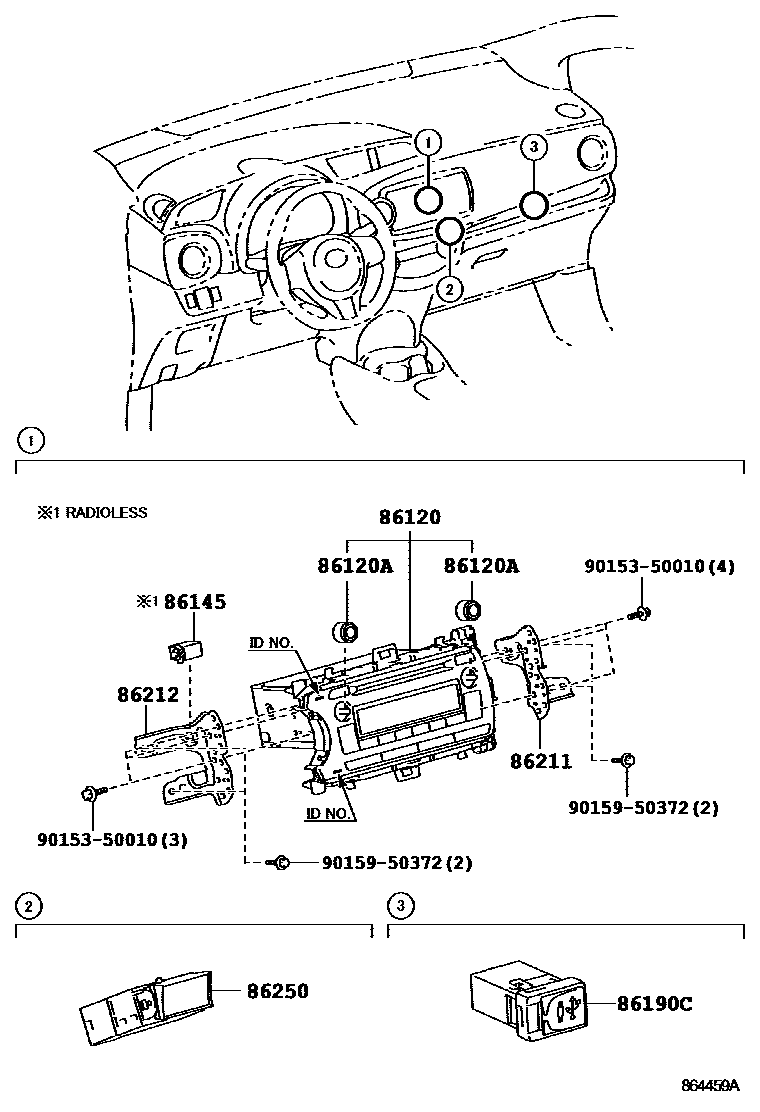

RADIO RECEIVER & AMPLIFIER & CONDENSER

0001 1 0002 1 0003 1CONDENSER

86120RECEIVER ASSY, RADIO

main86120-52B40iKSP130,NSP130..LHD..R201108-201208

PANASONIC,ID=53863

main86120-52B40iKSP130,NSP130..LHD..R201108-201208

PANASONIC,ID=53863,AUDIO-CD & 6SPEAKER & WITHOUT(BLUETOOTH)

main86120-52B60iKSP130,NSP130..RHD..R201108-201208

PANASONIC,ID=53866

main86120-52B60iKSP130,NSP130..RHD..R201108-201208

PANASONIC,ID=53866,AUDIO-CD & 6SPEAKER & WITHOUT(BLUETOOTH)

main86140-52030iKSP130,NSP130..LHD..ACTV¥182,000201108-201208

FUJITSU TEN,ID=19004

main86140-52040iKSP130,NSP130..RHD..ACTV201108-201208

FUJITSU TEN,ID=19005

86120AKNOB, RADIO RECEIVER SWITCH

main90010-23033iKSP130,NSP130..ACTV201108-201208

main90010-24149iKSP130,NSP130..R¥160201108-201208

AUDIO-CD & 6SPEAKER & WITHOUT(BLUETOOTH)

86145CONNECTOR, ANTENNA MALE

main86145-52010iNSP130¥170201208

86190CADAPTER ASSY, STEREO JACK, NO.1

main86190-52060iKSP130,NSP130¥8,900201108-201208

AUDIO-RADIO LESS & 6SPEAKER

86211BRACKET, RADIO, NO.1

main86211-52250iKSP130,NSP130¥680201108

86212BRACKET, RADIO, NO.2

main86212-52180iKSP130,NSP130¥680201108

86250MICROPHONE ASSY, AMPLIFIER

main86250-52070iKSP130,NSP130..LHD..ACTV201108-201208

AUDIO-RADIO LESS & 6SPEAKER

main86250-52070iKSP130,NSP130..LHD..ACTV201108-201208

AUDIO-CD & 6SPEAKER & WITHOUT(BLUETOOTH)

9015350010

main90153-50010¥70

9015950372

main90159-50372¥60

9 parts on this diagram · 3 diagrams in section
