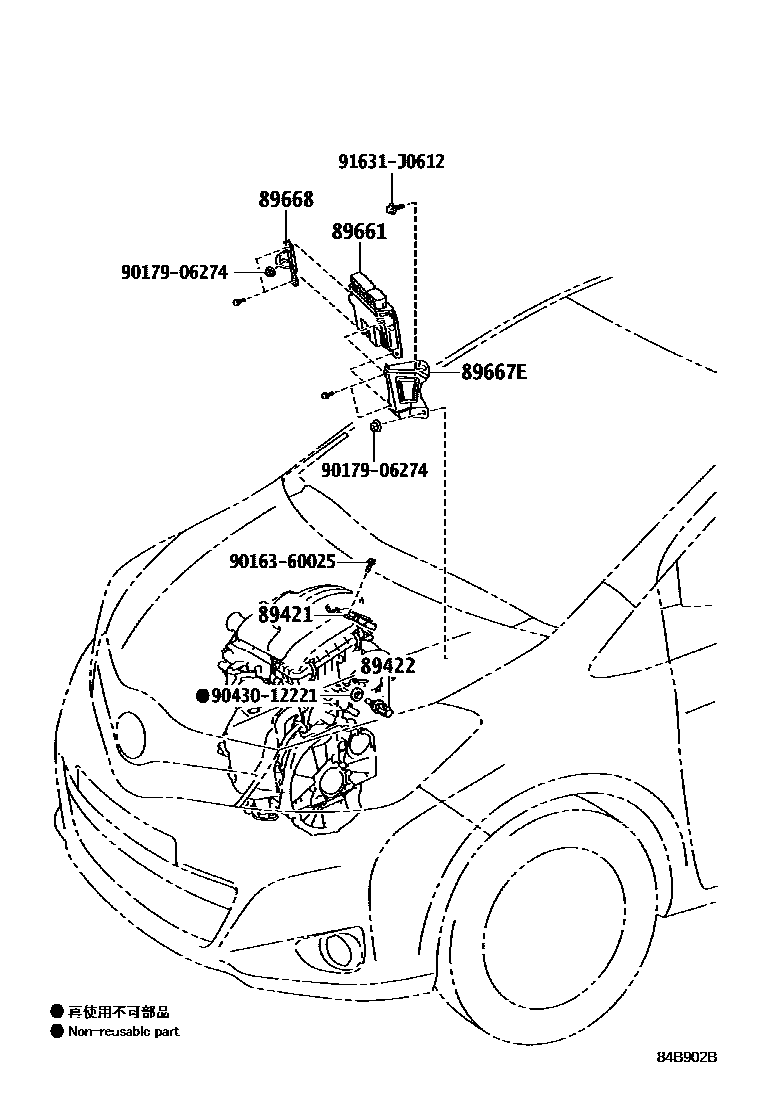

ELECTRONIC FUEL INJECTION SYSTEM

0001 1 0002 1 0003 1 0004 1

89421SENSOR ASSY, VACUUM (FOR E.F.I.)

main89421-26030iNSP130201108-201407

main89421-52010iKSP130201108-201208

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-33030iKSP130,NSP130201108

89661COMPUTER, ENGINE CONTROL

main89661-0DF10iKSP130201108-201208

main89661-52R80iNSP130..6F201108-201208

sub89661-0DP41

main89661-52R90iNSP130..CVFC201108-201209

sub89661-0DP51

main89661-52S10iNSP130201209-201306

sub89661-52Z90

main89661-52Z90iNSP130201307-201308

sub89661-52Z91

main89661-52Z91iNSP130201308-201407

89667EBRACKET, ENGINE CONTROL COMPUTER, NO.1

main89667-52210iKSP130..LHD201108-201208

main89667-52220iKSP130..RHD201108-201208

main89667-52330iNSP130..LHD201108-201208

main89667-52340iNSP130..RHD201108-201407

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-52230iKSP130..LHD201108-201208

main89668-52240iKSP130..RHD201108-201208

main89668-52340iNSP130..LHD201108-201208

main89668-52350iNSP130..RHD201108-201407

9016360025

main90163-60025

9017906274

main90179-06274

9043012221

main90430-12221

91631J0612

main91631-J0612

9 parts on this diagram · 4 diagrams in section
