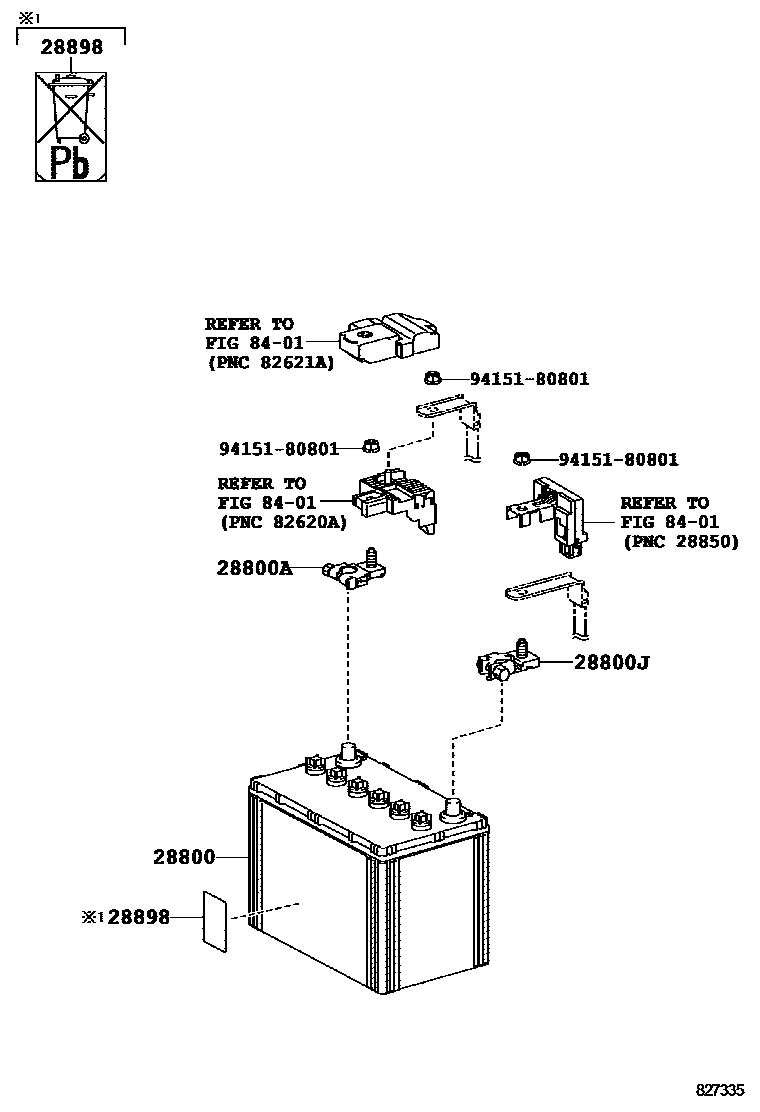

BATTERY & BATTERY CABLE

28800BATTERY

main28800-20060i1KRFE..KSP130201204-201407

55B24L(S),FURUKAWA

sub28800-20061

main28800-22040i1KRFE..KSP130201108-201407

46B24L(S),PANASONIC

main28800-47050i1NRFE..NSP130..6F201108-201208

Q-55

sub28800-47051

main28800-47050i1NRFE..NSP130..6F201108-201208

Q-55,GERMANY SPEC

sub28800-47051

main28800-47080i1NRFE..NSP130..CVFC201108-201209

S-85

sub28800-36111

main28800-74261i1KRFE..KSP130201108-201204

46B24L(S),FURUKAWA

sub28800-20060

main28800-74261i1KRFE..KSP130201108-201204

46B24L(S),WITHOUT(STOP & START SYSTEM),FURUKAWA

sub28800-20060

28800ATERMINAL, BATTERY POSITIVE

main90982-05061i1KRFE,1NRFE..KSP130,NSP130201108

28800JTERMINAL, BATTERY NEGATIVE

main90982-06059i1KRFE,1NRFE..KSP130,NSP130201108

28898PLATE, BATTERY

main28898-46020i1KRFE,1NRFE..KSP130,NSP130201108

8401

9415180801

main94151-80801

6 parts on this diagram · 1 diagram in section
