REAR FOG LAMP
8115
81210CBULB, REAR FOG LAMP
12V 21W
12V 21W,HEAD LAMP AIMING-RH TRAFFIC SPEC
81215HSOCKET, REAR FOG LAMP
HEAD LAMP AIMING-RH TRAFFIC SPEC
81401BBRACKET SUB-ASSY, FOG LAMP
81456LENS & BODY, REAR FOG LAMP, LH
HEAD LAMP AIMING-RH TRAFFIC SPEC
81457ALENS & BODY, REAR FOG LAMP, RH
HEAD LAMP AIMING-LH TRAFFIC SPEC
81483HPROTECTOR, REAR FOG LAMP, RH
HEAD LAMP AIMING-LH TRAFFIC SPEC,SUPER WHITE 2,040
SUPER WHITE 2,040
SILVER ME.,1F7
HEAD LAMP AIMING-LH TRAFFIC SPEC,SILVER ME.,1F7
HEAD LAMP AIMING-LH TRAFFIC SPEC,GRAY ME.,1G3
GRAY ME.,1G3
HEAD LAMP AIMING-LH TRAFFIC SPEC,GIN BUCK ME.,1J1
GIN BUCK ME.,1J1
HEAD LAMP AIMING-LH TRAFFIC SPEC,BLACK MC.,209
BLACK MC.,209
HEAD LAMP AIMING-LH TRAFFIC SPEC,SUPER RED 5,3P0
SUPER RED 5,3P0
TURQUOISE M.M.,788
HEAD LAMP AIMING-LH TRAFFIC SPEC,TURQUOISE M.M.,788
HEAD LAMP AIMING-LH TRAFFIC SPEC,LT.BLUE M.M.,8S7
LT.BLUE M.M.,8S7
81484EPROTECTOR, REAR FOG LAMP, LH
SUPER WHITE 2,040
HEAD LAMP AIMING-RH TRAFFIC SPEC,SUPER WHITE 2,040
SILVER ME.,1F7
HEAD LAMP AIMING-RH TRAFFIC SPEC,SILVER ME.,1F7
GRAY ME.,1G3
HEAD LAMP AIMING-RH TRAFFIC SPEC,GRAY ME.,1G3
GIN BUCK ME.,1J1
HEAD LAMP AIMING-RH TRAFFIC SPEC,GIN BUCK ME.,1J1
BLACK MC.,209
HEAD LAMP AIMING-RH TRAFFIC SPEC,BLACK MC.,209
SUPER RED 5,3P0
HEAD LAMP AIMING-RH TRAFFIC SPEC,SUPER RED 5,3P0
HEAD LAMP AIMING-RH TRAFFIC SPEC,TURQUOISE M.M.,788
TURQUOISE M.M.,788
LT.BLUE M.M.,8S7
HEAD LAMP AIMING-RH TRAFFIC SPEC,LT.BLUE M.M.,8S7
9015950311
main90159-50311
9016440096
main90164-40096

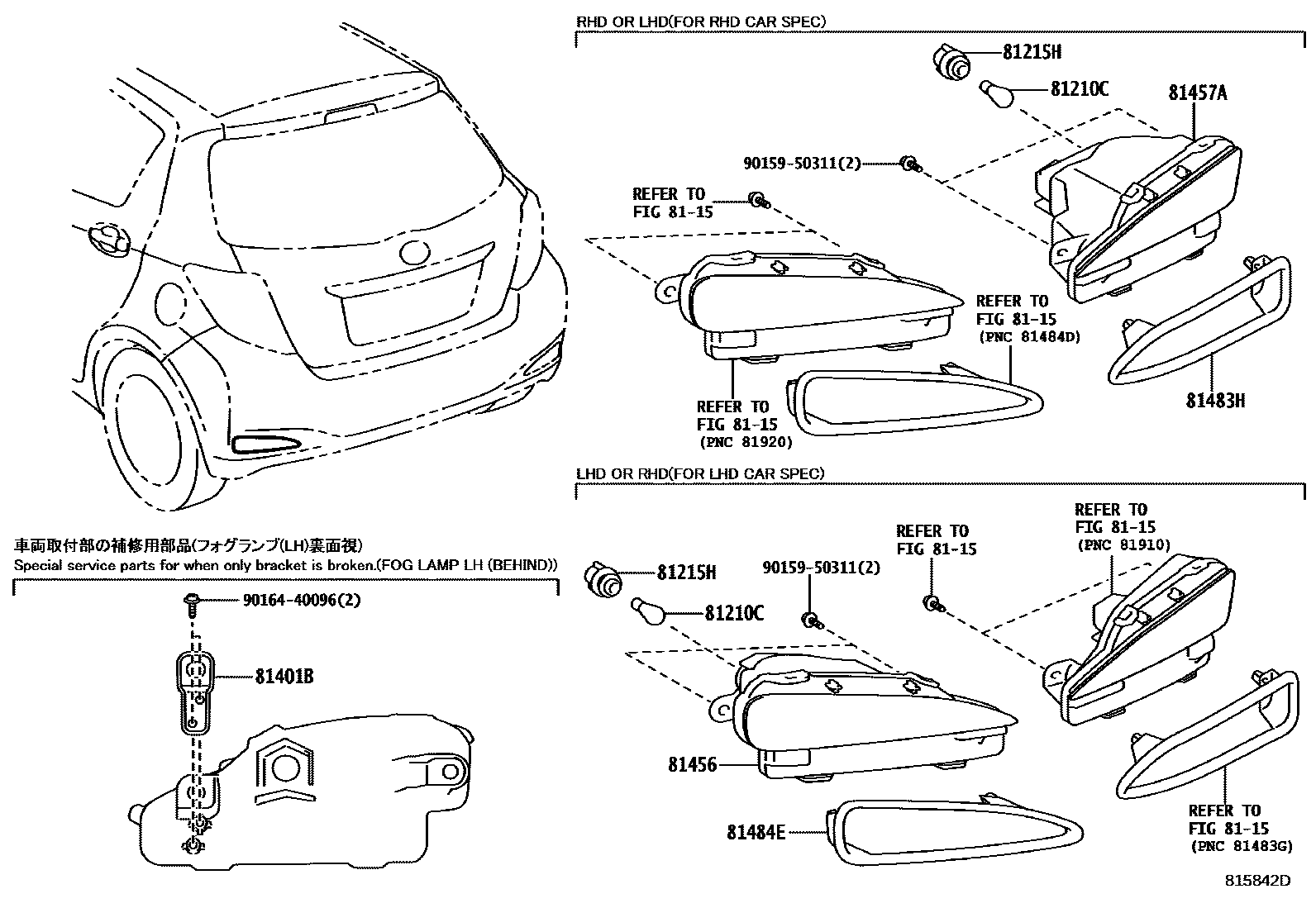

10 parts on this diagram · 1 diagram in section
