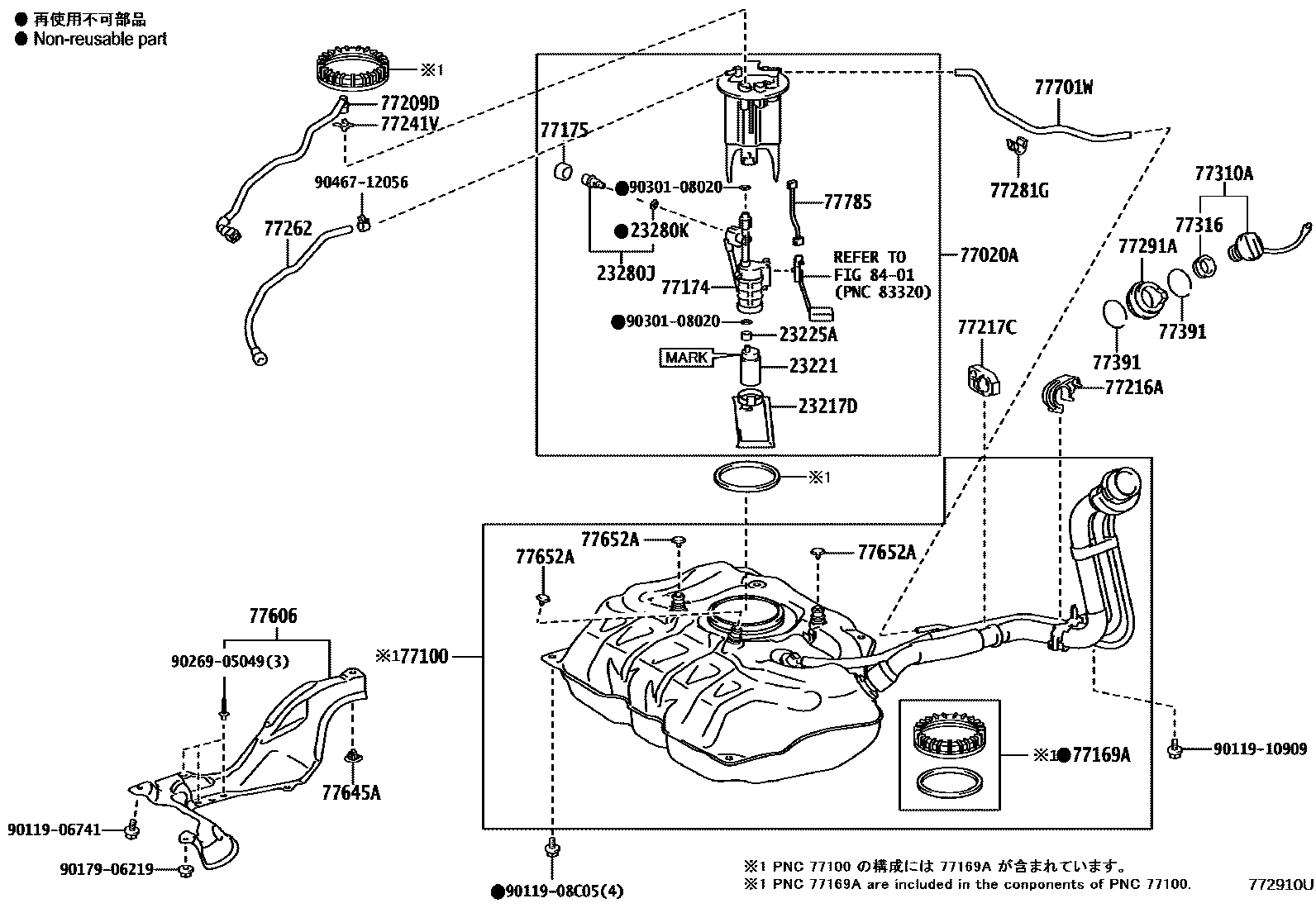

FUEL TANK & TUBE

0001 1FUEL TANK 0002 1FUEL TANK,W/O(INTERFERENCE) 0003 1FUEL TUBE 0004 1FUEL LID OPENER 0005 1FUEL LID OPENER

23217DFILTER, FUEL PUMP

main23217-21010i1KRFE,1NRFE..KSP130,NSP130201108-201407

23221PUMP, FUEL

main23221-47030i1KRFE,1NRFE..KSP130,NSP130201108-201201

MARK 31

sub23221-47031

sub77785-52091

main23221-47031i1KRFE,1NRFE..KSP130,NSP130201201-201407

MARK 71

23225ASPACER, FUEL PUMP

main23225-21020i1KRFE,1NRFE..KSP130,NSP130201108-201407

23280JREGULATOR ASSY, FUEL PRESSURE

main23280-22010i1KRFE,1NRFE..KSP130,NSP130201108-201407

23280KRING, O(FOR FUEL PRESSURE REGULATOR)

main90301-07020i1KRFE,1NRFE..KSP130,NSP130201108-201407

77020ATUBE ASSY, FUEL SUCTION W/PUMP & GAGE

main77020-52420iKSP130,NSP130201108-201205

sub77020-52421

main77020-52421iKSP130,NSP130201206-201407

77100TANK ASSY, FUEL

main77001-52370iKSP130,NSP130201108

77169AGASKET, FUEL SUCTION TUBE SET

main77169-52040iKSP130,NSP130201108

77174SUPPORT, FUEL SUCTION, NO.1

main77174-52040iKSP130,NSP130201108-201407

77175SUPPORT, FUEL SUCTION, NO.2

main77175-52040iKSP130,NSP130201108-201407

77209DTUBE SUB-ASSY, FUEL TANK MAIN

main77209-52170iKSP130,NSP130201108

sub77209-52171

77216ASUPPORT, FUEL TANK FILLER PIPE, NO.1

main77216-12180iKSP130,NSP130201204

main77216-52180iKSP130,NSP130201108-201203

sub77216-12180

77217CSUPPORT, FUEL TANK FILLER PIPE, NO.2

main77217-52080iKSP130,NSP130201108

77241VCLIP, TUBE JOINT

main77241-33011iKSP130,NSP130201108

77262TUBE, FUEL EMISSION, NO.2

main77028-52020iKSP130,NSP130201108

77281GCLAMP, FUEL HOSE

main77281-52040iKSP130,NSP130201108

77291ASHIELD, FUEL TANK FILLER PIPE

main77291-52100iKSP130,NSP130201108

77310ACAP ASSY, FUEL TANK

main77300-52030iKSP130,NSP130201108

77316GASKET, FUEL TANK CAP

main77316-52040iKSP130,NSP130201108

77391RING, FUEL INLET BOX

main77391-12020iKSP130,NSP130201108

77606PROTECTOR SUB-ASSY, FUEL TANK, NO.1

main77606-52090iKSP130,NSP130201108-201407

77645ARETAINER, FUEL TANK PROTECTOR

main77645-52020iKSP130,NSP130201108-201209

main77645-52040iNSP130201210

77652ACUSHION, FUEL TANK, NO.2

main77652-52070iKSP130,NSP130201108

77701WHOSE SUB-ASSY, CANISTER OUTLET, NO.1

main77701-12020iKSP130,NSP130201207

main77701-52020iKSP130,NSP130201108-201207

sub77701-12020

77785HARNESS, FUEL PUMP

main77785-52090iKSP130,NSP130201108-201201

main77785-52091iKSP130,NSP130201201-201407

8401

9011906741

main90119-06741

9011908C05

main90119-08C05

9011910909

main90119-10909

9017906219

main90179-06219

9026905049

main90269-05049

9030108020

main90301-08020

9046712056

main90467-12056

33 parts on this diagram · 5 diagrams in section
