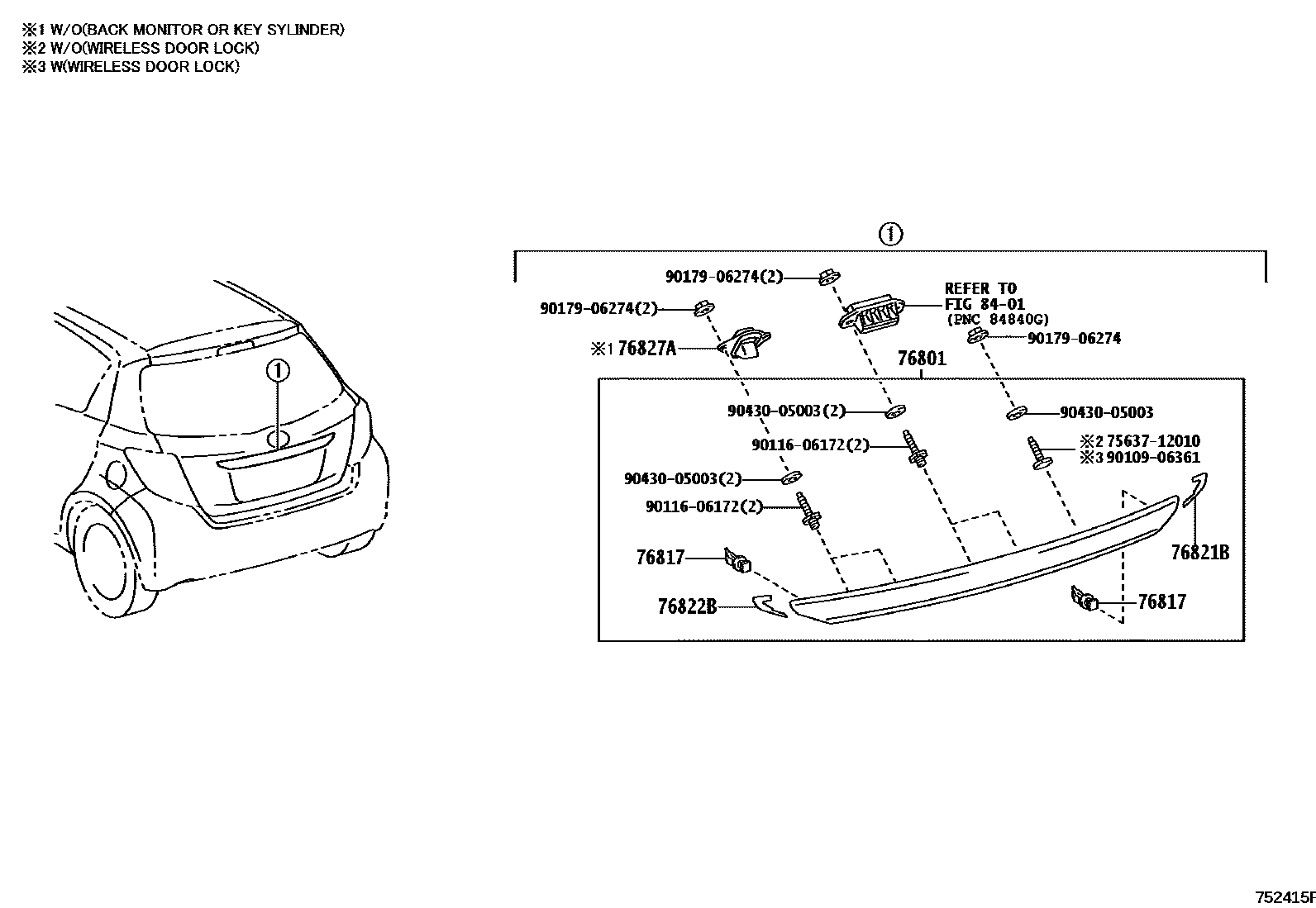

REAR MOULDING
76801GARNISH SUB-ASSY, BACK DOOR, OUTSIDE
NO PAINT REQ.
PLATED,POWER DOOR LOCK-W(*DRS:DOUBLE LOCK),KEY CYLINDER:W(*DRS)
PLATED
76817CLIP, BACK DOOR OUTSIDE GARNISH
76821BPROTECTOR, BACK DOOR GARNISH SIDE, RH
76822BPROTECTOR, BACK DOOR GARNISH SIDE, LH
76827ARETAINER, BACK DOOR GARNISH, NO.2
POWER DOOR LOCK-W(*DRS:DOUBLE LOCK),KEY CYLINDER:W(*DRS)
BACK MONITOR(REAR TELEVISION CAMERA)-WITHOUT
BACK MONITOR(REAR TELEVISION CAMERA)-WITH
8401
7563712010
main75637-12010
9010906361
main90109-06361
9011606172
main90116-06172
9017906274
main90179-06274
9043005003
main90430-05003
11 parts on this diagram · 1 diagram in section
