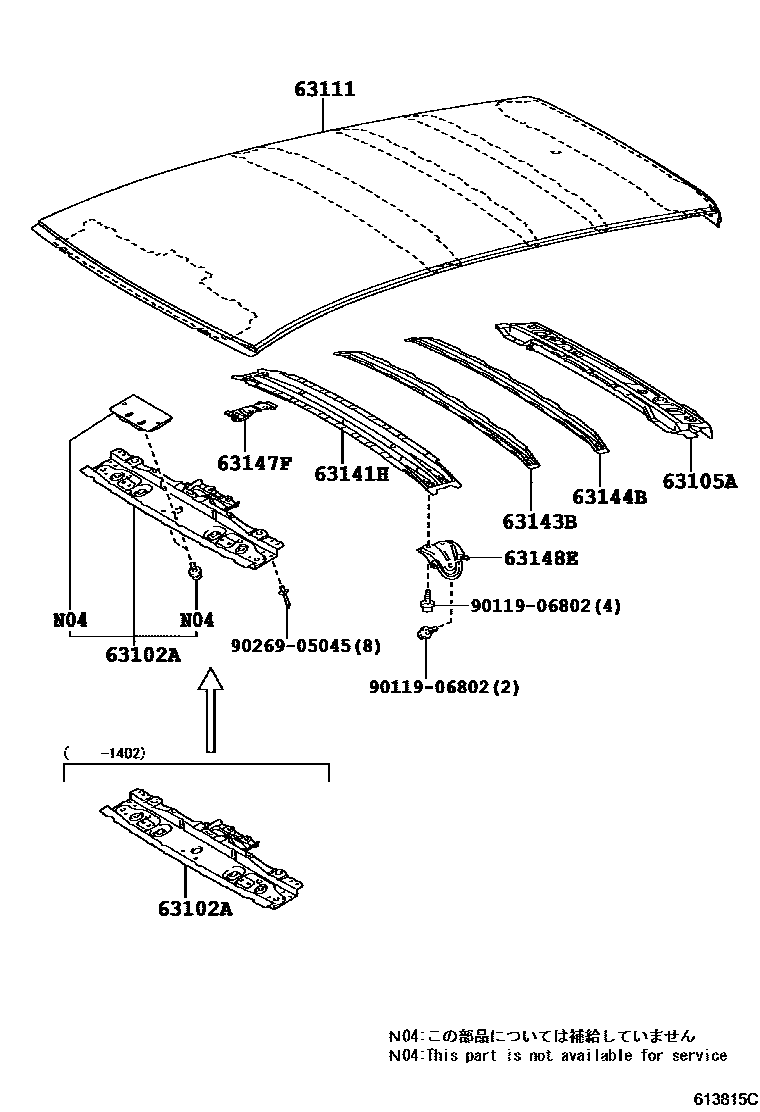

ROOF PANEL & BACK WINDOW GLASS

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-52180iKSP130,NSP130201108-201402

sub63102-52220

main63102-52220iNSP130201403

63105AFRAME SUB-ASSY, BACK DOOR OPENING

main63105-52160iKSP130,NSP130201108

63111PANEL, ROOF

main63111-52380iKSP130,NSP130201108

63141HREINFORCEMENT, ROOF PANEL, CENTER

main63141-52160iKSP130,NSP130201108-201403

sub63141-52161

main63141-52161iNSP130201403

63143BREINFORCEMENT, ROOF PANEL, NO.3

main63143-52170iKSP130,NSP130201108

63144BREINFORCEMENT, ROOF PANEL, NO.4

main63144-52130iKSP130,NSP130201108

63147FBRACKET, ROOF PANEL REINFORCEMENT, RH

main63147-52090iKSP130,NSP130201108

63148EBRACKET, ROOF PANEL REINFORCEMENT, LH

main63147-52090iKSP130,NSP130201108

9011906802

main90119-06802

9026905045

main90269-05045

10 parts on this diagram · 1 diagram in section
