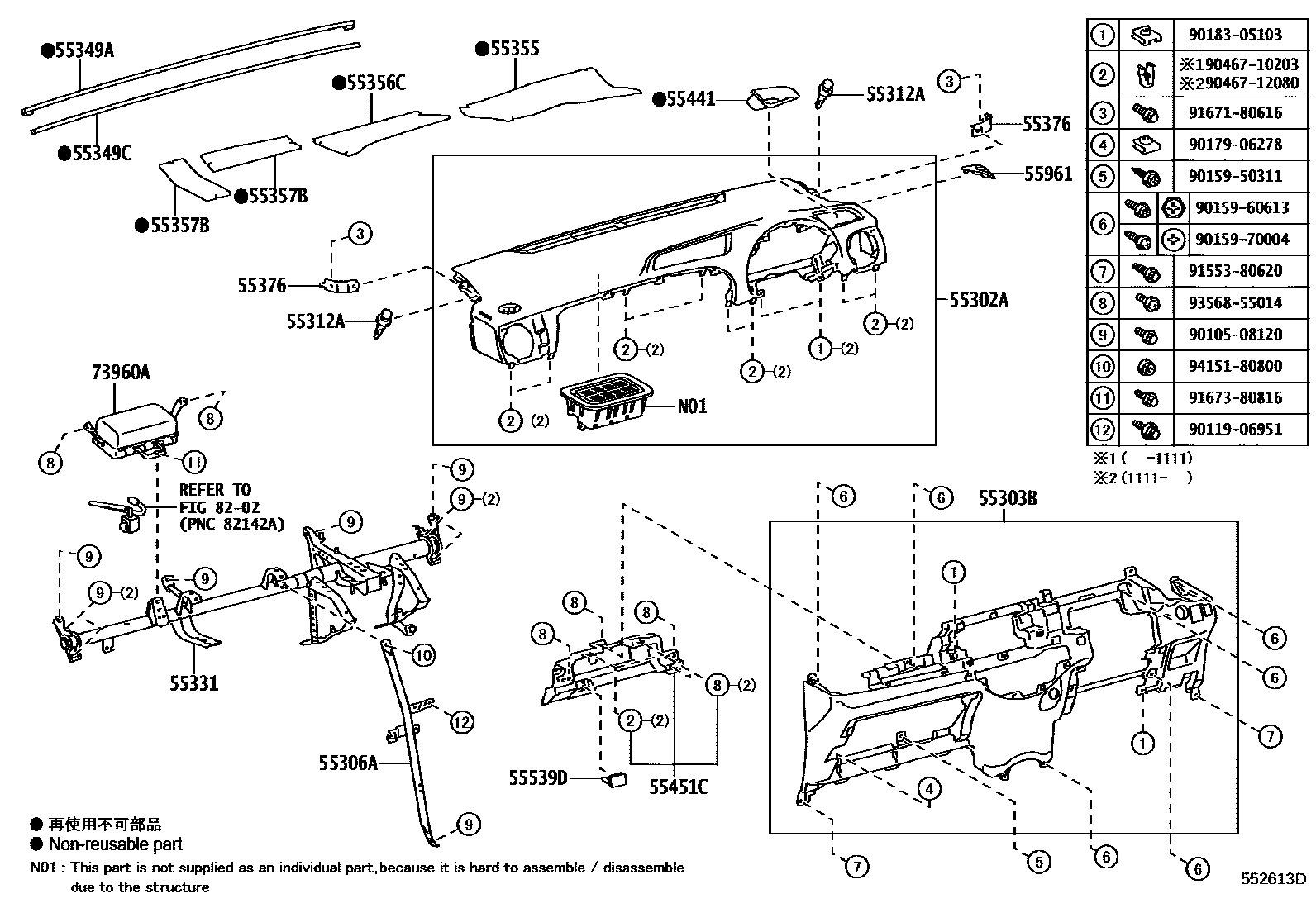

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1DRIVER SIDE 0003 1CENTER 0004 1PASSENGER SIDE 0005 1 0006 1DRIVER SIDE 0007 1CENTER 0008 1PASSENGER SIDE

55302APANEL SUB-ASSY, INSTRUMENT, UPPER

main55302-52130-C0iKSP130,NSP130..LHD201108-201208

BLACK,TRIM1#

main55302-52140-C0iKSP130,NSP130..RHD201108-201407

BLACK,TRIM1#

55303BPANEL SUB-ASSY, INSTRUMENT, LOWER

main55303-52220-C0iKSP130,NSP130..LHD201108-201208

BLACK,TRIM1#

main55303-52240-C0iKSP130,NSP130..RHD201108-201407

BLACK,TRIM1#

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-52260iKSP130,NSP130..RHD201108-201407

sub55306-52420

main55306-52270iKSP130,NSP130..LHD201108-201208

sub55306-52410

55312ACLIP, INSTRUMENT PANEL

main52161-16010iKSP130,NSP130201108

sub52161-0K040

55331REINFORCEMENT, INSTRUMENT PANEL

main55330-52590iKSP130,NSP130..LHD201108-201208

main55330-52640iKSP130,NSP130..RHD201108

55349ACUSHION, INSTRUMENT PANEL

main55349-52140iKSP130,NSP130..LHD201108-201208

sub55349-52141

main55349-52160iKSP130,NSP130..RHD201108-201212

main55349-52161iNSP130201301

55349CCUSHION, INSTRUMENT PANEL

main55349-52150iKSP130,NSP130..LHD201108-201208

sub55349-52151

main55349-52170iKSP130,NSP130..RHD201108-201212

main55349-52171iNSP130201301

55355CUSHION, INSTRUMENT PANEL, NO.1

main55355-52180iKSP130,NSP130201108-201402

sub55355-52181

main55355-52181iNSP130201403-201407

55356CCUSHION, INSTRUMENT PANEL, NO.2

main55356-52190iKSP130,NSP130201108-201402

sub55356-52191

main55356-52191iNSP130201403-201407

55357BCUSHION, INSTRUMENT PANEL, NO.3

main55357-52160iKSP130,NSP130201108-201402

sub55357-52161

main55357-52161iNSP130201403-201407

55376BRACKET, INSTRUMENT PANEL MOUNTING, NO.1

main55376-52110iKSP130,NSP130201108

55441BOX, INSTRUMENT PANEL

main55441-52160-C0iKSP130,NSP130..LHD201108-201208

BLACK,TRIM1#

main55441-52170-C0iKSP130,NSP130..RHD201108-201407

BLACK,TRIM1#

55451CBOX, INSTRUMENT PANEL, NO.1

main55451-52180-C0iKSP130,NSP130..LHD201108-201208

BLACK,TRIM1#

main55451-52200-C0iKSP130,NSP130..RHD201108-201407

BLACK,TRIM1#

55539COVER, SPARE SWITCH HOLE

main55539-52070-C0iKSP130,NSP130201108-201407

BLACK,TRIM1#

sub55539-52070

55539DCOVER, SPARE SWITCH HOLE

main55539-52070-C0iNSP130..RHD201204-201208

AUDIO(FOR OVERSEAS MARKET)-RADIO LESS 4SPEAKER,BLACK,TRIM1#

sub55539-52070

main55539-52070-C0iNSP130201208-201407

BLACK,TRIM1#

sub55539-52070

main55539-52070-C0iNSP130201108-201407

AUDIO-RADIO LESS & 6SPEAKER,BLACK,TRIM1#

sub55539-52070

55961NOZZLE, SIDE DEFROSTER, NO.1

main55961-52010-C0iKSP130,NSP130..LHD201108-201208

BLACK,TRIM1#

main55961-52020-C0iKSP130,NSP130..RHD201108-201407

BLACK,TRIM1#

73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR

main73960-52150iKSP130,NSP130201108-201301

sub73960-52151

main73960-52151iNSP130201302

sub73960-52370

8202

9010508120

main90105-08120

9011906951

main90119-06951

9015950311

main90159-50311

9015960613

main90159-60613

9015970004

main90159-70004

9017906278

main90179-06278

9018305103

main90183-05103

9046710203

main90467-10203

9046712080

main90467-12080

9155380620

main91553-80620

9167180616

main91671-80616

9167380816

main91673-80816

9356855014

main93568-55014

9415180800

main94151-80800

32 parts on this diagram · 8 diagrams in section
