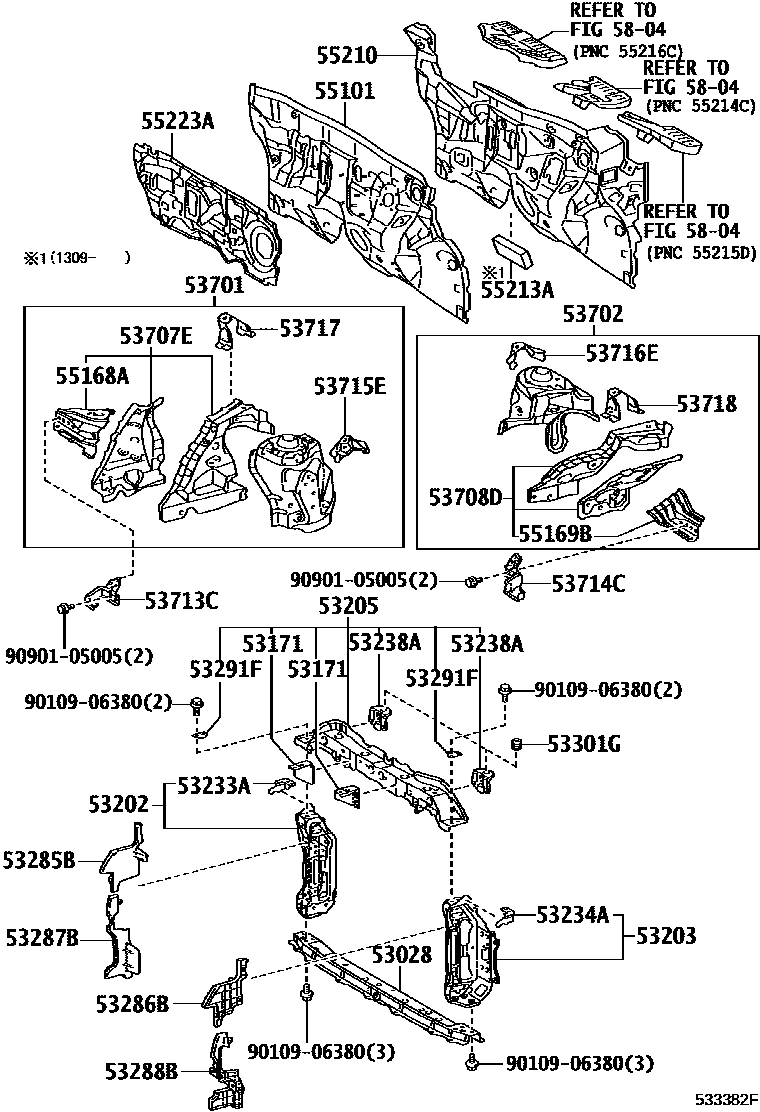

FRONT FENDER APRON & DASH PANEL

0001 1 0002 1

53028SUPPORT SUB-ASSY, RADIATOR, LOWER

main53028-52070iKSP130,NSP130¥9,900201108

53171RETAINER, RADIATOR SUPPORT

main53171-52030iKSP130,NSP130¥1,540201108

RH

main53171-52070iKSP130,NSP130¥810201108

LH

53202SUPPORT SUB-ASSY, RADIATOR, RH

main53202-52908iKSP130,NSP130¥7,700201108

53203SUPPORT SUB-ASSY, RADIATOR, LH

main53203-52906iKSP130,NSP130¥7,700201108

53205SUPPORT SUB-ASSY, RADIATOR, UPPER

main53205-52904iKSP130,NSP130¥9,300201108-201307

sub53205-52907¥9,300

main53205-52907iNSP130¥9,300201308

53233ABRACKET, HEADLAMP, NO.1 RH

main53233-52050iKSP130,NSP130¥1,090201108

53234ABRACKET, HEADLAMP, NO.1 LH

main53234-52060iKSP130,NSP130¥1,090201108

53238ABRACKET, HOOD BUMPER MOUNTING

main53238-52030iKSP130,NSP130¥900201108

53285BSEAL, RADIATOR SIDE AIR, NO.1

main53285-52350iKSP130,NSP130¥940201108

53286BSEAL, RADIATOR SIDE AIR, NO.2

main53286-52290iKSP130,NSP130¥940201108

53287BEXTENSION, RADIATOR SUPPORT, RH

main53287-52130iKSP130,NSP130¥2,170201108

53288BEXTENSION, RADIATOR SUPPORT, LH

main53288-52130iKSP130,NSP130¥1,930201108

53291FPLATE, RADIATOR SUPPORT

main53291-52070iKSP130,NSP130¥300201108

53301GCUSHION, HOOD BUMPER

main53384-50010iKSP130,NSP130¥340201108-201407

53701APRON SUB-ASSY, FRONT FENDER, RH

main53701-52190iKSP130,NSP130¥21,300201108-201407

53702APRON SUB-ASSY, FRONT FENDER, LH

main53702-52190iKSP130,NSP130¥21,300201108-201407

53707EAPRON SUB-ASSY, FENDER SIDE, RH

main53707-52030iKSP130,NSP130¥11,500201108-201110

main53707-52060iKSP130,NSP130¥7,900201110

53708DAPRON SUB-ASSY, FENDER SIDE, LH

main53708-52030iKSP130,NSP130¥11,500201108-201110

main53708-52060iKSP130,NSP130¥7,100201110

53713CEXTENSION, FRONT FENDER APRON, FRONT RH

main53713-52070iKSP130,NSP130¥1,330201108

53714CEXTENSION, FRONT FENDER APRON, FRONT LH

main53714-52080iKSP130,NSP130¥1,610201108

sub53714-52100¥1,340

53715EEXTENSION, FRONT FENDER APRON, REAR RH

main53715-52030iKSP130,NSP130¥670201108

53716EEXTENSION, FRONT FENDER APRON, REAR LH

main53716-52030iKSP130,NSP130¥750201108

53717PLATE, FENDER APRON, RH

main53717-52110iKSP130,NSP130¥670201108

53718PLATE, FENDER APRON, LH

main53718-52110iKSP130,NSP130¥670201108

55101PANEL SUB-ASSY, DASH

main55101-52481iNSP130..RHD..CVFC201108-201308

main55101-52490iKSP130,NSP130..LHD..MTM¥20,300201108-201208

main55101-52500iNSP130..LHD..CVFC¥12,700201108-201208

main55101-52521iNSP130¥11,500201308-201407

55168ABRACKET, FRONT FENDER MOUNTING, RH

main55168-52130iKSP130,NSP130¥1,320201108

55169BBRACKET, FRONT FENDER MOUNTING, LH

main55169-52130iKSP130,NSP130¥1,320201108

55210INSULATOR ASSY, DASH PANEL

main55210-52310iKSP130,NSP130..RHD¥12,100201108

main55210-52320iKSP130,NSP130..LHD201108-201208

55213APAD, DASH PANEL SILENCER

main55213-52190iNSP130¥210201309

55223AINSULATOR, DASH PANEL, OUTER

main55223-52100iKSP130,NSP130..RHD..R¥6,200201108-201208

sub55223-52101¥3,850

main55223-52110iKSP130,NSP130..LHD..R201108-201208

main55223-52120iKSP130,NSP130..RHD..ACTV¥8,500201108-201307

sub55223-52121¥5,300

main55223-52121iNSP130¥5,300201308

main55223-52130iKSP130,NSP130..LHD..ACTV¥6,000201108-201208

5804

9010906380

main90109-06380¥60

9090105005

main90901-05005¥90

33 parts on this diagram · 2 diagrams in section
