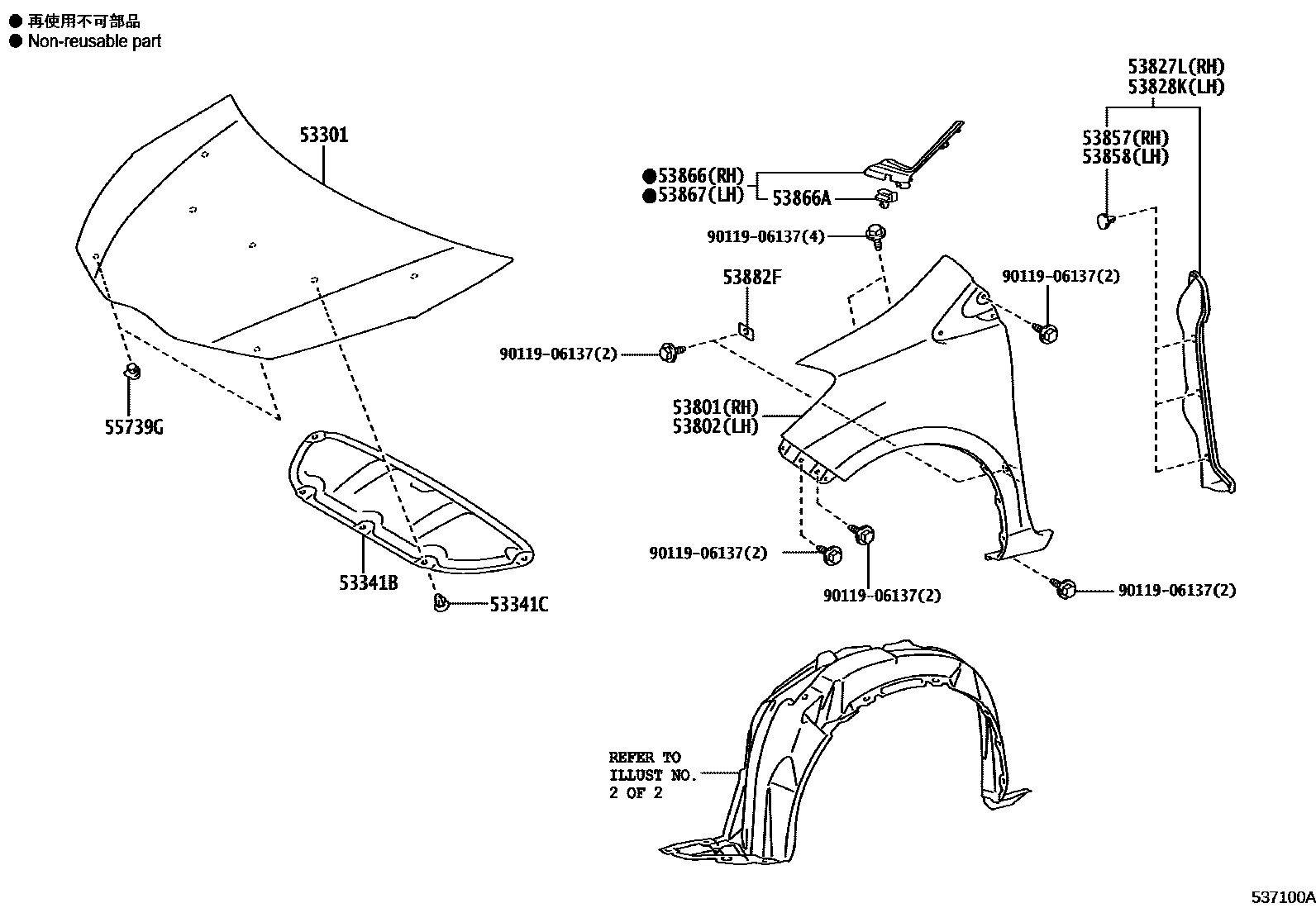

HOOD & FRONT FENDER

0001 1 0002 1FENDER LINER

53301HOOD SUB-ASSY

main53301-52310iKSP130,NSP130201108-201407

53341BINSULATOR, HOOD

main53341-52180iKSP130,NSP130201108

53341CCLIP(FOR HOOD INSULATOR)

main90467-09050iKSP130,NSP130201108

53801FENDER SUB-ASSY, FRONT RH

main53811-52390iKSP130,NSP130201108-201407

53802FENDER SUB-ASSY, FRONT LH

main53812-52360iKSP130,NSP130201108-201407

53827LPROTECTOR, FRONT FENDER SIDE PANEL, RH

main53827-52150iKSP130,NSP130201108

53828KPROTECTOR, FRONT FENDER SIDE PANEL, LH

main53828-52160iKSP130,NSP130201108

53857RETAINER, FRONT WHEEL OPENING EXTENSION, RH

main53857-47011iKSP130,NSP130201108

53858RETAINER, FRONT WHEEL OPENING EXTENSION, LH

main53857-47011iKSP130,NSP130201108

53866SEAL, FRONT FENDER TO COWL SIDE, RH

main53866-52090iKSP130,NSP130201108

53866ACLIP(FOR FRONT FENDER TO COWL SIDE SEAL)

main55799-52020iKSP130,NSP130201108

53867SEAL, FRONT FENDER TO COWL SIDE, LH

main53867-52090iKSP130,NSP130201108

53882FSEAL, FRONT FENDER

main53882-16030iKSP130,NSP130201108

55739GSTOPPER, HOOD

main55738-52060iKSP130,NSP130201108

9011906137

main90119-06137

15 parts on this diagram · 2 diagrams in section
