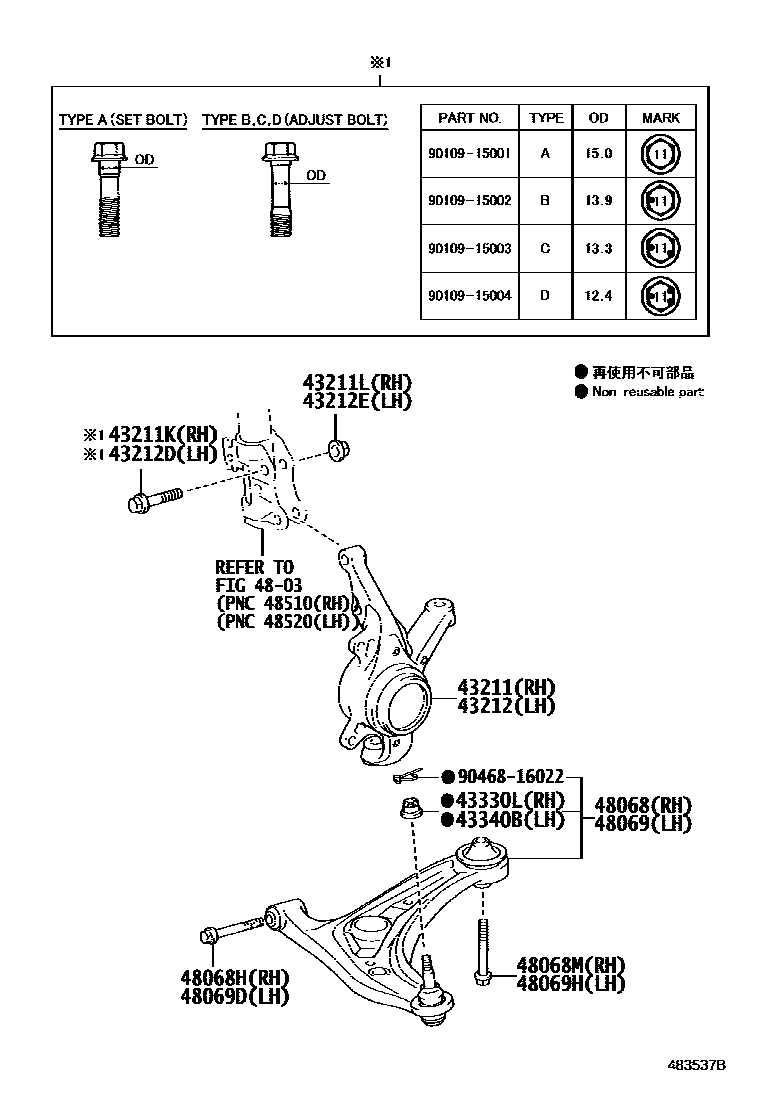

FRONT AXLE ARM & STEERING KNUCKLE

43211KNUCKLE, STEERING, RH

main43211-52050iKSP130,NSP130201108-201407

43211KBOLT (FOR STEERING KNUCKLE RH)

main90109-15001iKSP130,NSP130201108-201407

OD=15,TYPE A:REFER ILLUST.

main90109-15002iKSP130,NSP130201108-201407

OD=13.9,TYPE B:REFER ILLUST.

main90109-15003iKSP130,NSP130201108-201407

OD=13.3,TYPE C:REFER ILLUST.

main90109-15004iKSP130,NSP130201108-201407

OD=12.4,TYPE D:REFER ILLUST.

43211LNUT (FOR STEERING KNUCKLE RH)

main90179-15004iKSP130,NSP130201108-201407

43212KNUCKLE, STEERING, LH

main43212-52050iKSP130,NSP130201108-201407

43212DBOLT (FOR STEERING KNUCKLE LH)

main90109-15001iKSP130,NSP130201108-201407

OD=15,TYPE A:REFER ILLUST.

main90109-15002iKSP130,NSP130201108-201407

OD=13.9,TYPE B:REFER ILLUST.

main90109-15003iKSP130,NSP130201108-201407

OD=13.3,TYPE C:REFER ILLUST.

main90109-15004iKSP130,NSP130201108-201407

OD=12.4,TYPE D:REFER ILLUST.

43212ENUT (FOR STEERING KNUCKLE LH)

main90179-15004iKSP130,NSP130201108-201407

43330LNUT, CASTLE (FOR FRONT LOWER BALL JOINT RH)

main90171-12007iKSP130,NSP130201108

43340BNUT, CASTLE (FOR FRONT LOWER BALL JOINT LH)

main90171-12007iKSP130,NSP130201108

4803

48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH

main48068-59145iKSP130,NSP130201108

48068HBOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 RH)

main90119-14086iKSP130,NSP130201108

48068MBOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 RH)

main90119-14144iKSP130,NSP130201108-201211

main90119-14151iNSP130201212-201407

48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH

main48069-59135iKSP130,NSP130201108

48069DBOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 LH)

main90119-14086iKSP130,NSP130201108

48069HBOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 LH)

main90119-14144iKSP130,NSP130201108-201211

main90119-14151iNSP130201212-201407

9046816022

main90468-16022

16 parts on this diagram · 1 diagram in section
