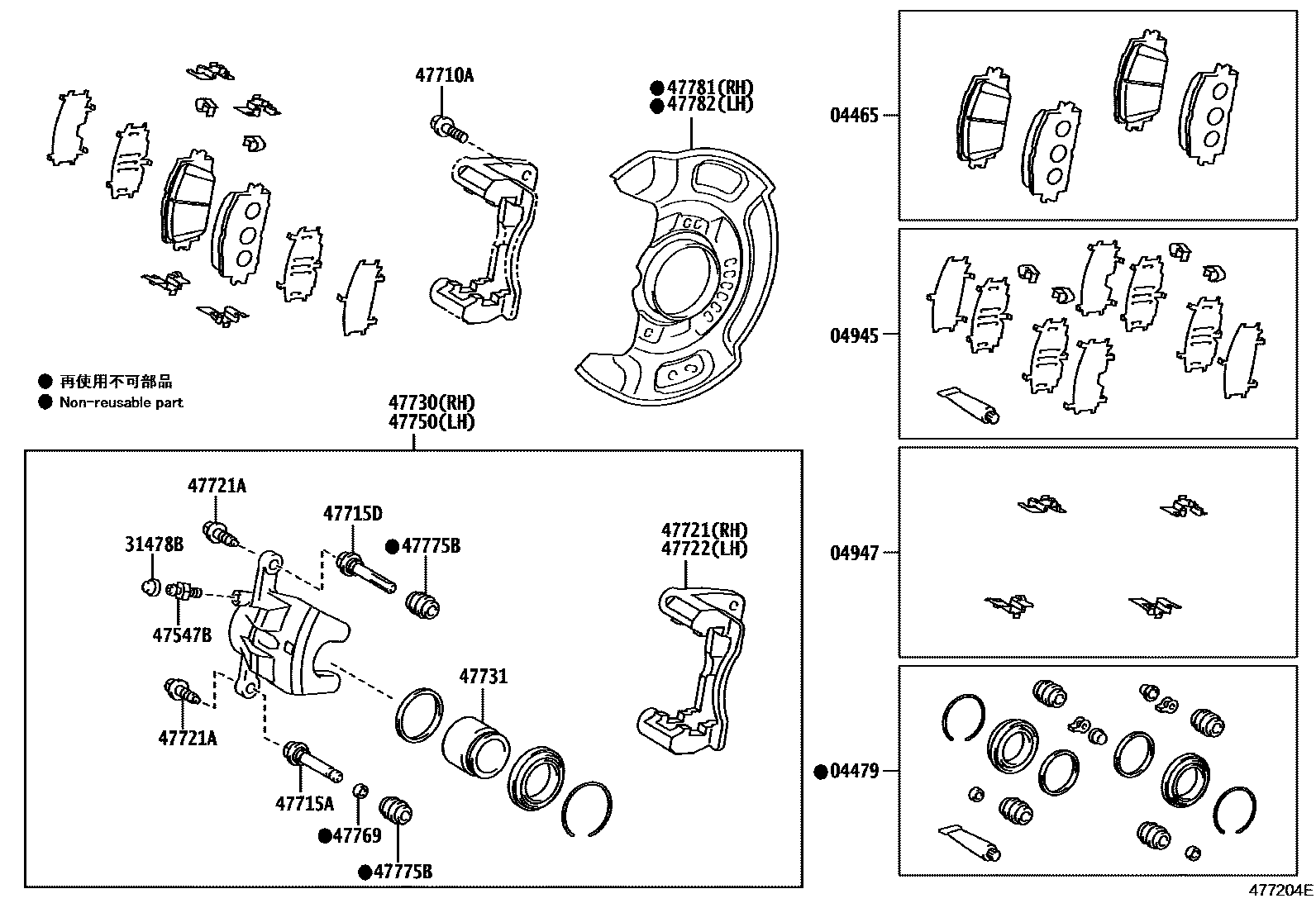

FRONT DISC BRAKE CALIPER & DUST COVER

04465PAD KIT, DISC BRAKE, FRONT

main04465-52200iKSP130¥0201108-201208

MARK ADVICS PC553H

main04465-52270iNSP130¥10,400201108

MARK ADVICS PC553H

04479CYLINDER KIT, DISC BRAKE, FRONT

main04478-52070iKSP130¥1,800201108-201208

main04478-52100iNSP130¥1,800201108

04945SHIM KIT, ANTI SQUEAL, FRONT

main04945-52140iKSP130¥0201108-201208

main04945-52150iNSP130¥2,950201108

04947FITTING KIT, DISC BRAKE, FRONT

main04947-42050iKSP130,NSP130¥2,080201108

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010iKSP130,NSP130¥160201108

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-20010iKSP130,NSP130¥200201108

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90105-12208iKSP130,NSP130¥160201108-201407

*12-1.25PX29.5-23

47715APIN, FRONT DISC BRAKE CYLINDER SLIDE

main47715-12A10iKSP130,NSP130¥360201108

47715DPIN, FRONT DISC BRAKE CYLINDER SLIDE, NO.2

main47715-52190iKSP130,NSP130¥360201108

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-52191iKSP130¥4,130201108-201208

main47721-52211iNSP130¥4,130201108

47721ABOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)

main90105-08164iKSP130,NSP130¥90201108

*8-1.00PX23-15

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47722-52191iKSP130¥4,130201108-201208

main47722-52211iNSP130¥4,130201108

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-52191iKSP130¥44,400201108-201208

main47730-52211iNSP130¥28,000201108

47731PISTON, FRONT DISC BRAKE

main47731-52190iKSP130¥670201108-201208

main47731-52210iNSP130¥670201108

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-52191iKSP130¥44,400201108-201208

main47750-52211iNSP130¥28,000201108

47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)

main47769-50010iKSP130,NSP130¥50201108

47775BBOOT, BUSH DUST, NO.1

main47775-52190iKSP130,NSP130¥210201108-201407

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-52030iKSP130,NSP130¥1,050201108-201407

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-52030iKSP130,NSP130¥1,050201108-201407

19 parts on this diagram · 1 diagram in section
