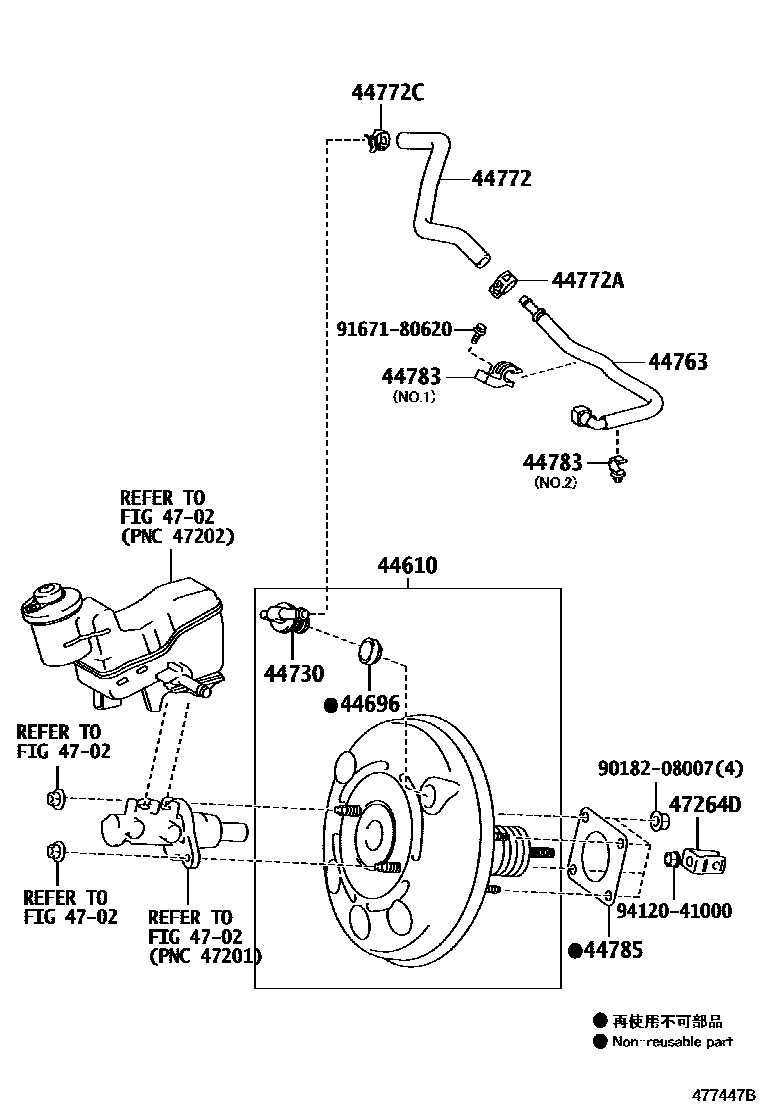

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1 0003 1 0004 1

44610BOOSTER ASSY, BRAKE

main44610-52A90iKSP130..RHD201108-201208

main44610-52B50iKSP130..LHD201108-201208

main44610-52E40iNSP130..LHD..CVFC201108-201208

main44610-52E60iNSP130..LHD..6F201108-201208

main44610-52E70iNSP130¥46,600201208-201407

WITHOUT(STOP & START SYSTEM)&REAR WHEEL BRAKE-DISC

main44610-52E70iNSP130¥46,600201208-201407

WITHOUT(STOP & START SYSTEM)

main44610-52E70iNSP130¥46,600201208-201407

WITHOUT(STOP & START SYSTEM)&REAR WHEEL BRAKE-DISC&VSC-WITHOUT

main44610-52E80iNSP130..RHD..ACTV201108-201208

WITHOUT(STOP & START SYSTEM)&REAR WHEEL BRAKE-DISC&VSC-WITHOUT

main44610-52E80iNSP130..RHD201108-201208

WITHOUT(STOP & START SYSTEM)

main44610-52E80iNSP130..RHD..CVFC201108-201208

WITHOUT(STOP & START SYSTEM)&REAR WHEEL BRAKE-DISC

44696GROMMET, CHECK VALVE

main90480-24439iNSP130..RHD..CVFC¥390201108-201407

WITHOUT(STOP & START SYSTEM)&REAR WHEEL BRAKE-DISC

main90480-24439iNSP130..RHD..CVFC¥390201108-201407

WITHOUT(STOP & START SYSTEM)&REAR WHEEL BRAKE-DISC&VSC-WITHOUT

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-20170iNSP130..RHD..ACTV¥1,310201108

WITHOUT(STOP & START SYSTEM)

main44730-20170iKSP130,NSP130..RHD¥1,310201108

WITHOUT(STOP & START SYSTEM)&REAR WHEEL BRAKE-DISC

main44730-20170iKSP130,NSP130..RHD¥1,310201108

WITHOUT(STOP & START SYSTEM)&REAR WHEEL BRAKE-DISC&VSC-WITHOUT

main44730-60070iKSP130,NSP130..LHD¥1,300201108-201208

44763TUBE, BOOSTER VACUUM

main44763-52040iKSP130..RHD¥700201108-201208

main44763-52130iKSP130..LHD201108-201208

44772HOSE, CHECK VALVE TO CONNECTOR TUBE

main44772-52130iKSP130..RHD201108-201208

main44772-52160iKSP130..LHD201108-201208

44772ACLIP(FOR CHECK VALVE TO CONNECTOR TUBE)

main96133-41500iKSP130¥140201108-201208

44772CCLIP(FOR CHECK VALVE TO BRAKE BOOSTER HOSE)

main90467-16014iKSP130¥230201108-201208

44783CLAMP, VACUUM HOSE

main44783-52070iKSP130..LHD¥230201108-201208

NO.1:REFER ILLUST.

main44783-70010iKSP130201108-201208

NO.2:REFER ILLUST.

main44783-70020iKSP130..RHD201108-201208

NO.1:REFER ILLUST.

44785GASKET, BRAKE BOOSTER

main44785-16020iKSP130,NSP130¥220201108

4702

47264DCLEVIS, BRAKE MASTER CYLINDER PUSH ROD

main47264-52040iNSP130..RHD..ACTV¥210201108

WITHOUT(STOP & START SYSTEM)

main47264-52040iKSP130,NSP130¥210201108

WITHOUT(STOP & START SYSTEM)&REAR WHEEL BRAKE-DISC

main47264-52040iKSP130,NSP130¥210201108

WITHOUT(STOP & START SYSTEM)&REAR WHEEL BRAKE-DISC&VSC-WITHOUT

9018208007

main90182-08007¥100

9167180620

main91671-80620¥60

9412041000

main94120-41000¥80

14 parts on this diagram · 4 diagrams in section
