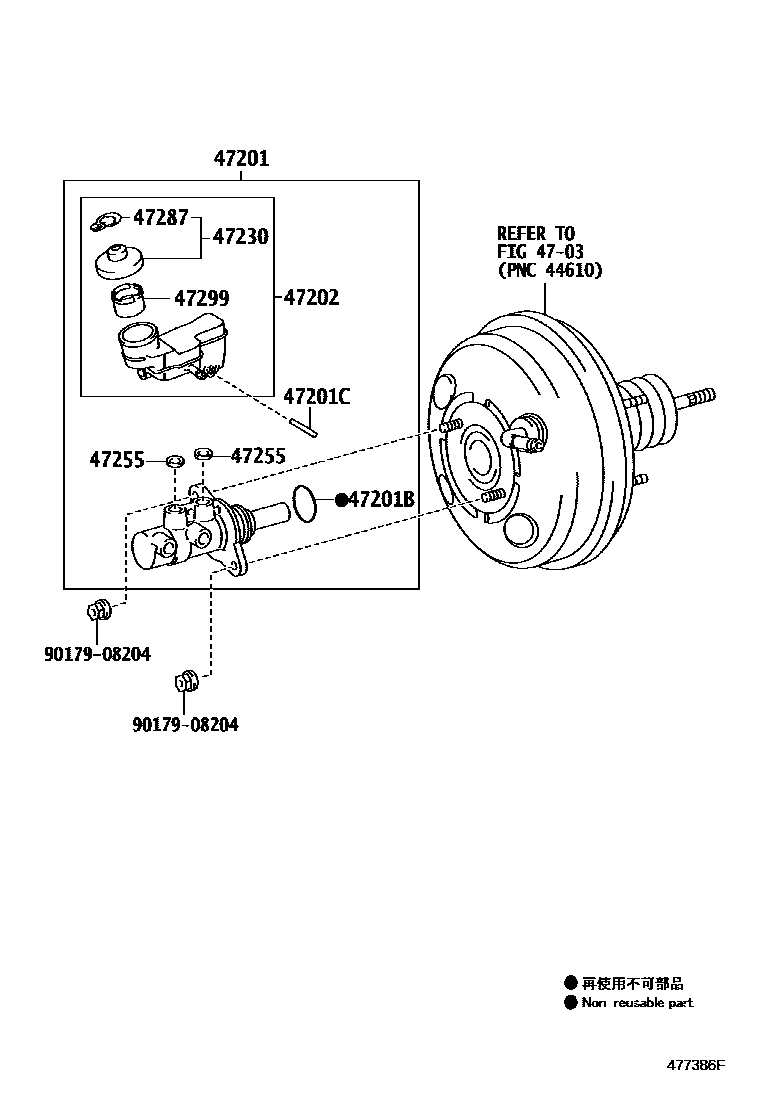

BRAKE MASTER CYLINDER

0001 1RHD 0002 1LHD

4703

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-52490iNSP130..RHD201108-201203

sub47201-52491

main47201-52491iNSP130..RHD201204-201205

sub47201-52492

main47201-52492iNSP130..RHD201205-201407

main47201-52590iKSP130..RHD201108-201208

main47201-52620iKSP130..LHD201108-201208

main47201-52650iNSP130..LHD..6F201108-201203

sub47201-52651

main47201-52651iNSP130..LHD..6F201204-201205

sub47201-52652

main47201-52652iNSP130..LHD..6F201205-201208

main47201-52680iNSP130..LHD..CVFC201108-201203

sub47201-52681

main47201-52681iNSP130..LHD..CVFC201204-201205

sub47201-52682

main47201-52682iNSP130..LHD..CVFC201205-201208

47201BRING, O(FOR BRAKE MASTER CYLINDER)

main90015-AH002iNSP130..RHD..ACTV201108

WITHOUT(STOP & START SYSTEM)&REAR WHEEL BRAKE-DISC

main90015-AH002iNSP130..RHD..ACTV201108

WITHOUT(STOP & START SYSTEM)&REAR WHEEL BRAKE-DISC&VSC-WITHOUT

main90015-AH002iKSP130,NSP130201108

WITHOUT(STOP & START SYSTEM)

47201CRING PIN, BRAKE MASTER CYLINDER

main90029-15803iNSP130..RHD..ACTV201108

WITHOUT(STOP & START SYSTEM)

main90029-15803iKSP130,NSP130201108

WITHOUT(STOP & START SYSTEM)&REAR WHEEL BRAKE-DISC

main90029-15803iKSP130,NSP130201108

WITHOUT(STOP & START SYSTEM)&REAR WHEEL BRAKE-DISC&VSC-WITHOUT

47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

main47220-52260iNSP130201208-201407

WITHOUT(STOP & START SYSTEM)

main47220-52260iNSP130..RHD..ACTV201108-201407

WITHOUT(STOP & START SYSTEM)&REAR WHEEL BRAKE-DISC

main47220-52260iNSP130..RHD..ACTV201108-201407

WITHOUT(STOP & START SYSTEM)&REAR WHEEL BRAKE-DISC&VSC-WITHOUT

main47220-52270iNSP130..LHD..CVFC201108-201208

main47220-52280iKSP130,NSP130..LHD..MTM201108-201208

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-20140iNSP130..RHD..CVFC201108

WITHOUT(STOP & START SYSTEM)&REAR WHEEL BRAKE-DISC&VSC-WITHOUT

main47230-20140iKSP130,NSP130201108

WITHOUT(STOP & START SYSTEM)

main47230-20140iKSP130,NSP130201108

WITHOUT(STOP & START SYSTEM)&REAR WHEEL BRAKE-DISC

47255GROMMET, MASTER CYLINDER RESERVOIR

main90029-48001iKSP130,NSP130201108

WITHOUT(STOP & START SYSTEM)

sub90016-AT001

main90029-48001iKSP130,NSP130201108

WITHOUT(STOP & START SYSTEM)&REAR WHEEL BRAKE-DISC

sub90016-AT001

main90029-48001iKSP130,NSP130201108

WITHOUT(STOP & START SYSTEM)&REAR WHEEL BRAKE-DISC&VSC-WITHOUT

sub90016-AT001

47287LABEL, BRAKE FLUID INFORMATION

main47287-20010iKSP130,NSP130201108

WITHOUT(STOP & START SYSTEM)

main47287-20010iKSP130,NSP130201108

WITHOUT(STOP & START SYSTEM)&REAR WHEEL BRAKE-DISC

main47287-20010iKSP130,NSP130201108

WITHOUT(STOP & START SYSTEM)&REAR WHEEL BRAKE-DISC&VSC-WITHOUT

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-25010iKSP130,NSP130201108

WITHOUT(STOP & START SYSTEM)

main47299-25010iKSP130,NSP130201108

WITHOUT(STOP & START SYSTEM)&REAR WHEEL BRAKE-DISC

main47299-25010iKSP130,NSP130201108

WITHOUT(STOP & START SYSTEM)&REAR WHEEL BRAKE-DISC&VSC-WITHOUT

9017908204

main90179-08204

10 parts on this diagram · 2 diagrams in section
