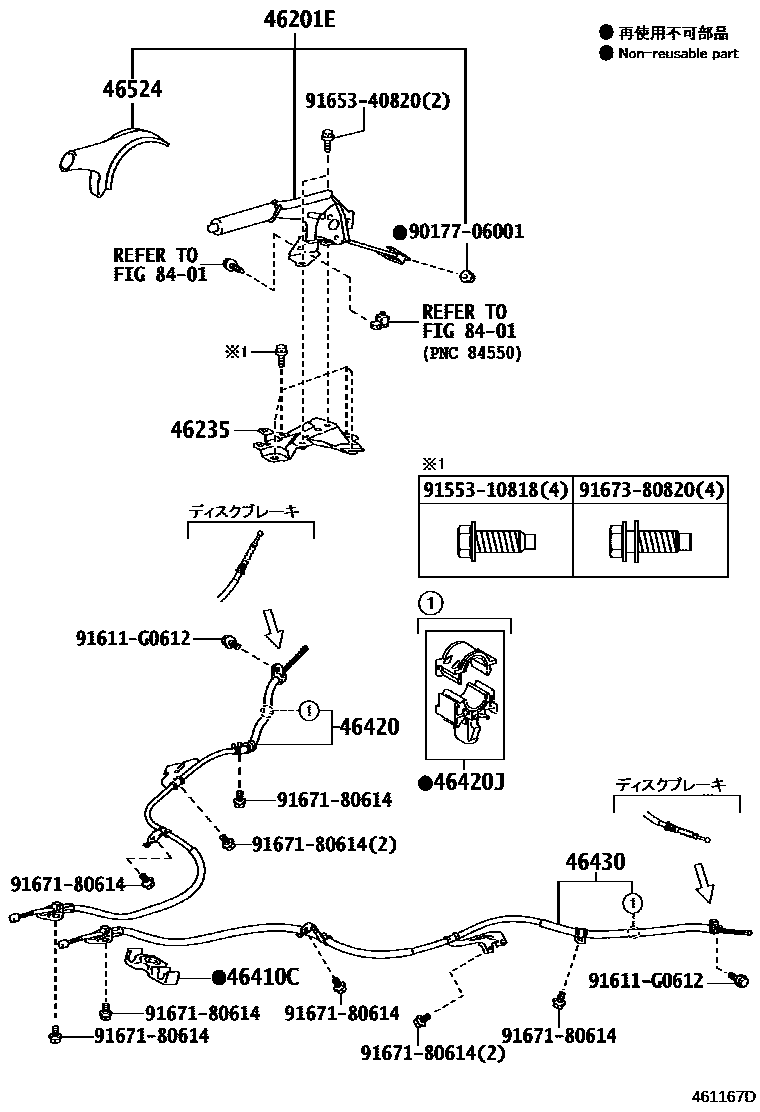

PARKING BRAKE & CABLE

46201ELEVER SUB-ASSY, PARKING BRAKE

main46201-52130-C0iKSP130,NSP130..R201108-201208

BLACK,TRIM1#

main46201-52140-C0iKSP130,NSP130..ACTV201108-201407

BLACK,TRIM1#

46235BRACKET, PARKING BRAKE LEVER SUPPORT

main46235-52040iKSP130,NSP130201108

46410CCLAMP(FOR PARKING BRAKE FRONT CABLE)

main46411-52030iKSP130,NSP130201108

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-52380iKSP130201108-201208

main46420-52400iNSP130201108-201407

46420JCLAMP, NO.3(FOR PARKING BRAKE CABLE)

main46402-52030iKSP130,NSP130201108

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-52370iKSP130201108-201208

main46430-52390iNSP130201108-201407

46524COVER, PARKING BRAKE DUST

main46524-52050-C0iKSP130,NSP130201108-201407

BLACK,TRIM1#

sub46524-52051

8401

9017706001

main90177-06001

9155310818

main91553-10818

91611G0612

main91611-G0612

9165340820

main91653-40820

9167180614

main91671-80614

9167380820

main91673-80820

14 parts on this diagram · 1 diagram in section
